Introducing the new RJS-SDE-2

Product

QUICK LINKS: View RJS-SDE-2

Let us introduce the RJS-SDE-2, our multipurpose programmable navigation switch.  The RJS-SDE2 will immediately replace the RJS-SDE. All the best parts of the RJS-SDE but better…

This versatile rotary switch with a full colour TFT display and push button, is specifically designed to provide reliable and efficient switching for a variety of applications, ranging from audio equipment to automotive and beyond.

The RJS-SDE-2 rotary switch boasts a robust and compact design that guarantees optimal performance. Additionally, it comes with 36 optical rotation pulse with physical feedback

One outstanding attribute of the RJS-SDE-2 rotary switch is it supports Raspberry Pi for easy programming.

With all the existing features:

Full colour LCD display

TFT LCD display is programmable with SPI Interface and Raspberry Pi.

IP65 Rated

IP65 (from the front) dust and water proof rating

RJS-SDE2, bigger LCD screen, 36 pulses, 360 rotary encoder, push button, push to select, 240 x 240 px, full colour, programmable switch, RJS Electronics Ltd

360° Rotary Encoder

with a centre push button to select function.

Low profile

Low profile switch 0.5mm +/-0.3mm

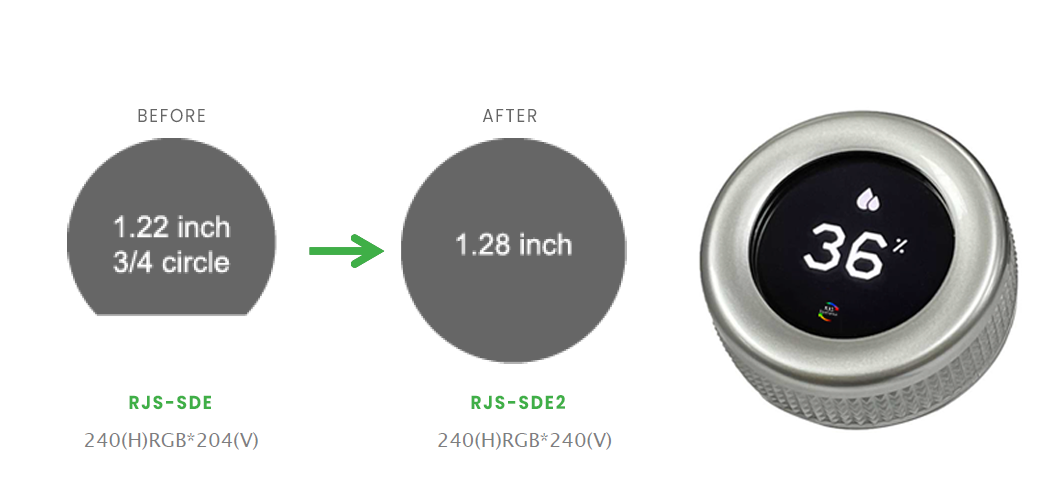

But Bigger...

Multi-functional and multi-purpose push button to select, rotary encoder, LCD display screen, colour screen, 360 rotation, IP67 rated, RJS Electronics Ltd

The full colour TFT LCD screen has upgraded from 1.22 inch ( 3/4 circle) to a 1.28 inch.

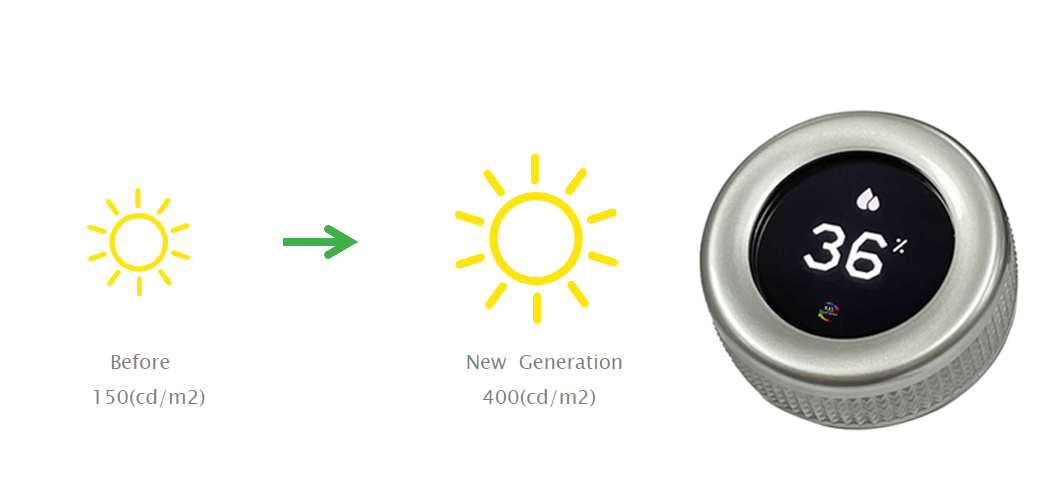

Brighter...

Multi-functional and multi-purpose push button to select, rotary encoder, LCD display screen, colour screen, 360 rotation, IP67 rated, RJS Electronics Ltd

To compliment the bigger screen, we’ve made the backlight brighter from 150 (cd/m2) to 400 (cd/m2).



Multi-functional and multi-purpose push button to select, rotary encoder, LCD display screen, colour screen, 360 rotation, IP67 rated, RJS Electronics Ltd

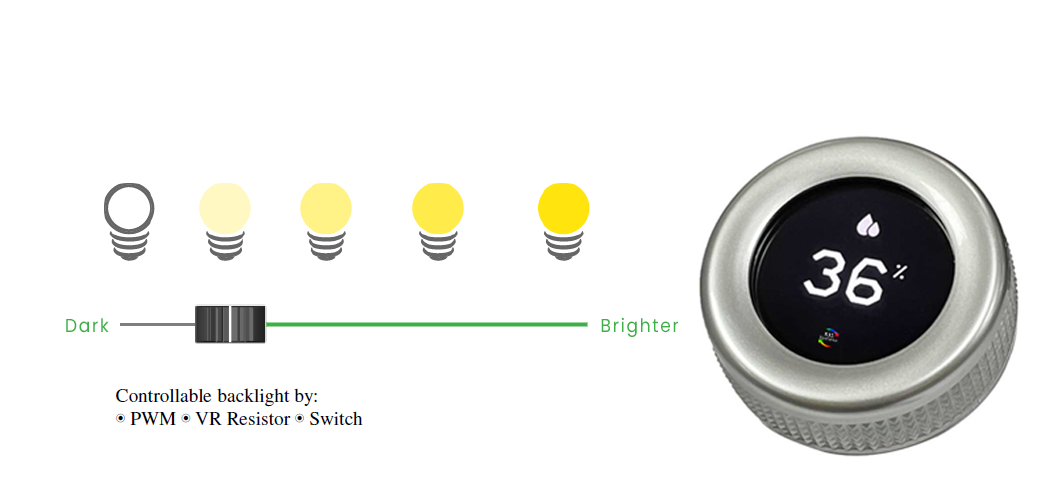

And we are putting you in control.

Control how bright you would like the backlight.

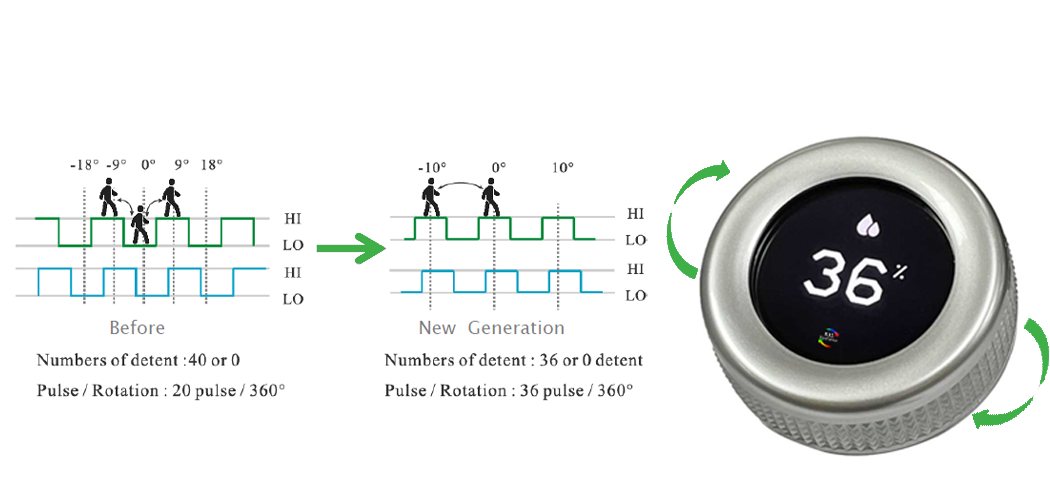

Better...

Added benefit of an Encoder synchronised with feedback.

Upgraded Specifications

Modify Programme

RJS-SDE

RJS-SDE2







LCD Resolution

240 x 204 px

240 x 240 px

Encode Signal

20 pulse / 360°

36 pulse / 360°







In sum, the RJS-SDE-2 is a top-of-the-line rotary switch that delivers dependable and flexible performance, making it an excellent choice for those looking for a high-quality and long-lasting solution. Consider the RJS-SDE-2 rotary switch for your next project and experience the unbeatable benefits first hand.
