pcb led illuminated push button switches available at RJS Electronics ltd

PCB Illuminated Switches

show blocks helper

IP Rating
IP Rating Dust & Water Proof Rating / Ingress Rating

  • IP67 (front)

Panel Cut-out

# of NO Contacts

  • 1
  • 2

# of NC Contacts

  • 1
  • 2

What is a Push Button Switch?
A pushbutton switch (push switches) are devices that are pushed to make or break an electrical circuit. Or to put simply, an object you push to make a device do or stop something. These come in all shapes and sizes, with a multitude of options.

PCB Push button switches?

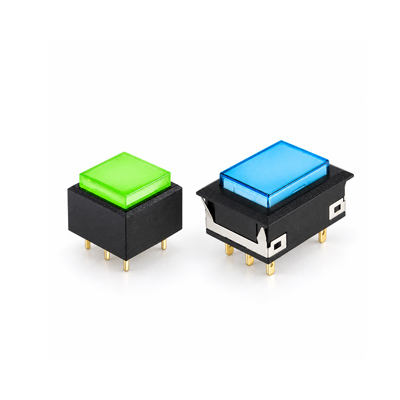

A PCB switch is a switch that is directly mounted onto a PCB (Printed Circuit Board). Surface mount PCB switches (SMD/SMT) are designed to sit flat, directly on top of a PCB. Through-hole or ‘thru-hole’ PCB switches are inserted into a drilled hole on the printed circuit boards and soldered to pads on the opposite side.

LED Illumination Options?

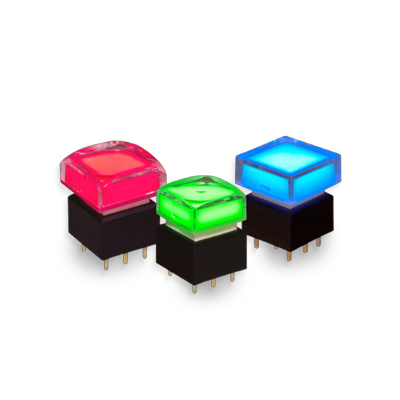

RJS supplies illuminated PCB push switches. We supply a wide range of LED illumination options including single, bi-colour, dual colour or RGB LED illumination. How the illumination is displayed also varies. Variations include;

•Ring illumination
•Dot illumination
•Custom text/symbol illumination
•Full illumination
