2A-VS2-DPDT

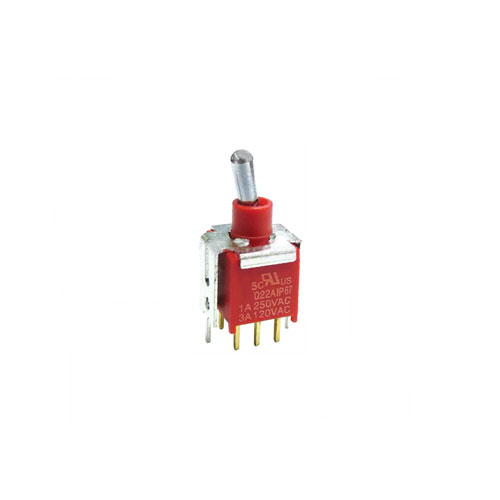

This Sub-Miniature PCB Toggle Switch has DPDT terminals and a vertical bracket mounting. It is IP67 rated against water and dust and can have a 2 or 3 position function.

Key Features:

  • Sealed sub-miniature toggle switch
  • Vertical bracket mounting
  • DPDT
  • 2 or 3 positions
  • Contact rating up to 3A
  • IP67 rated
  • Full 2A Series

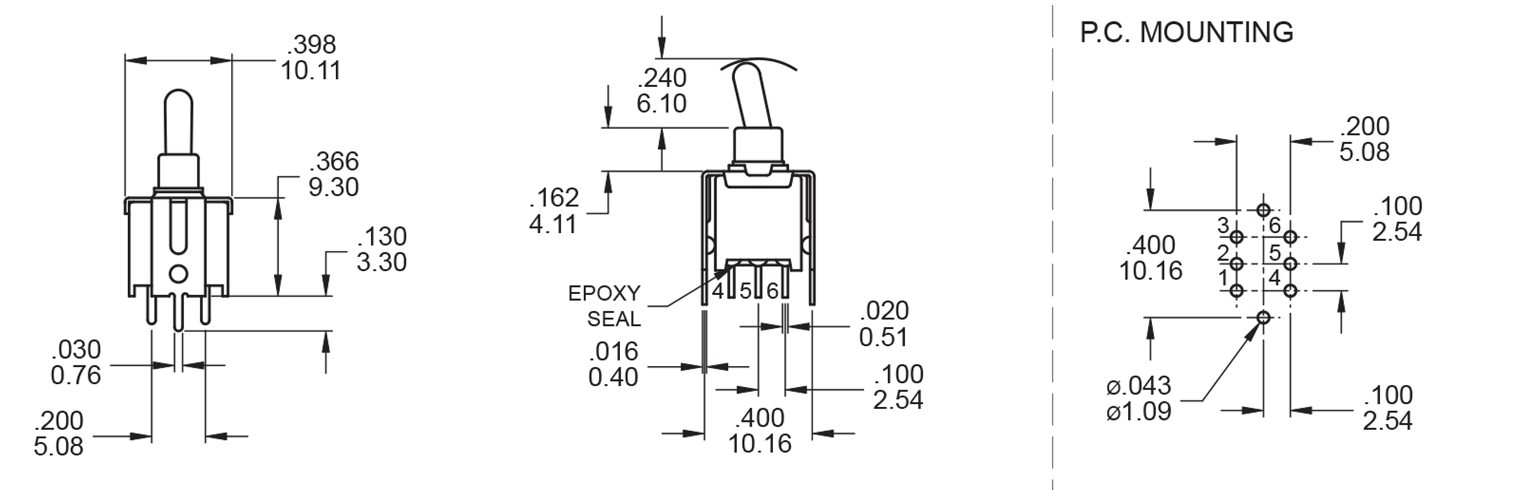

Data Sheet
Function

IP Rating

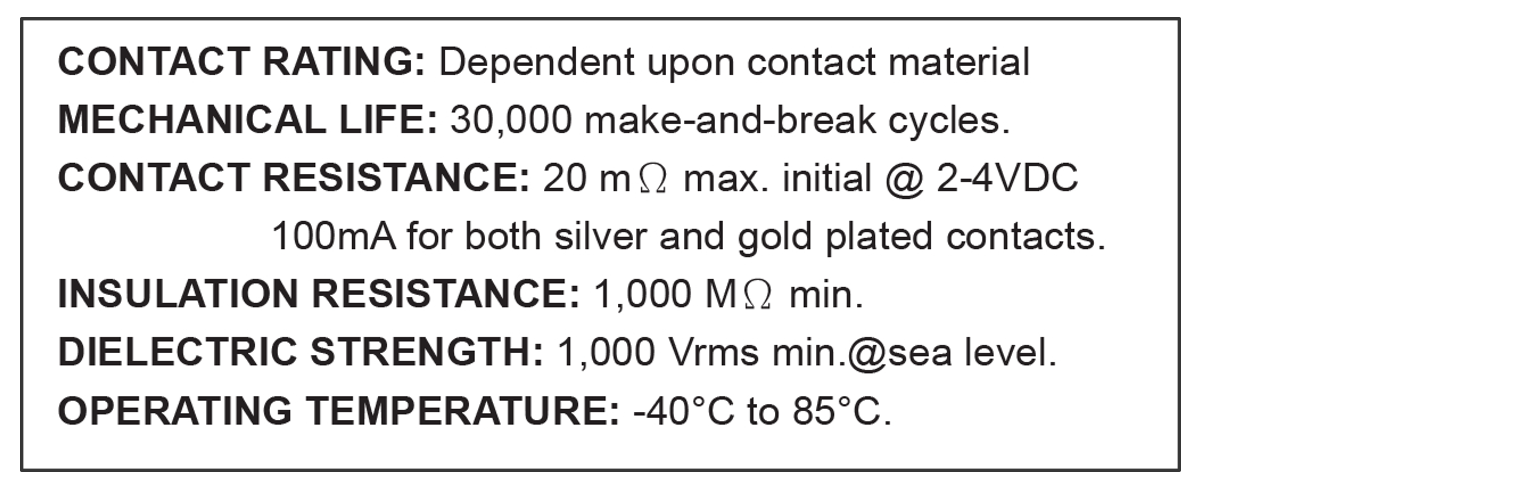

Mechanical Operations

Product Series
