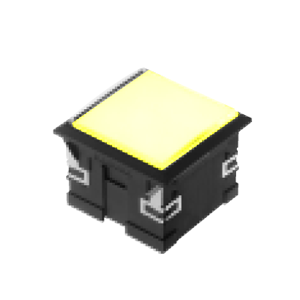

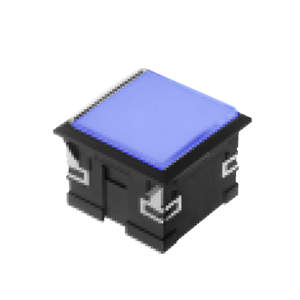

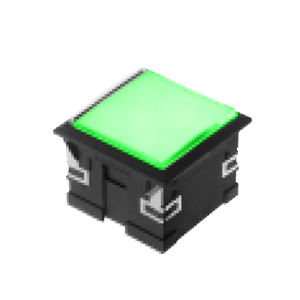

This LED Indicator features a 30mm square cap and connector-type mounting. It can support single, bi-colour or negative LED illumination in a full-face or split-face style.
Key Features:
| Bezel Shape | |
|---|---|
| Function | |
| Depth (mm) | |
| Illumination | |
| Single LED options | |
| Split Face LED Options | Red/Yellow, Green, Blue/Green, White |
| Multi-Colour LED Options | |
| Supply Voltage | DC5V, 12V, 24V, 48V |
| Insulation Resistance | More than 100MΩ at 500V DC |
| Dielectric Strength | 200V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity) |
| Terminal Options | |
| Product Series |
3L Series specifications
| Insulation resistance | More than 100MΩ at 500V DC |
| Dielectric strength | 2000V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity) |
| Ambient temperature | -10°C~+40°C |
| Ambient humidity | 45~80% RH |
