| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |

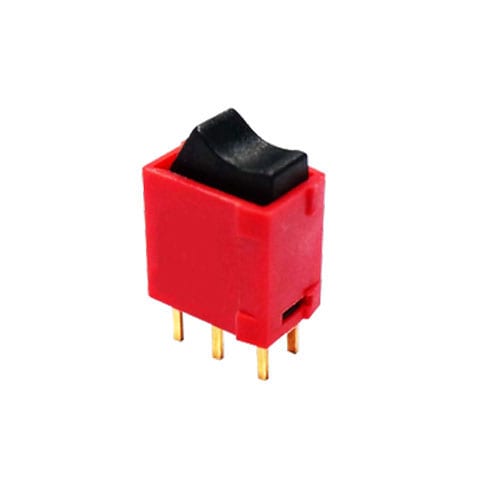

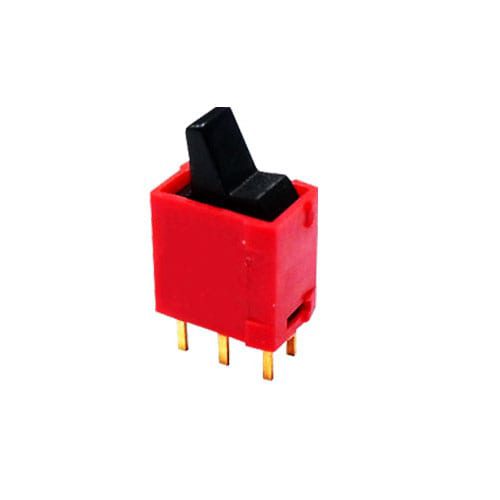

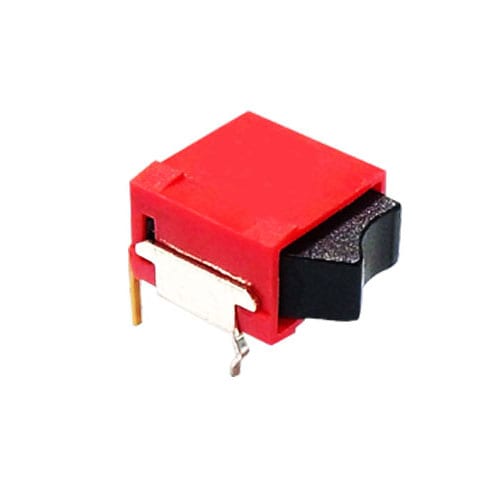

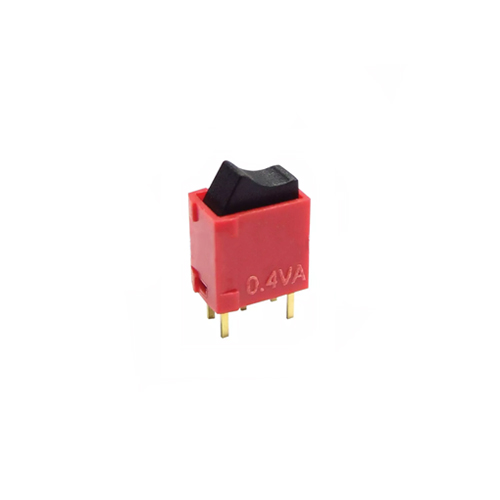

This Ultra-miniature Rocker Switch series features a latching function and an SPDT or DPDT configuration. Available with vertical or right-angle PCB mounting.
Key Features:
| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |
