| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Product Series | |
| Configuration |

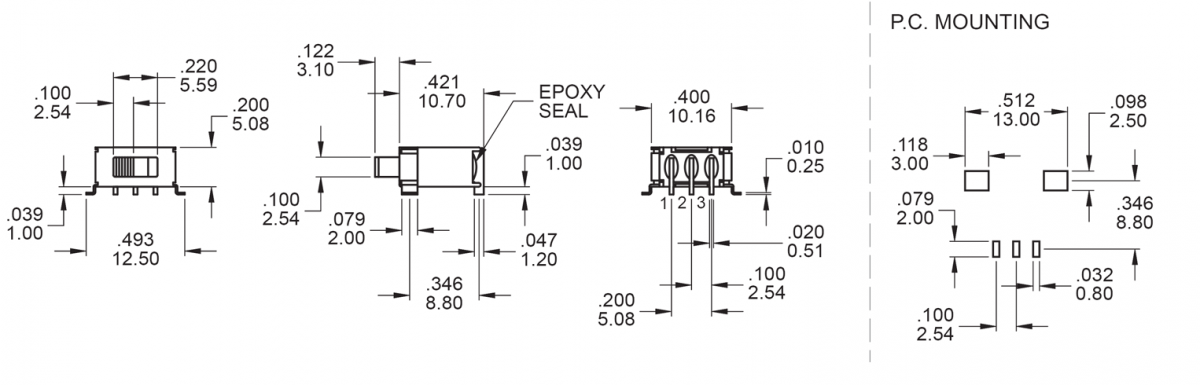

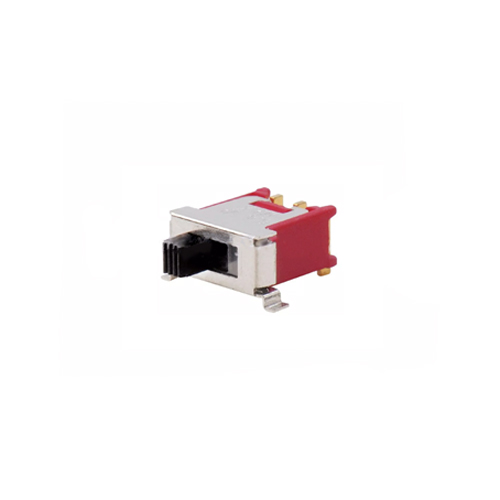

This Sub-miniature Slide Switch has surface mount PCB mounting and an SPDT configuration. Available with 2 or 3 position function and a contact rating up to 3A.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Product Series | |
| Configuration |
| Contact rating | Dependent upon contact material |
| Mechanical life | 30,000 make-and-break cycles |
| Contact resistance | 20mΩ max initial. @2-4VDC
100mA for both silver and gold plated contacts |
| Insulation resistance | 1,000 MΩ min |
| Dielectric strength | 1,000 vms min @sea level |
| Operating temperature | -30°C to 85°C |
