PCB, RELAY, Automotive Flasher. Automotive Relays, Communication Relays, Connectors & bases, general purpose and heavy duty relays.

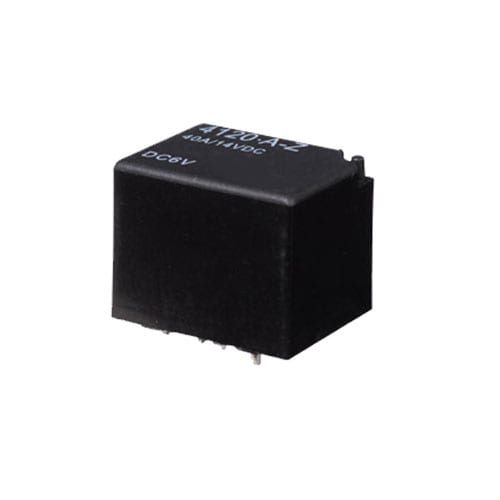

4120(JQC-4) - Image 2

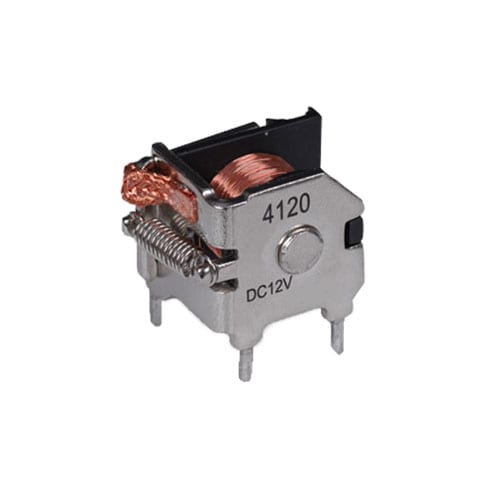

4120(JQC-4)

Relay

Small size, heavy contact load, capable of standing strong current of 45A at 14VDC.
PC board mounting.
Both European 11 mm pole distance and American 8mm pole distance are available.

Applications:

Automation/Central Control units
Automotive applications

Additional information

Function	Relay
Contact Arrangement	1A (SPSTNO) 18 (SPSTNC) 1C (SPDT(B-M))
Contact Rating (resistive)	1A: 45A/14VDC; 1 B:30A/14VDC; 1C:30N120VAC, 14VDC, 15N28VDC;NO:40A/14VDC;NC:30A/14VDC;
Max. Switching Power	630W 3600VA
Max. Switching Voltage	75VDC 380VAC Max. Switching Current:45A
Contact Resistance or Voltage drop	<30mQ
Electrical Operations	100000 (10^5)
Mechanical Operations	10000000 (10^7)
Sizing (mm)	Dust Covered 26.8 X 21.5 X 22.3 Open Type 24 X 19 X 20
