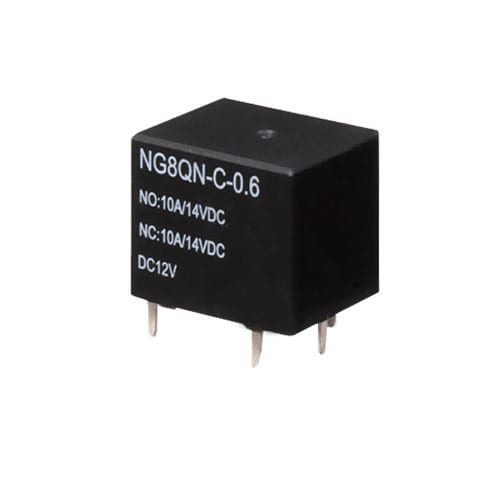

NG8QN

Automotive Relay

• Small size, lightweight.
• Low coil consumption.
• PC board mounting.

Suitable for:

Function	Relay
Contact Arrangement	1C (SPDT(B-M)) ,1U (SPSTNODM) ,2C (DPDT) ,2U (DPSTNODM
Contact Rating (resistive)	15A, 20A/14VDC inrush current 30A (L/R=7mS; 15mS max)
Max. Switching Power	280W
Max. Switching Voltage	16VDC Max. Switching Current:20A
Contact Resistance or Voltage drop	<100mΩ 250mV(at10A)
Mechanical Operations	10000000 (10^7)
Electrical Operations	100000 (10^5)
Sizing (mm)	16.0 X 12.5 X 14.4
