| Function | |
|---|---|
| Illumination | |
| Single LED options | |
| Split Colour LED Options | red, green/yellow |
| 3 Colour LED Options | Red, Green, Yellow |
| Product Series |

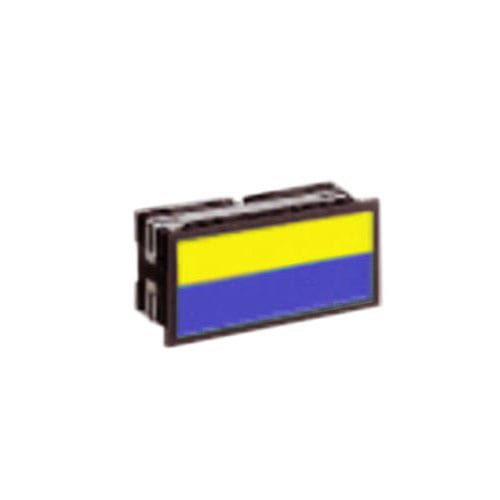

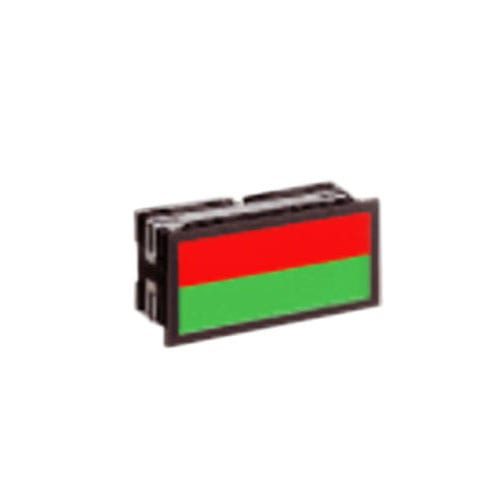

This LED Indicator features a flat rectangular cap and a connector-type terminal. It can support full-face, split-face (vertical or horizontal), negative or 3-colour LED illumination.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Single LED options | |
| Split Colour LED Options | red, green/yellow |
| 3 Colour LED Options | Red, Green, Yellow |
| Product Series |

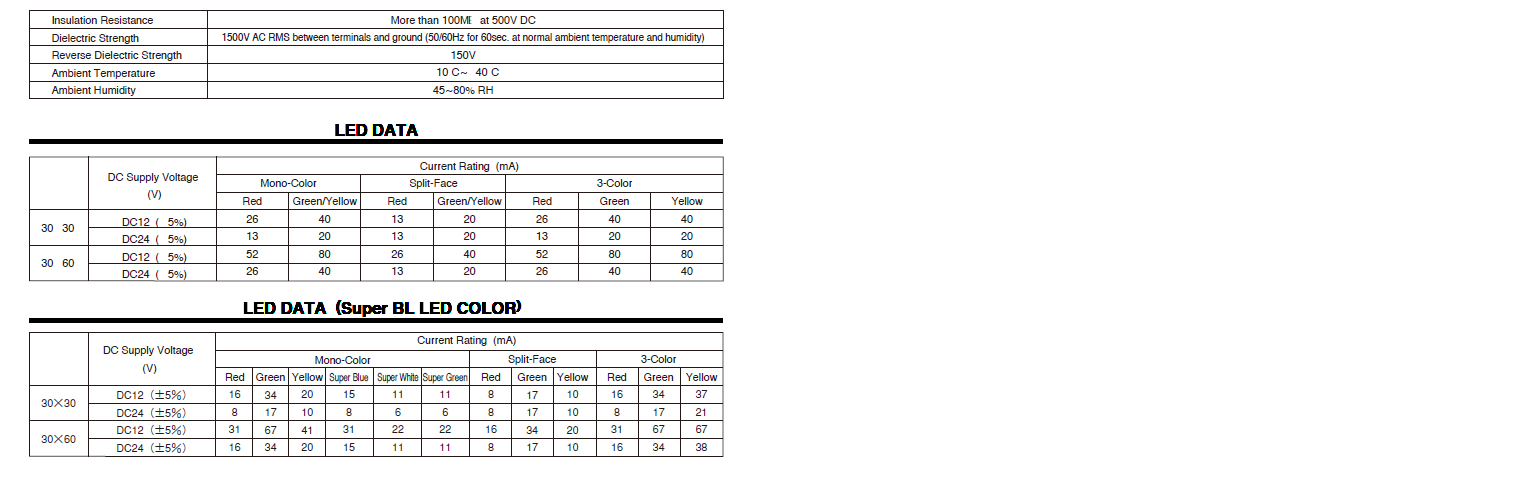

BL Series specifications
| Insulation resistance | More than 100MΩ at 500V DC |
| Dielectric strength | 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity) |
| Reverse dielectric strength | 150V |
| Ambient temperature | -10°C~+40°C |
| Ambient humidity | 45~80% RH |
