BL Square Flat

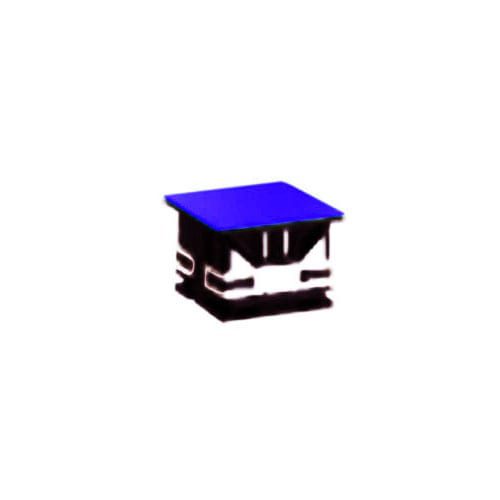

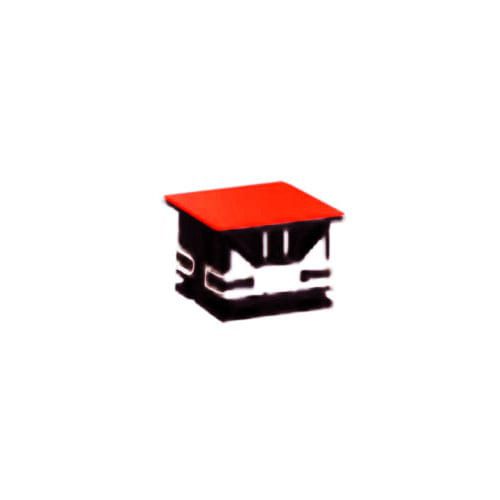

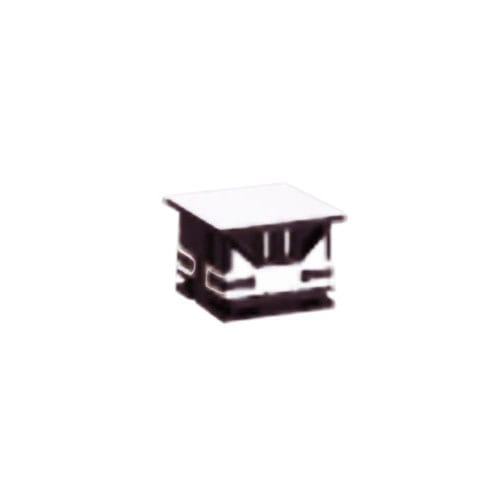

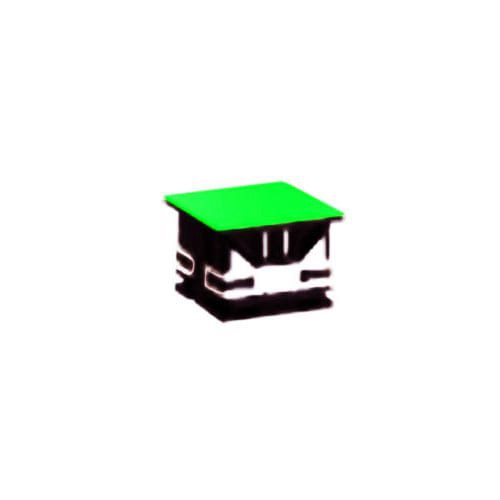

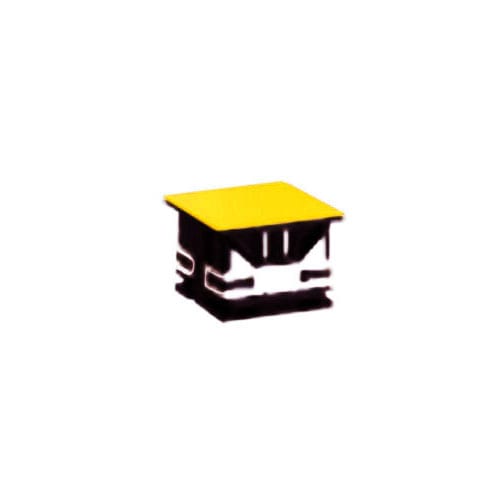

This LED Indicator features a 30mm flat square cap and a connector-type terminal. It can support full-face, split-face, negative or 3-colour LED illumination.

Key Features:

  • 30mm square
  • 20mm depth behind panel
  • LED illuminated
  • Full face/split-face/negative/3-colour (red, green, yellow) illumination options
  • Connector type
  • Full BL series

Data Sheet

Function

Illumination

Single LED options

, , , ,

Split Colour LED Options

red, green/yellow

3 Colour LED Options

Red, Green, Yellow

Product Series

BL Series specifications

Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Reverse dielectric strength 150V
Ambient temperature -10°C~+40°C
Ambient humidity 45~80% RH

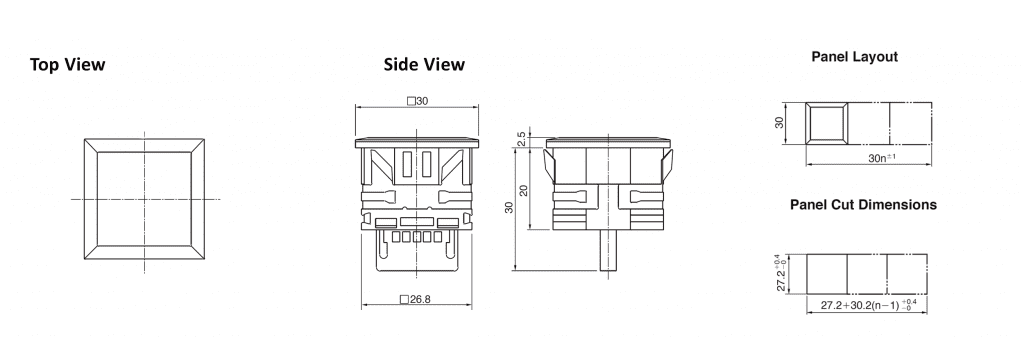

Drawing for BL LED indicator, rjs electronics ltd
