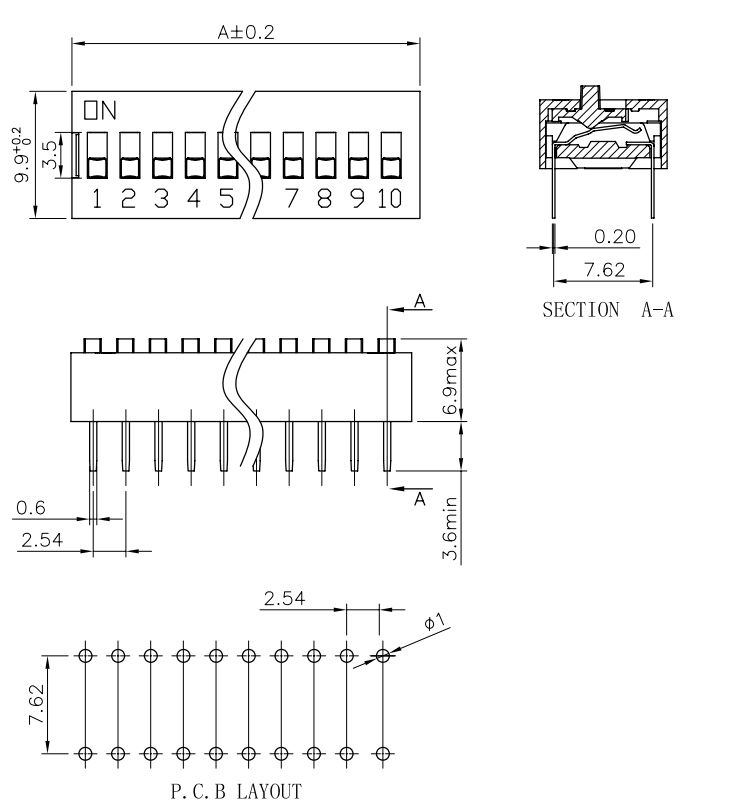

DIP Switch available in SMD, through hole and right angle types. Choose from 1 Pole to 12 Poles, PCB mounted.
Key Features:
| Function | |
|---|---|
| Contact Rating: | 100mA 50VDC |
| Terminal: | Brass with gold plated |
| Dielectric strength: | 500VAC 1 minute |
| Insulation Resistance: | 100mΩ min (500VDC) |
| Electrical Life: | 2,000 cycles per position |
| Contact Resistance: | 500mΩ max |
| Mechanical Life: | ≥ 100,000 Cycles |
| Operating Temperature: | -25℃~+85℃ |
| Contact Rating: | 100mA 50VDC | Electrical Life: | 2,000 cycles per position |
| Terminal: | Brass with gold plated | Contact Resistance: | 500mΩ max |
| Dielectric strength: | 500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Insulation Resistance: | 100mΩ min (500VDC) | Operating Temperature: | -25℃~+85℃ |
