D Series, RJS Electronics Ltd, Non-Illuminated, Industrial Controls, RJS Electronics Ltd.

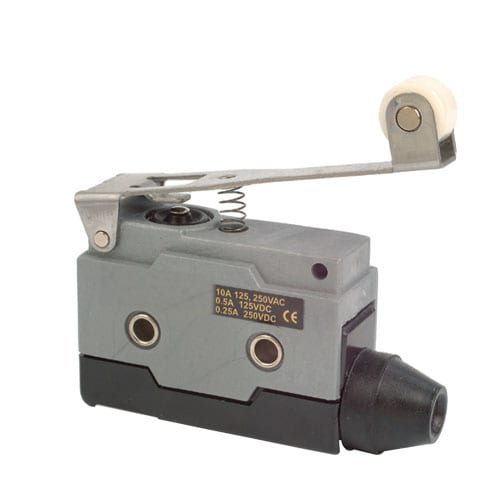

D 2000

Lever Roller Limit Switch
High precision and long life.
Suitable for applications demanding higher mechanical strength
Gasket diaphragm seal provides high environmental resistance.
Rating 10A, 125V or 250VAC

Additional information
Specifications

Function	Limit Switch
Electrical Operations	100,000
Mechanical Operations	1,000,000
Product Series	Limit Switch: D Series
Rating	10A, 125V or 250VAC
Contact Resistance	25mΩ max. (initial)
Insulation Resistance	100MΩ min. (at 500VDC)
Dielectric Strength	1,000VAC,50/60Hz for 1 minute

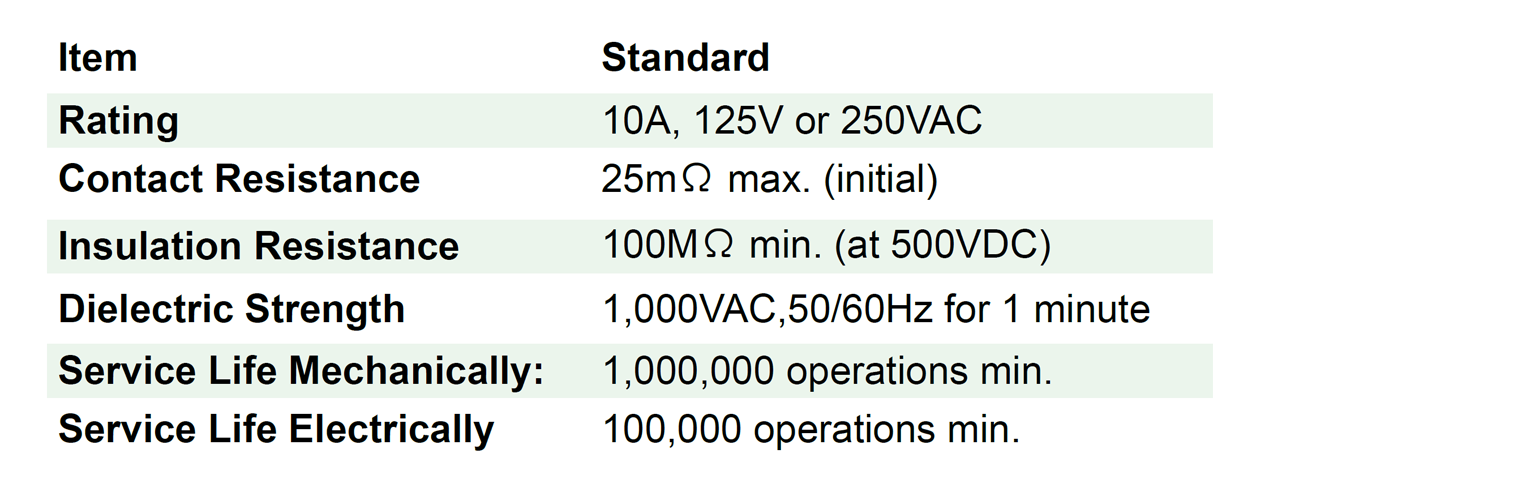

D Series Specification
Rating	10A, 125V or 250VAC
Contact resistance	25MΩ max. (initial)
Insulation resistance	100MΩ min. (at 500VDC)
Dielectric strength	1000VAC (50/60 Hz for 1 minute)
Service life mechanically	1,000,000 operations min.
Service life electrically	100,000 operations min.
