| Function | |
|---|---|
| Mechanical Operations | |
| Electrical Operations | |
| Rating | 10A, 125V or 250VAC |
| Contact Resistance | 25mΩ max. (initial) |
| Insulation Resistance | 100MΩ min. (at 500VDC) |
| Dielectric Strength | 1,000VAC,50/60Hz for 1 minute |
| Product Series |
| Function | |
|---|---|
| Mechanical Operations | |
| Electrical Operations | |
| Rating | 10A, 125V or 250VAC |
| Contact Resistance | 25mΩ max. (initial) |
| Insulation Resistance | 100MΩ min. (at 500VDC) |
| Dielectric Strength | 1,000VAC,50/60Hz for 1 minute |
| Product Series |
|

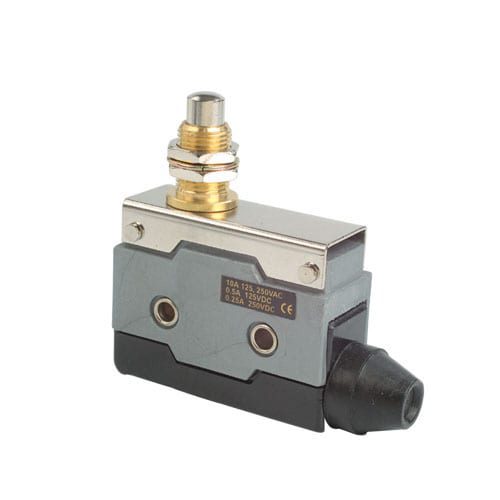

D Series Specification
|
|
| Rating | 10A, 125V or 250VAC |
| Contact resistance | 25MΩ max. (initial) |
| Insulation resistance | 100MΩ min. (at 500VDC) |
| Dielectric strength | 1000VAC (50/60 Hz for 1 minute) |
| Service life mechanically | 1,000,000 operations min. |
| Service life electrically | 100,000 operations min. |
