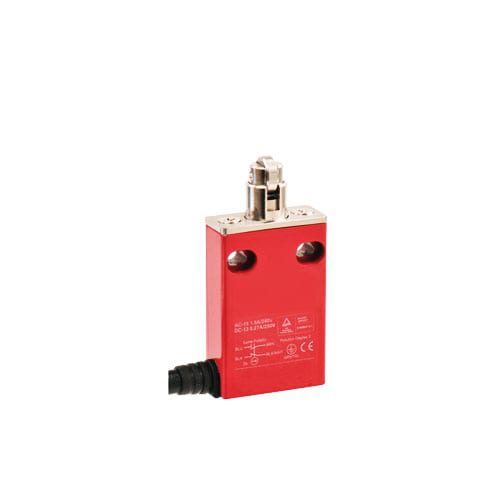

RJSFM Series Specification
|
|
| Safety ratings | |
| Standards | EN 945-1, ISO 13849-1, IEC/EN 60204-1, NFPA 79, EN 1088, ISO 14119, IEC/EN 60947-5-1, ANSI B11.19 AS 4024.1 |
| Safety Classification | Cat. 1 Device per EN 945-1 Dual channel limit switch suitable for Cat 3 or 4 systems |
| Certifications | TUV and CE, marked for all applicable directives |
| Outputs | |
| Safety Contacts | 1 N.C. snap acting |
| Auxiliary Contacts | 1 N. O |
| Thermal Current (Ith) | 10A |
| Rated Insulation Voltage (ui) | 300 A |
| Short Circuit Protection | 1 0A max. fast acting I EC 60269
type gG or equivalent |
| Environmental | |
| Enclosure Type Rating | NEMA 1, IP66 and IP67 |
| Operating Temperature [C (F)] | 2…. + 70° (35.6 …. +158°) |
| Pollution Degree | 3 |
| Physical characteristics | |
| Housing Material | Die Cast Alloy |
| Actuator Material | Various polymers and metals |
| Mounting | 2 x M4, Any position |
| Vibration | IEC 68-2-6 (10 …. 55Hz,0.35 mm amplitude) |
| Shock | IEC 68-2-7(30 Gn 3 pulses per axis) |
| Connection | 2m (6.5 ft) cable |
| Enclosure Colour | Red body/black hear |
| Operating characteristics | |
| Actuation Speed. Max | 250 mm/s |
| Actuation Speed. Min. | 100 mm/min |
| Actuation Frequency, Max | 6000 operation per hour |
| Mechanical life | 1 x 107 operation at room
temperature |
