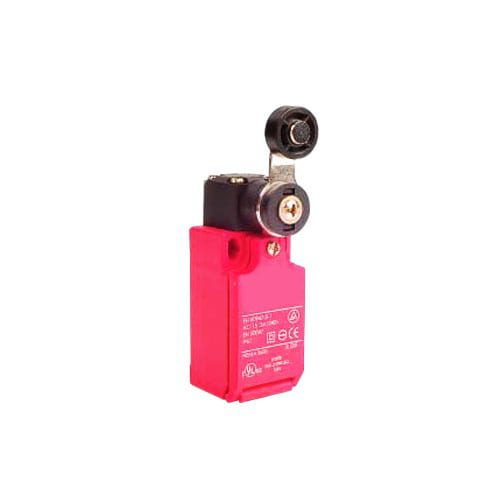

RJSD-20

  • Limit Switch
  • Roller Arm Type
  • Ideal for a wide range of applications, including broadcast switches.





Function

Product Series

Type

RJSD-X-1-20,
RJSD-X-2-20,
RJSD-X-3-20,
RJSD-X-4-20,
RJSD-X-5-20,

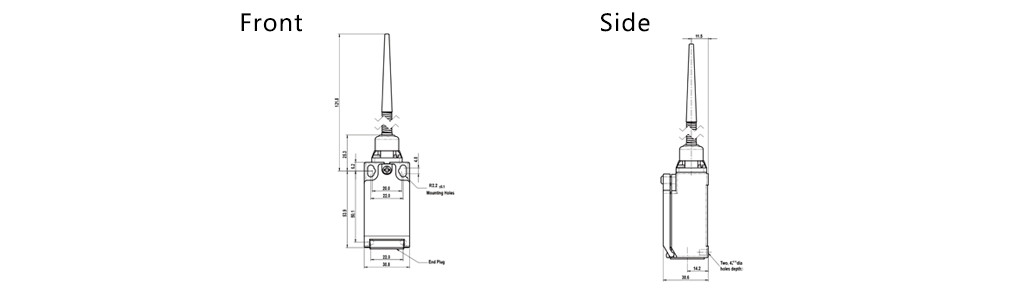

Configuration

Operating Travel (PT)

30◦

PT2nd

41◦

Operating Force (OF)

6.5N

Positive Opening Travel (min)

45◦

Positive Opening Force (min)

19.0N

Total Travel

80◦

Head / Actuator Type

Roller Type

Head/ Actuator Type



RJSD Series Specification



Standards EN60947 -5 -1, UL508, EN50047, EN1088
Approvals cULus, TUV and CE marked for all applicable directives
Positive Opening Operation NC Contact
Utilization Category AC15 A600
Min Current 5V, 5mA, DC
Thermal Current (Ith) 10A
Rated Insulation Voltage 600V AC
Rated Impulse withstand Volt 2500V AC
Insulation Resistance 100MΩ min. (DC 500V)
Contact Resistance 25mΩ max. (Initial)
Max Switching Speed 250mm/s
Max Switching Frequency 6000 operation per hour
Enclosure Protection IP 67
Operating Temperature Min -25°C(-18°F) Max 80°C (+176°F)
Mechanical Life Expectancy 1 x 10 Cycles min
Electrical Life Expectancy 150,000 Cycles min
