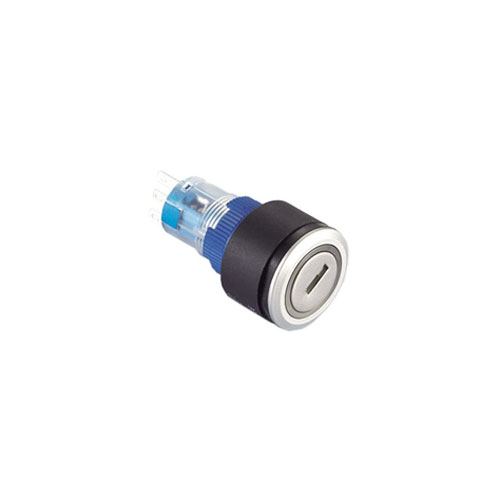

RJSPS1622A Round Plastic Key Lock Switch, non-illuminated, RJS Electronics Ltd

RJSPS1622A Round

This panel mount Keylock Switch features a round cap and 2 position or 3 position configuration. It is IP65 rated (from the front).

Key Features:

Plastic
Round
SPDT/DPDT
Solder lug terminals

Additional information

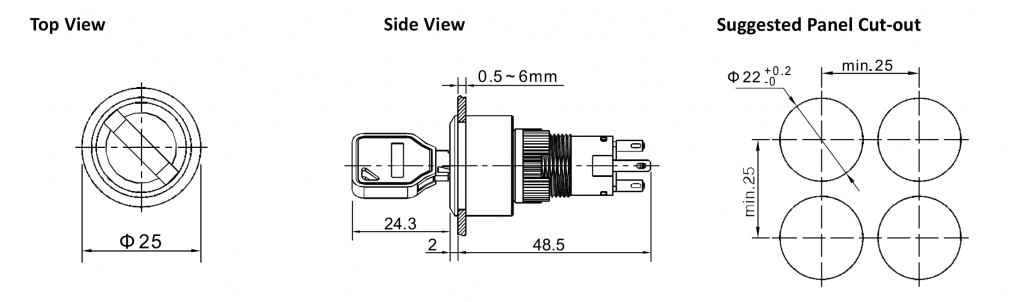

Drawings

Function	Keylock Switch
Configuration	DPDT, SPDT
Terminal Options	Solder Lug Terminals
Cap / Actuator Shape	Round
IP Rating	IP65 (front)
Mechanical Operations	250,000
Electrical Operations	100,000
Product Series	RJSPS1622A
