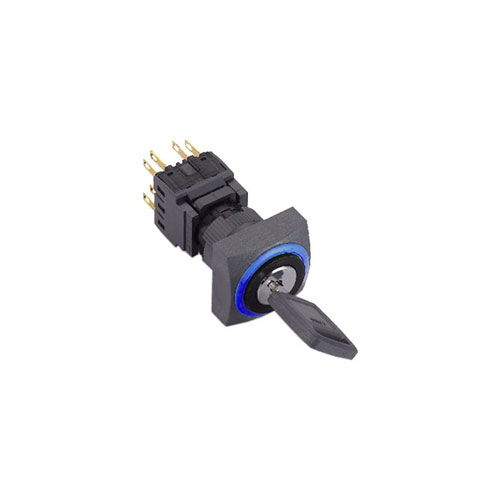

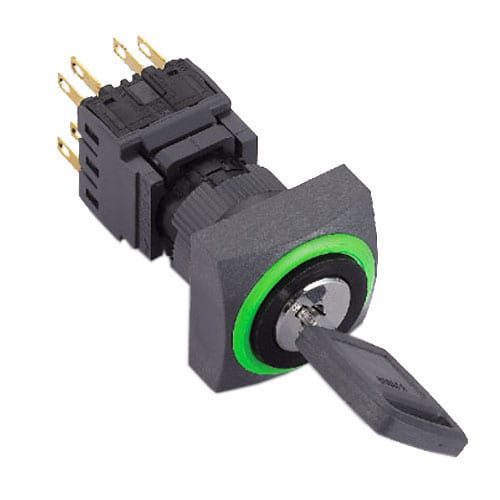

RJSPS1622D Square

This panel mount Keylock Switch features a square cap and 2 position or 3 position configuration. It is non-illuminated and IP65 rated (from the front). Various ring colour options are available.

Key Features:

  • 16mm panel cut out
  • Plastic
  • 90° 2 positions/3 positions
  • Momentary/latching function
  • SPDT/DPDT
  • Solder-lug terminals
Function

Terminal Options

Illumination

Cap / Actuator Shape

Configuration

,

IP Rating

Electrical Operations

Mechanical Operations

Panel Cut-Out Diameter

Product Series

Single LED options

, , , ,

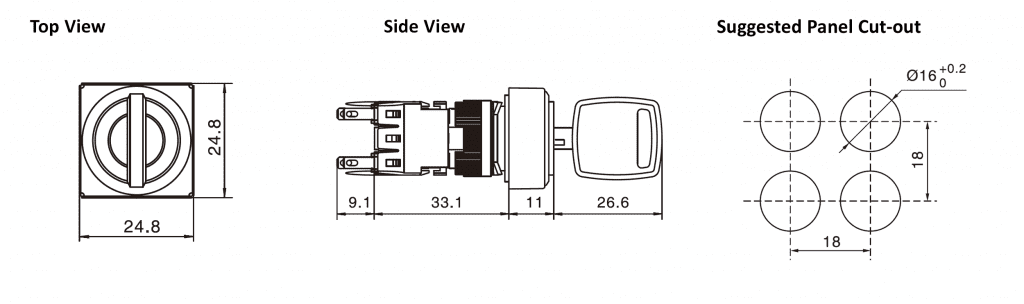

Drawing of RJSPS1622D Square key lock switch non illuminated, rjs electronics ltd
