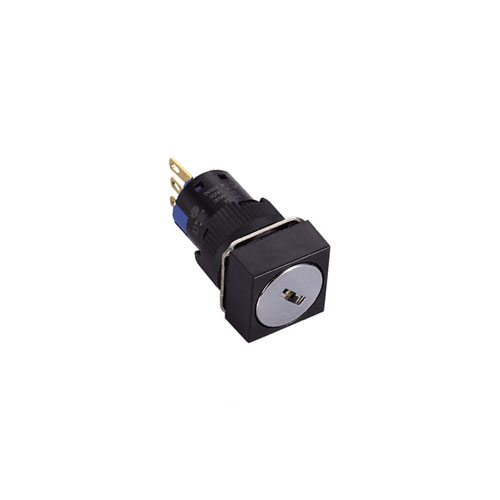

RJSPS16A Square

This panel mount Key Lock Switch features a square cap and 2 position or 3 position configuration. It is IP65 rated (from the front).

Key Features:

Product Series	RJSPS16A
Function	Keylock Switch
Terminal Options	Solder Lug Terminals
Cap / Actuator Shape	Square
IP Rating	IP65 (front)
Mechanical Operations	1,000,000
Electrical Operations	100,000
Configuration	SPDT, 1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over]
