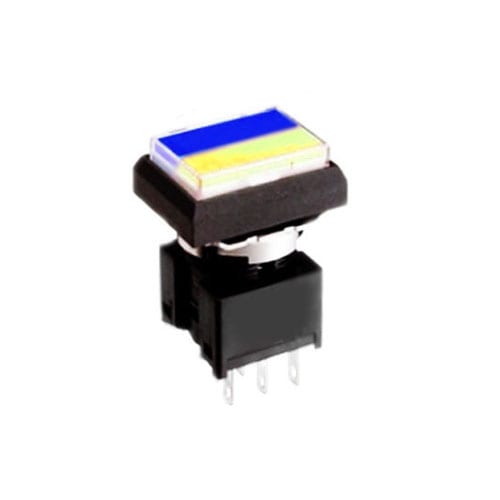

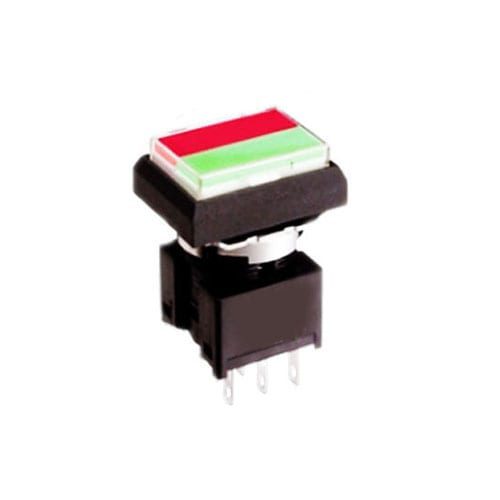

KH Rectangular Illuminated Push Switch

This Illuminated Push Button Switch features a rectangular plastic actuator with LED illumination. It is available with full-face, split-face or dual-colour illumination and a momentary or latching function.

Key Features:

  • 14.2 x 20.2mm rectangle
  • 22mm depth behind panel
  • Momentary/latching function
  • Full-face/split-face/dual-colour LED illumination
  • Built-in resistor for 5V, 12V, 24V use
  • Precision snap action
  • Accessories available: barriers, guard covers, sockets
Function

KH Series specifications

Contact Silver contact (gold-plated) W/E alloy #1 Cross-bar contact
Electrical rating AC 125V, 250V 3A (resistive) AC125V 0.1A, DC30V 0.1A (resistive)
Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 1 000V AC RMS between NC and NO terminal

1500V AC RMS between terminals and ground

50/60Hz for 60sec. at normal ambient temperature and humidity

600V AC RMS between NC and NO terminal

1500V AC RMS between terminals and ground

50/60Hz for 60sec. at normal ambient temperature and humidity

Contact resistance Less than 30mΩ (initial) at DC6V 1A Less than 50mΩ (initial) at DC6V 0.1A
Mechanical life Momentary Action: more than 2,000,000 operations

Alternate Action: more than 200,000 operations

Electrical life More than 100,000 operations at max. rated load
Ambient temperature -15°C~+50°C
Ambient humidity 80% RH (max)

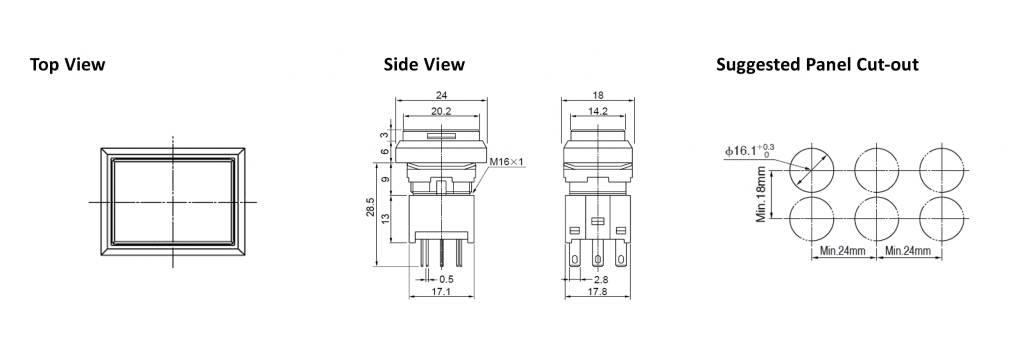

drawing for KH rectangular push button with led illumination, rjs electronics ltd
