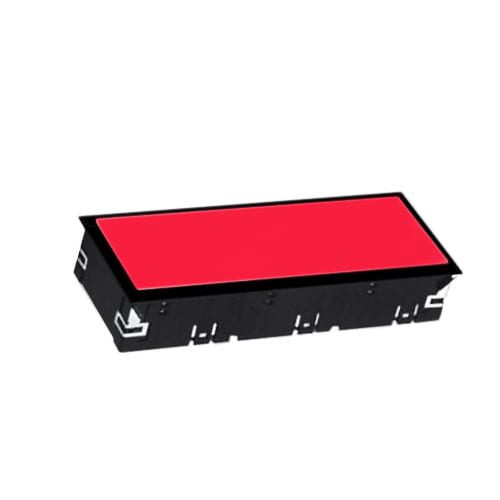

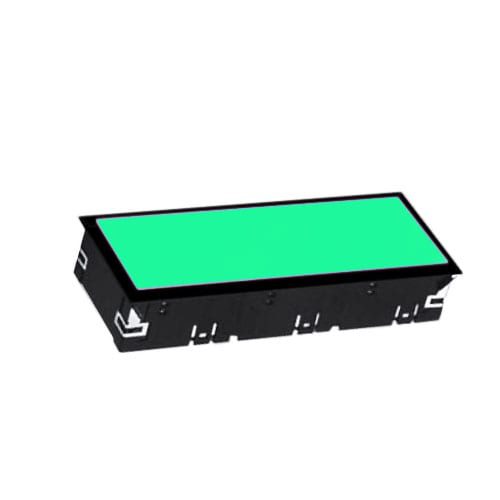

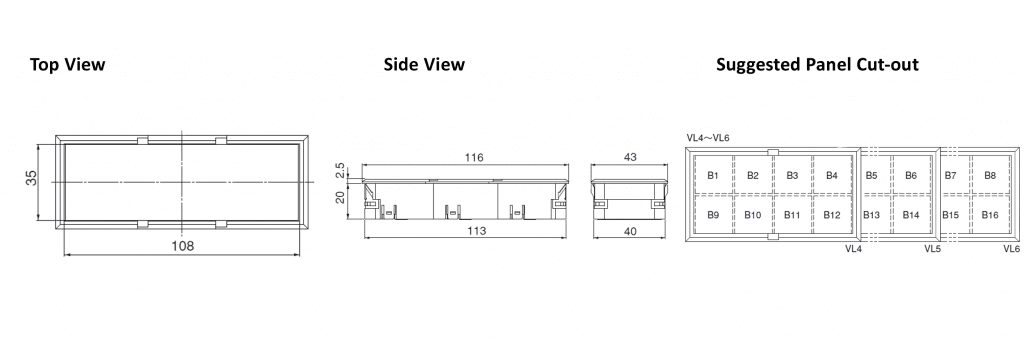

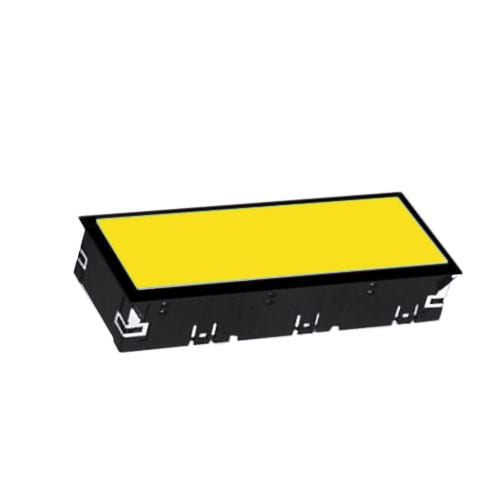

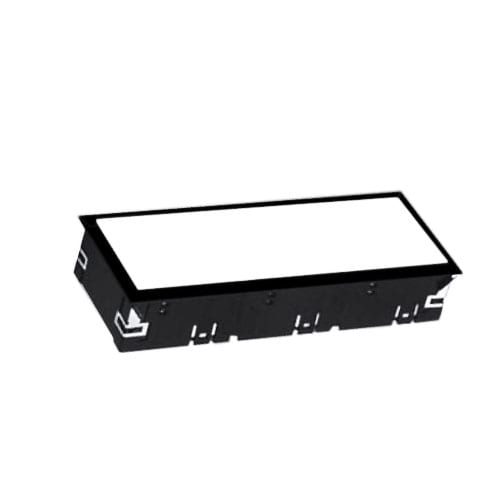

This 35mm x 108mm LED Indicator Panel features full-face LED illumination in a black or grey housing. It can be mounted horizontally or vertically in series with other indicators.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Single LED options | |
| Product Series | |
| Depth (mm) | |
| Terminal Options |
VL LED Series specifications
| Item | Specifications |
| Insulation resistance | More than 100MΩ at 500VDC |
| Dielectric strength | 1500V AC RMS between terminals and ground (50/60Hz for 60 sec. at normal ambient temperature and humidity |
| Reverse dielectric strength | 150V |
| Ambient temperature | -10°~40°C |
| Ambient humidity | 45~85%RH |
