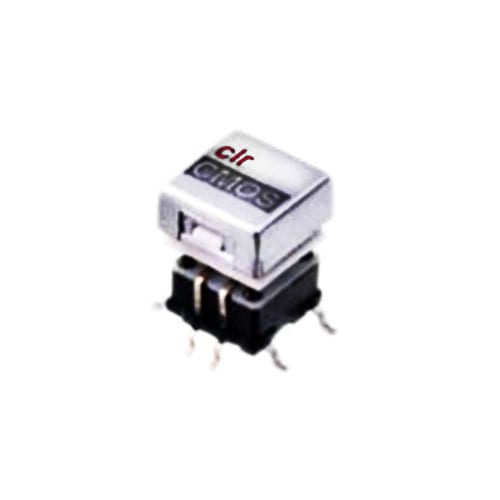

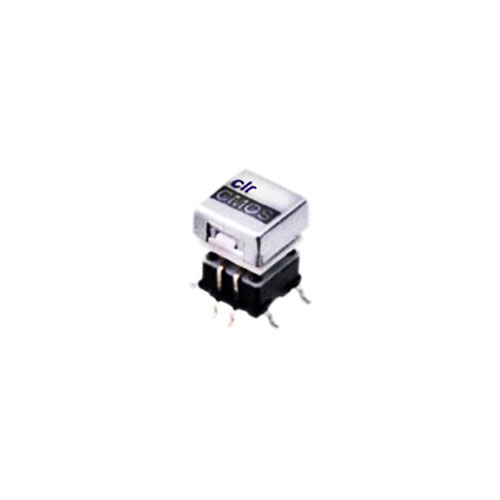

PB61531HML

Key Features:

  • PCB (THT) switch
  • Momentary function
  • Tactile feedback
  • Single / bi-colour / RGB LED
  • Rating: 50mA 12VDC
  • Square cap
Product Series

,

Configuration

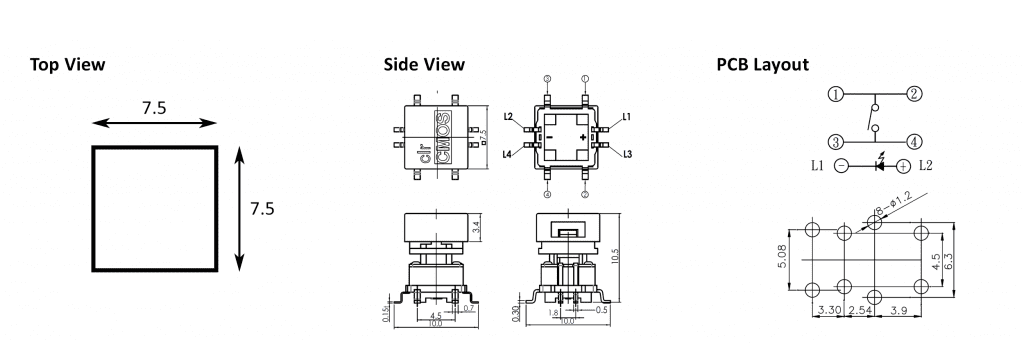

Cap Dimensions (mm)

Cap / Actuator Shape

Illumination

, , ,

Single LED options

, , , , , , , , , ,

Multi-Colour LED Options

, , , , , , ,

Terminal Options

,

Orientation

Function

,



PB615 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -25°c~ +70°c
Operating force 160 + 50gf

PCB, push button switch, illuminated tact switch, without LED illumination, switch with LED illumination, single LED illumination, bi-colour LED illumination, custom etching custom. Momentary function switch with Plastic housing. RJS Electronics Ltd.
