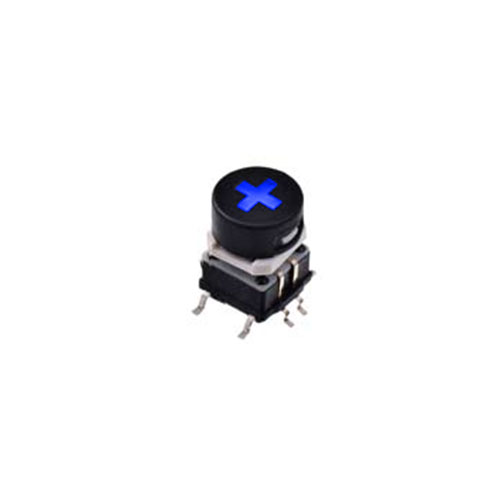

LED illuminated push button switch with momentary function and tactile feedback – the perfect addition to any electronics project. This versatile switch offers single, bi-colour, or RGB LED illumination options. With a rating of 50mA at 12VDC, this SMT type switch guarantees reliable performance and durability.
Key Features:
| Product Series | |
|---|---|
| Illumination | |

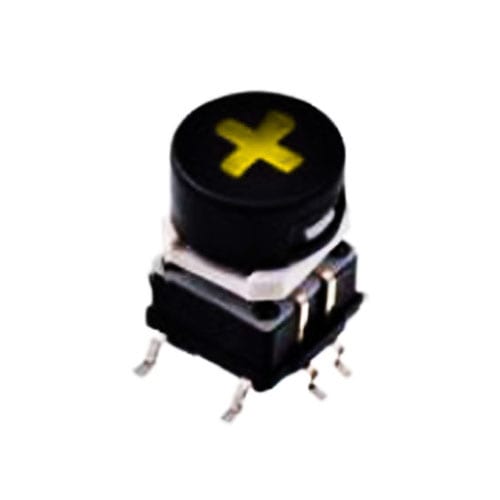

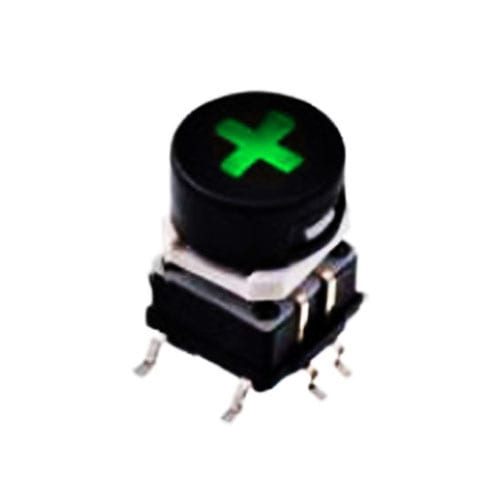

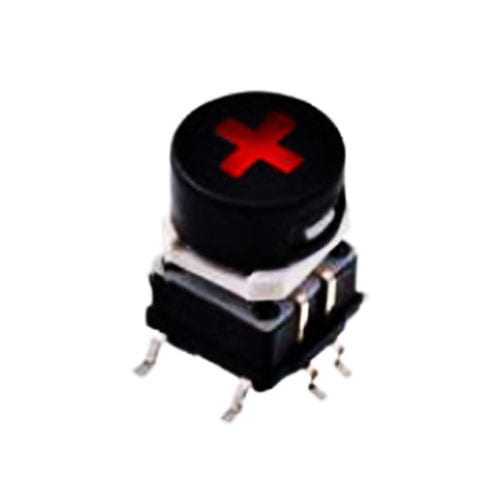

| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow |
| Cap Dimensions (mm) | |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| Function | |
| Multi-Colour LED Options |
|
PB615 Series Specification
|
|
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrical Life | 300,000 Cycles Min |
| Ambient Temperature | -25°c~ +70°c |
| Operating force | 160 + 50gf |
