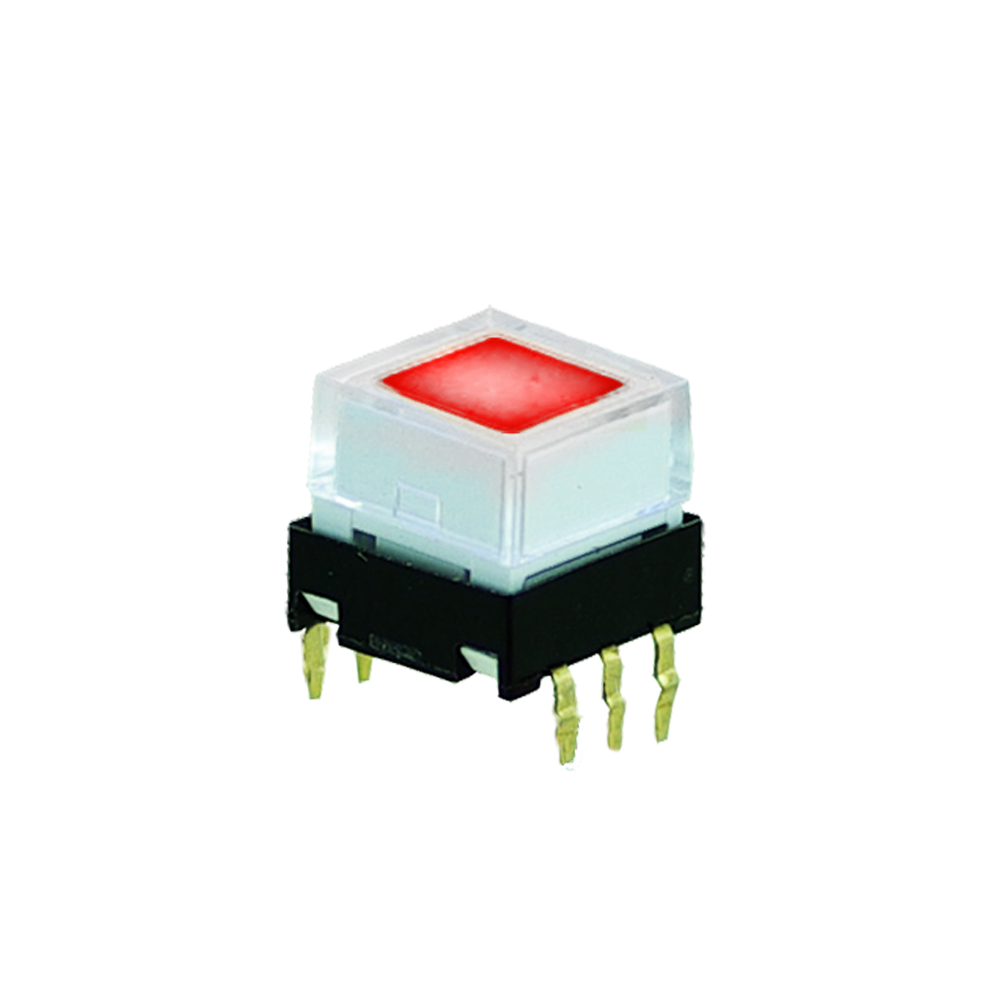

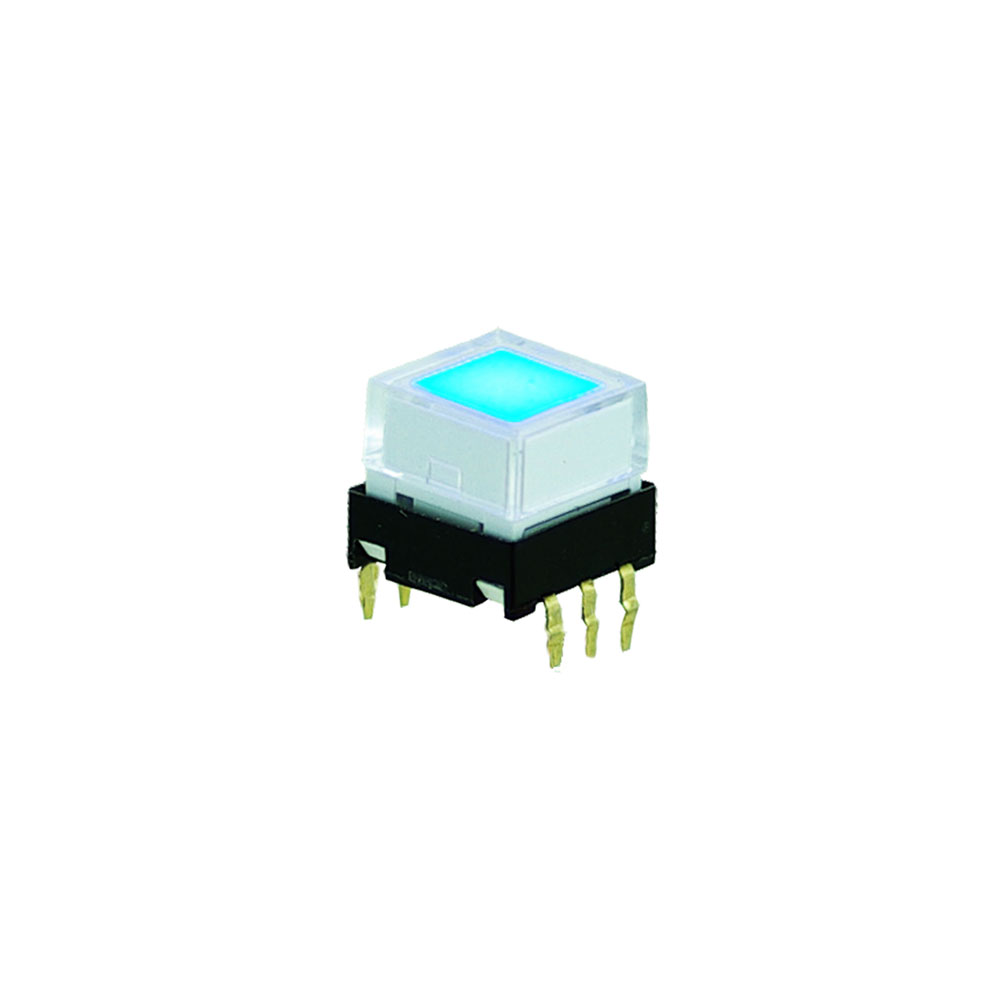

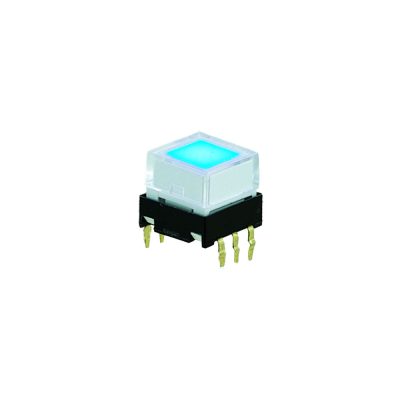

This PCB Push Button Switch has a square cap with a tactile click. It is low profile and features single, bi-colour or RGB LED illumination and a momentary function.
Key Features:

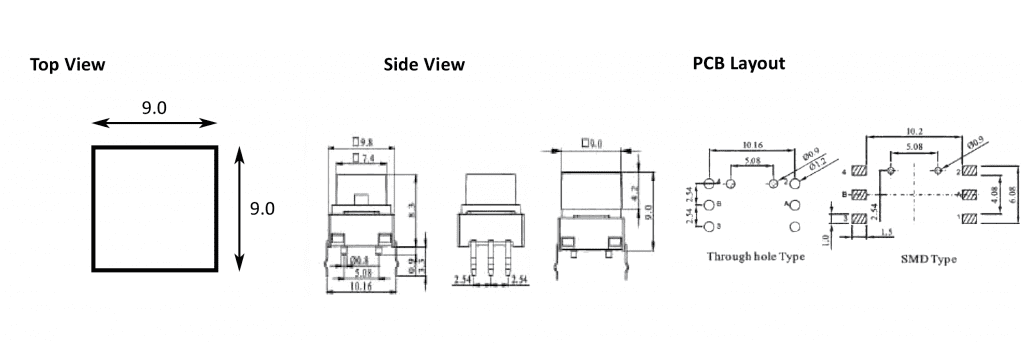

| Product Series | |
|---|---|
| Configuration | |
| Function | |
| Multi-Colour LED Options | |
| Switch Circuit | |
| Illumination | |
| Single LED options | Pure Green, Blue, Green, Red, White, Without LED, Yellow |
| Cap / Actuator Shape | |
| Cap Dimensions (mm) |
|

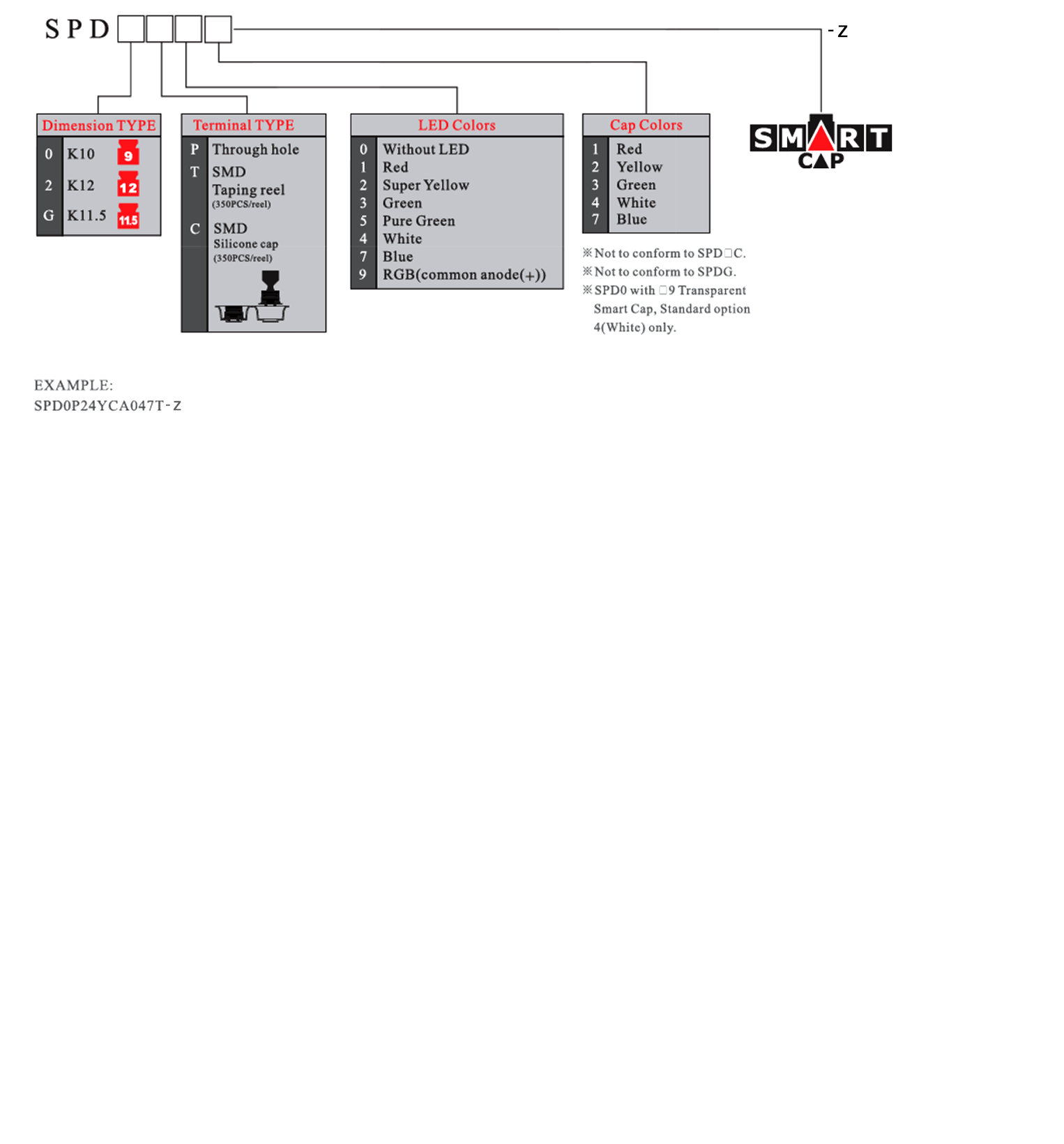

SPD-Z Series Specification
|
|
| Circuit | SPST |
| Current rating | 50mA @ 12VDC |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 220gf + 50gf (S1~4) |
| Total travel | 0.3mm + 0.1mm |
| Mechanical life | 1,000,000 cycles min |
| Operating temperature | -25deg~+60deg |
| Solder specifications | 250 deg |
|
SPD-Z Series Materials
|
|
| Cover | Polycarbonate (PC) |
| reflector | Polyamide (PA) |
| Base | LCP |
| Action dome | Stainless steel with silver plating |
| Terminal | Phosphor bronze (PBS) with gold plating |
