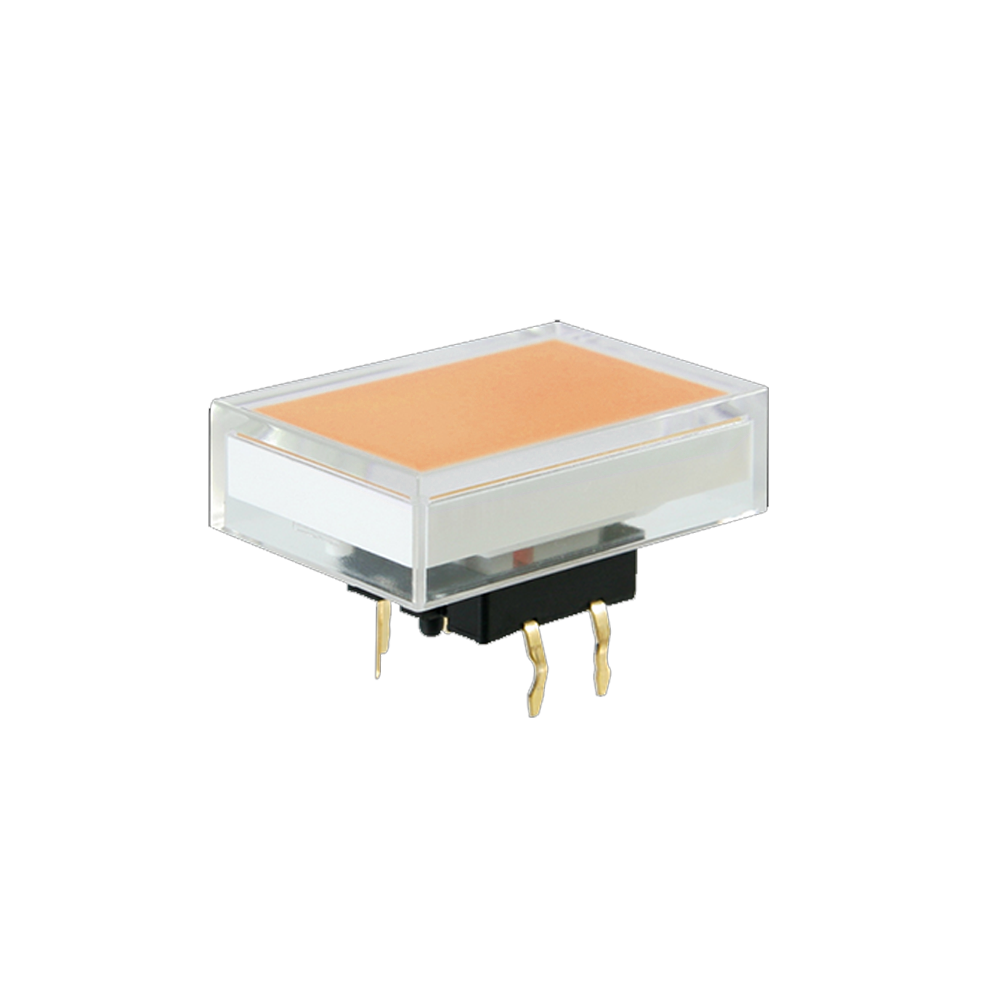

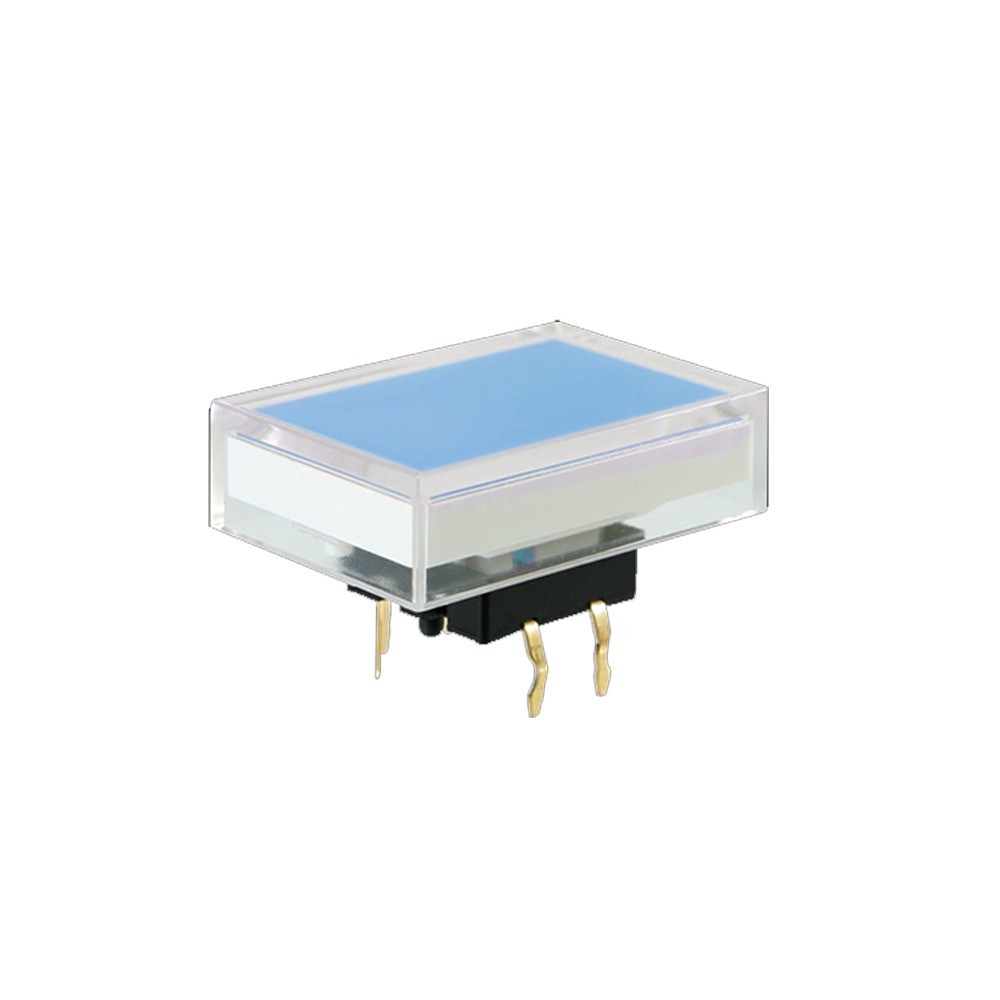

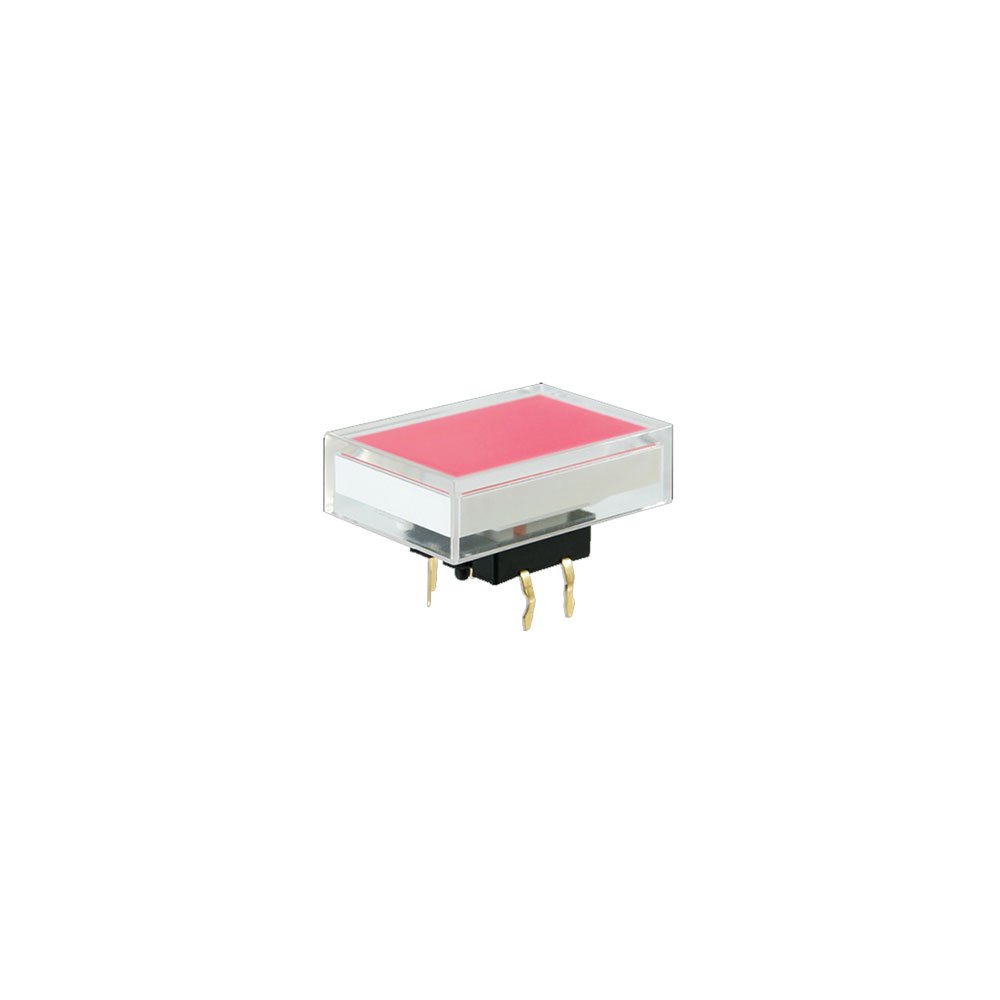

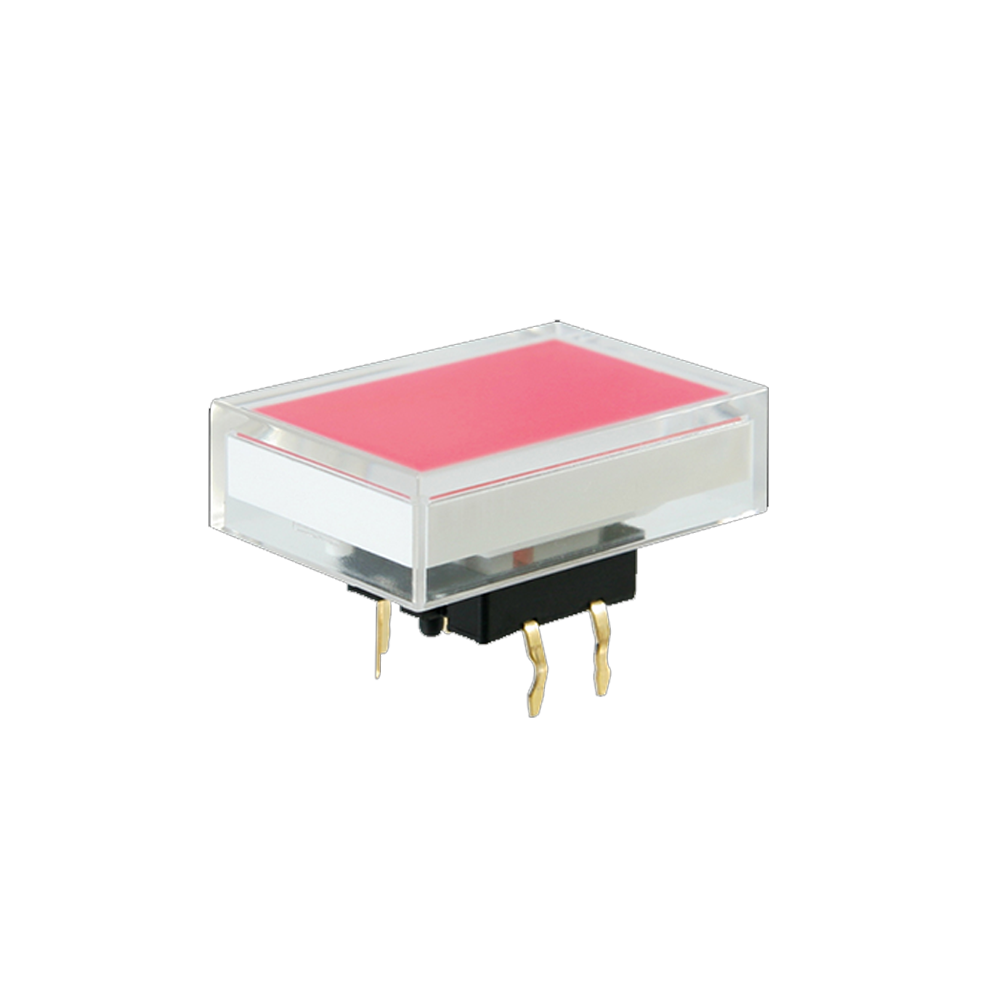

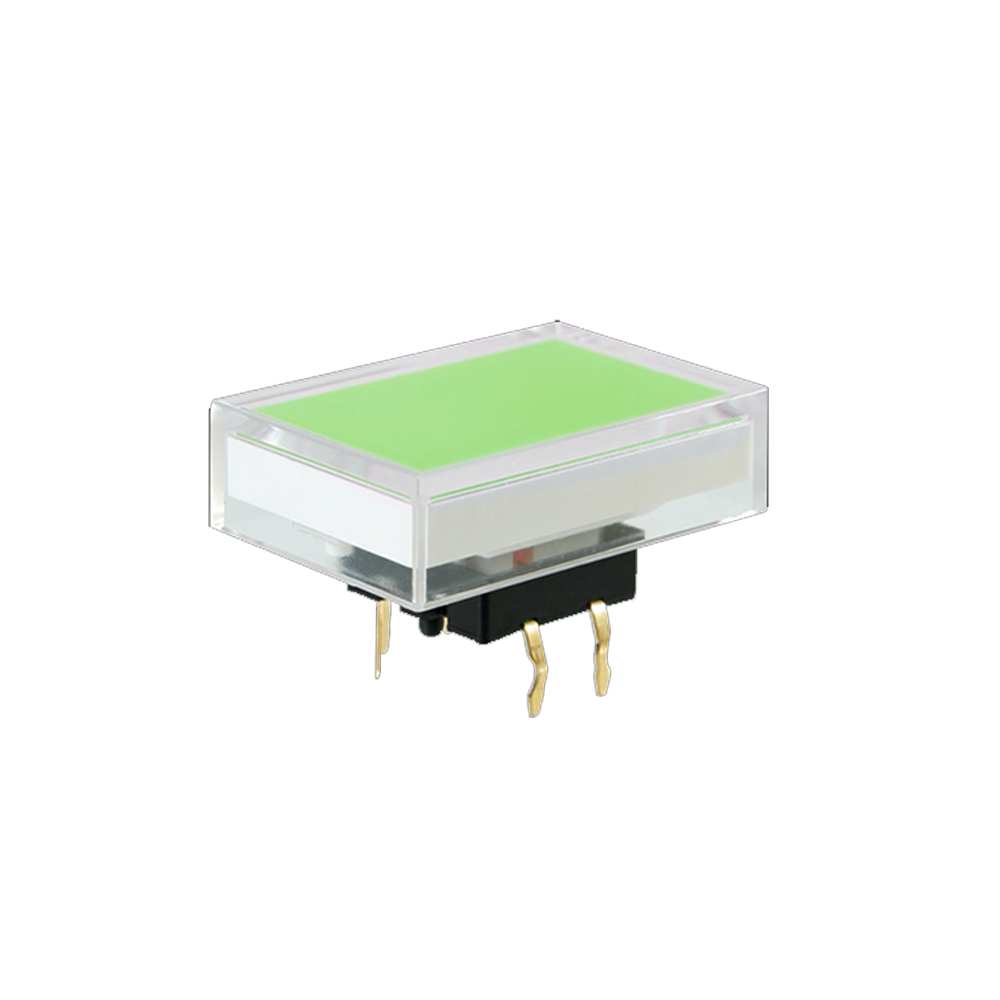

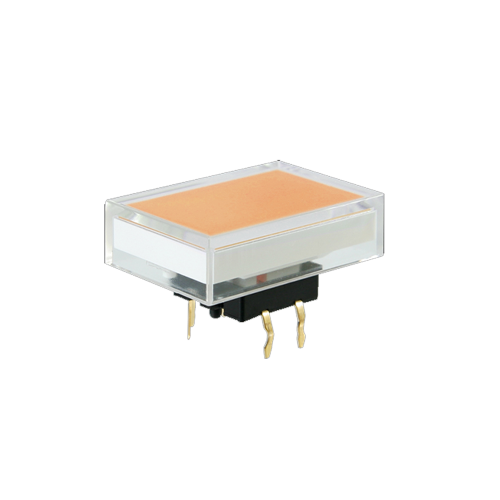

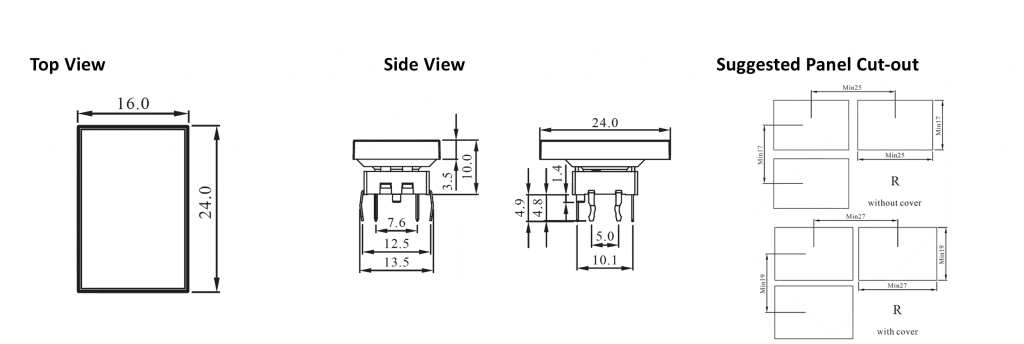

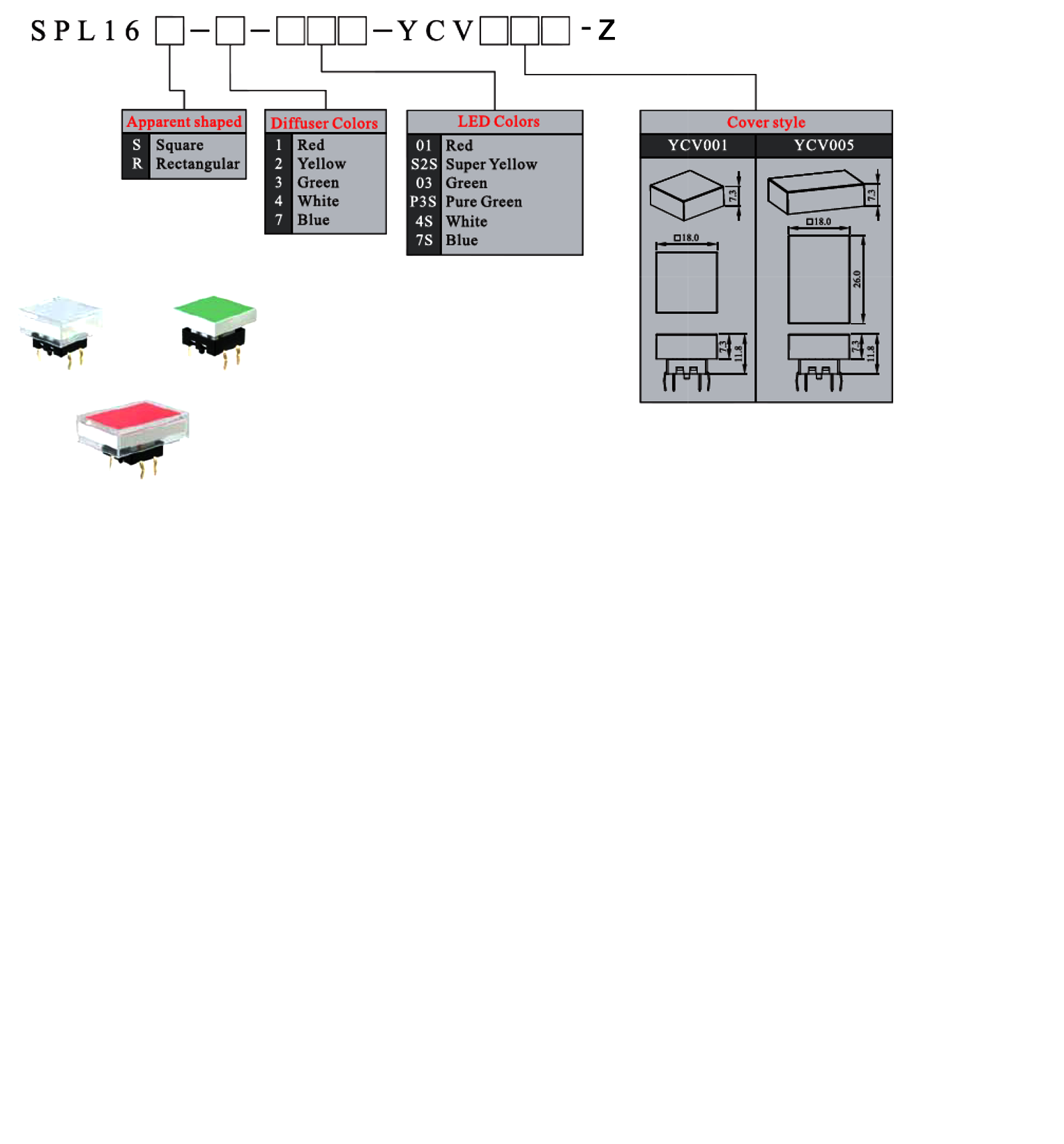

This PCB Push Button Switch has a 16x24mm rectangular cap with a tactile click. It features full face LED illumination and a momentary function. Choose single, bi-colour or RGB LED. Compatible with Smart Caps.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Configuration | |
| Cap / Actuator Shape | |
| Multi-Colour LED Options | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Single LED options | Pure Green, Super Yellow, Blue, Green, Red, White |
|
SPL-Z Series Specification
|
|
| Circuit | SPST |
| Current rating | 50mA @ 12VDC |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 300gf + 100gf (S1~4) |
| Total travel | 0.3mm + 0.1mm |
| Mechanical life | 5,000,000 cycles min |
| Operating temperature | -25deg~+60deg |
| Solder specifications | 260 deg for 3 seconds |
|
SPL-Z Series Materials
|
|
| Cover | Polycarbonate (PC) |
| Cap | Polycarbonate (PC) |
| Housing | Polyamide (PA) |
| Base | Polyamide (PA) |
| Lamp term | Phosphor bronze (PBS) with gold plating |
| Action dome | SUS with silver plating |
| End term | Brass with gold plating |
| LED | Surface mount chip LED |
