| Configuration | |
|---|---|
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |

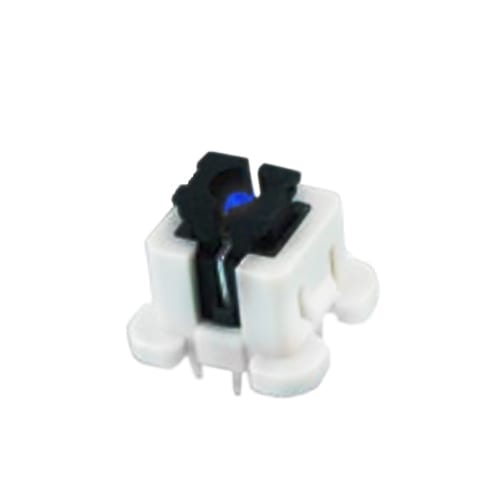

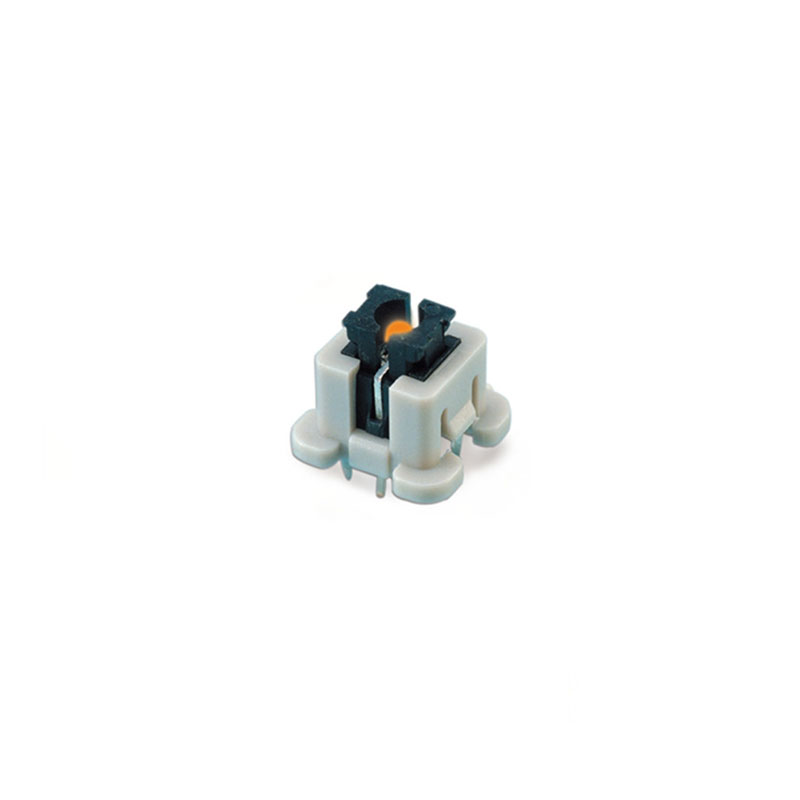

Illuminated push button with momentary function. It is equipped with a tactile ‘clicky’ push, and featuring LED illumination with both single or bi-colour options. Our switch is available with an array of caps to suit your application. With a rating of 50mA 12VDC, these switches provide a reliable and durable functioning.
Key Features:
| Configuration | |
|---|---|
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |
|

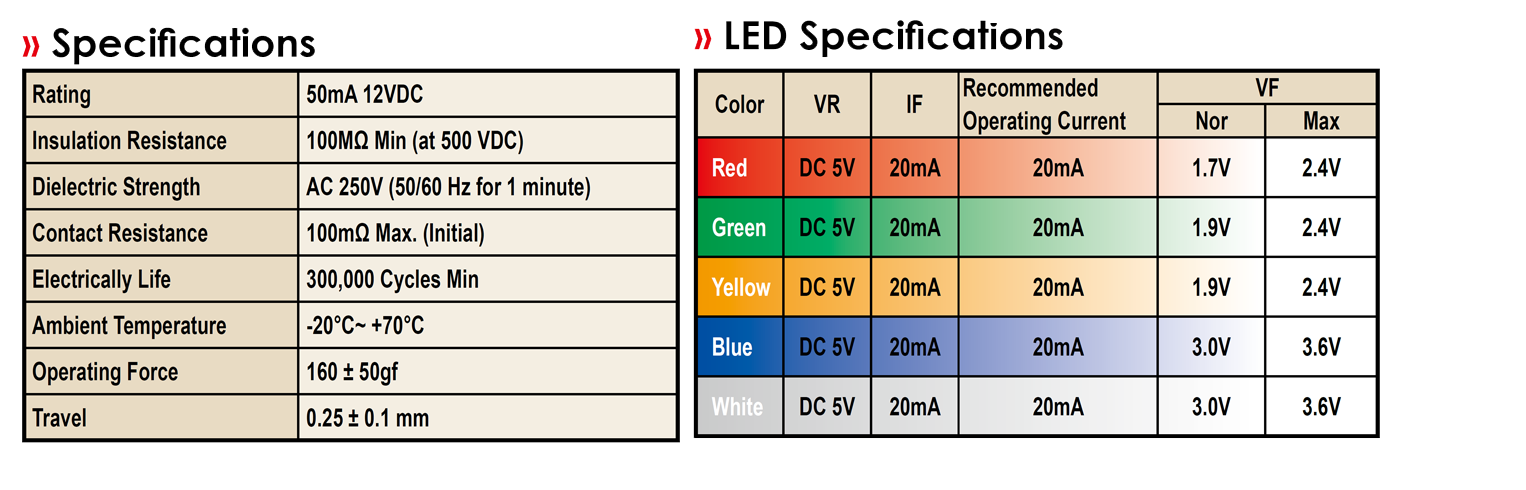

TP6141 Series Specification
|
|
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500VCD) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrical Life | 300,000 Cycles Min |
| Ambient Temperature | -20°c~ +70°c |
| Operating force | 160 + 50gf (Momentary)
|
| Travel | 0.25 + 0.1mm |
