AH8122 Limit Switch, AH Series, Limit Switches, Industrial Control, without LED illumination, multiple actuators, RJS Electronics Ltd.

AH8122

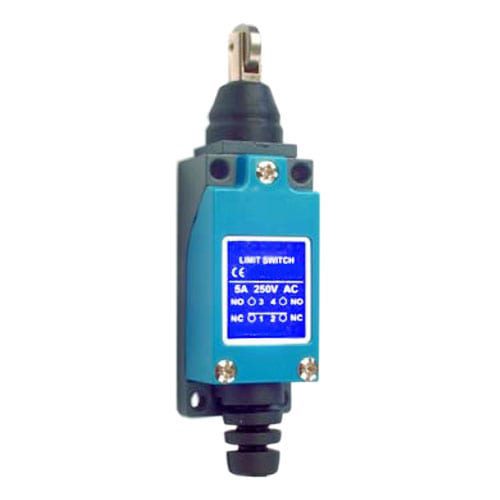

Roller Plunger Limit Switch: AH Series
90 degree roller type
High precision and metal die-casting body
Easy to wire connection construction
High mechanical strength

Additional information
Specifications

Function	Limit Switch
Rating	5A 250VAC / 125 VAC
Contact Resistance	25mΩ max. (initial)
Dielectric Strength	1,000VAC,50/60Hz for 1 min
Insulation Resistance	100MΩ min. (at 500VDC)
Product Series	Limit Switch: AH Series
Mechanical Operations	1,000,000
Electrical Operations	100,000

AH Series Specification
Rating	5A 250VAC / 125 VAC
Contact resistance	25MΩ max. (initial)
Insulation resistance	100MΩ min. (at 500VDC)
Dielectric strength	1000VAC (50/60 Hz for 1 minute)
Service life mechanically	1,000,000 operations min.
Service life electrically	100,000 operations min.
