| Function | |
|---|---|
| IP Rating | |
| Electrical Operations | |
| Mechanical Operations | |
| Product Series | |
| Insulation Resistance | 100m Ω min. |
| Contact resistance | 25m Ω max. |
| Current (min) | 5V, 5mA, DC |
| Function | |
|---|---|
| IP Rating | |
| Electrical Operations | |
| Mechanical Operations | |
| Product Series | |
| Insulation Resistance | 100m Ω min. |
| Contact resistance | 25m Ω max. |
| Current (min) | 5V, 5mA, DC |
|

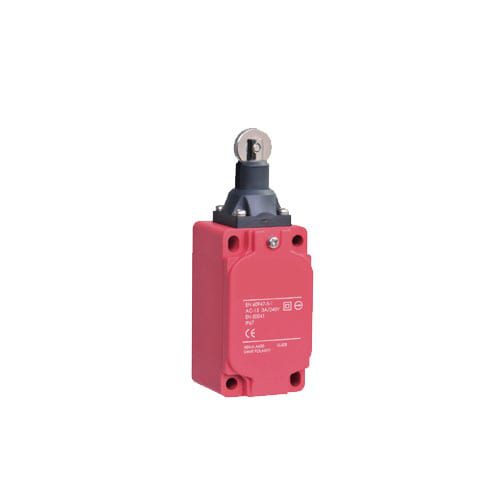

RJSP Series Specification
|
|
| Standards | EN60947-5-1, UL508, EN50047, EN1088 |
| Approvals | cULus, TUV and CE marked for all applicable directives |
| Positive Opening Operation | NC Contact |
| Utilization Category | AC15 A600 |
| Min Current | 5V, 5mA, DC |
| Thermal Current (Ith) | 10A |
| Rated Insulation Voltage | 600V AC |
| Rated Impulse withstand Volt | 2500V AC |
| Insulation Resistance | 100MΩ min. (DC 500V) |
| Contact Resistance | 25mΩ max. (Initial) |
| Max Switching Speed | 250mm/s |
| Max Switching Frequency | 6000 operation per hour |
| Enclosure Material | UL approved glass-filled polybutylene terephthalate |
| Roller Material | Various polymers |
| Enclosure Protection | IP 67 |
| Operating Temperature | Min -25°C(-18°F) Max 80°C (+176°F) |
| Pollution Degree | 3 |
| Protection Against Electric Shock | Class II (Double Insulation) |
| Mechanical Life Expectancy | 1 x 107 Cycles min |
| Electrical Life Expectancy | 150,000 Cycles min |
| Vibration | IEC 68-2-6, 10-55Hz ± 1 Hz, Excursion: 0.35mm, 1 octave/min |
| Conduit Entry | Various (see Product Selection table) |
| Fixing | 4x M5 |
