RJS1N1LP-22M-F-R~67J

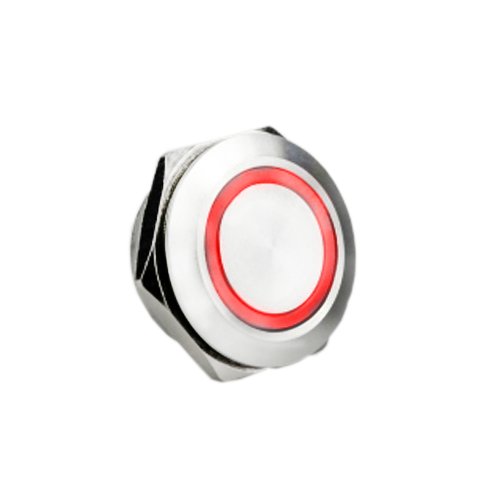

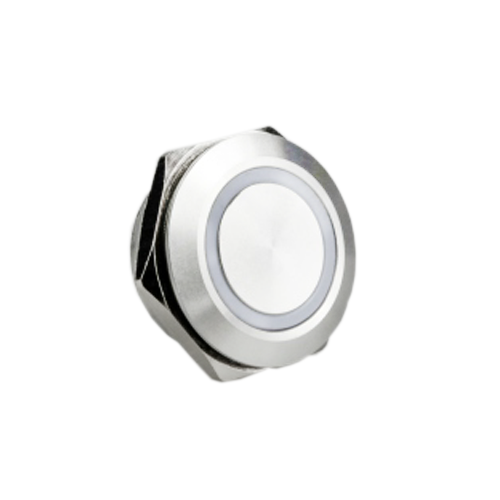

Ø 22mm ultra-low-profile metal push button switch, with a total depth of 14mm, creating added space behind the panel. Equipped with micro travel and a rating of IP67 (from the front). Single, bi-colour or RGB LED options available.

Key Features:

  • Ø 22mm Panel cut out
  • Low profile switch with micro travel
  • Momentary function
  • Ring LED illumination
  • Single / Bi-colour / RGB LED options
  • IP67 (from the front)
  • SPST
Data Sheet



Product Series

IP Rating

Configuration

Mechanical Operations

Cap / Actuator Shape

,

Bezel Shape

,

Illumination

Single LED options

, , , , ,

Panel Cut-Out Diameter

Function

,

Multi-Colour LED Options

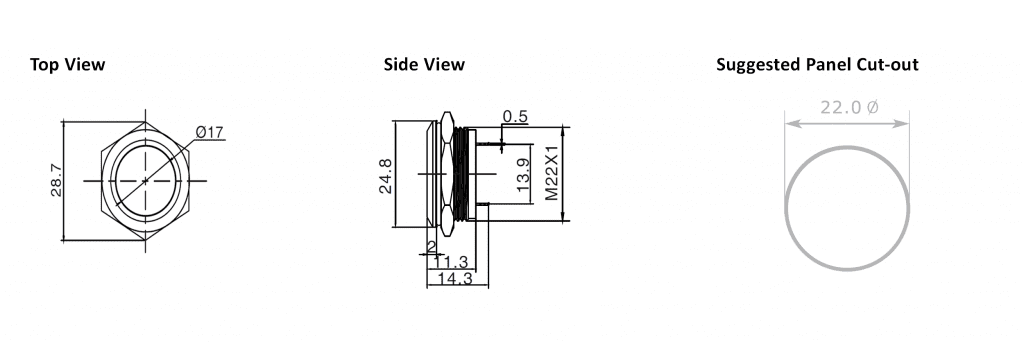

Drawing for 22mm antivandal push button switch, rjs electronics ltd
