RJS207-22L(A)-F-R~67J 22mm metal push button switch, latching, ring led illumination, high current, panel mount, LED SWITCHES, rjs electronics ltd
RJS207-22L(A)-F-R~67J 22mm metal push button switch, latching, ring led illumination, high current, panel mount, LED SWITCHES, rjs electronics ltd
RJS207-22L(A)-F-R~67J 22mm metal push button switch, latching, ring led illumination, high current, panel mount, LED SWITCHES, rjs electronics ltd

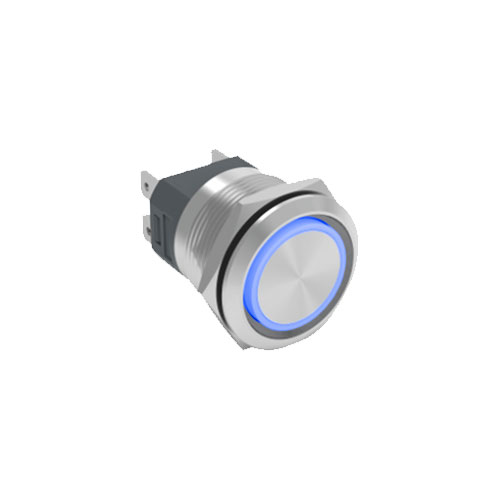

RJS207-22L(A)-F-R~67J

22mm High Current Antivandal Switch with Ring LED Illumination.

Key Features:

  • Ø 22mm Panel cut out
  • Momentary / Latching
  • Ring LED illuminated
  • IP67 rated (from the front)
  • SPDT / DPDT
  • RJS107-22L(A)-F-R~67J = Single pole
  • RJS207-22L(A)-F-R~67J = Double pole.

Applications:

  • Automotive
  • Boat building & Marine
  • Security
  • Door entry
  • Medical
Data Sheet



Product Series

,

Illumination

IP Rating

Function

, ,

Panel Cut-Out Diameter

Product Material Options

Multi-Colour LED Options

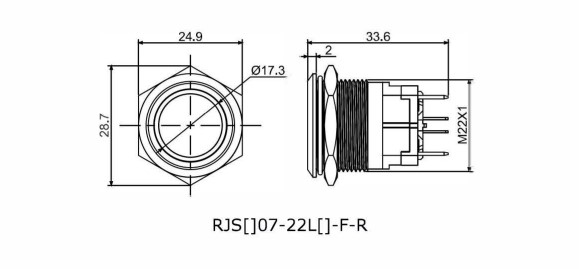

22mm high current antivandal switch drawing, rjs electronics ltd
