RJS01-30I-150A~67J 30mm, LED indicator, panel mount, metal indicator, RGB LED, RJS Electronics Ltd

RJS01-30I-150A~67J

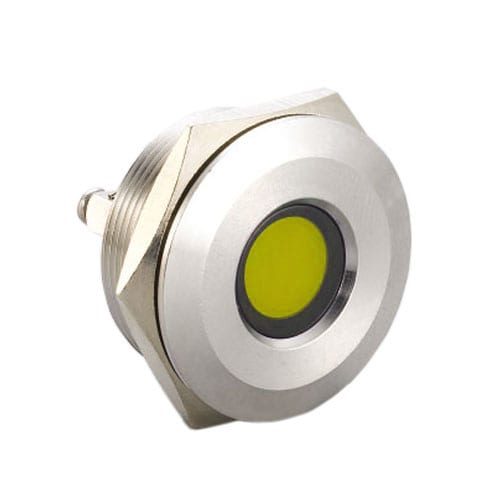

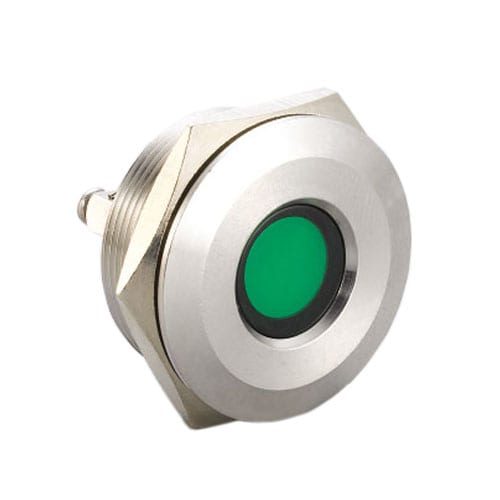

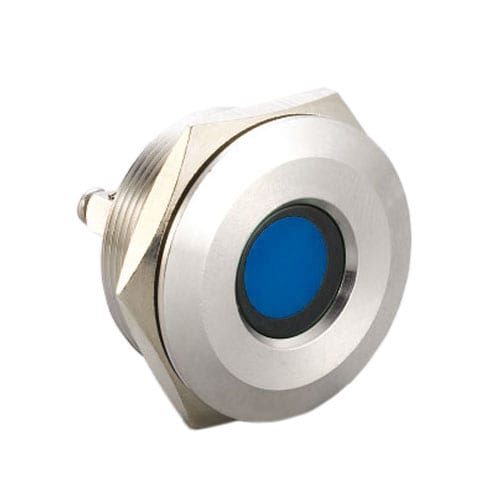

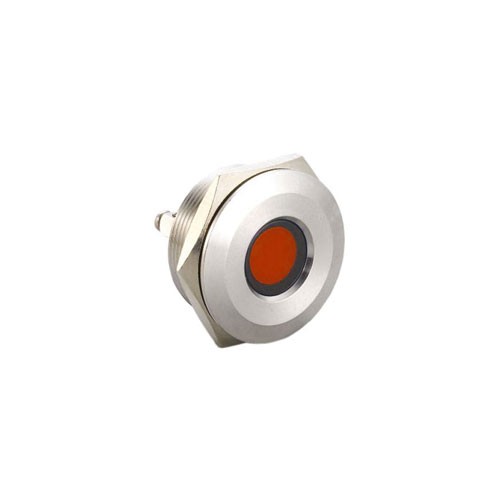

This metal panel mount LED Indicator features a 30mm concave head with LED illumination. It has an IP67 rating (from the front) and a screw type installation style.

Key Features:

  • Ø30mm panel cut out
  • Full LED illumination
  • Single/bi-colour/RGB LED available
  • IP67 rated (from the front)
  • Concave head
  • 3V-24V DC LED

Data Sheet

Function

Product Series

Terminal Options

Illumination

Cap / Actuator Shape

,

IP Rating

Panel Cut-Out Diameter

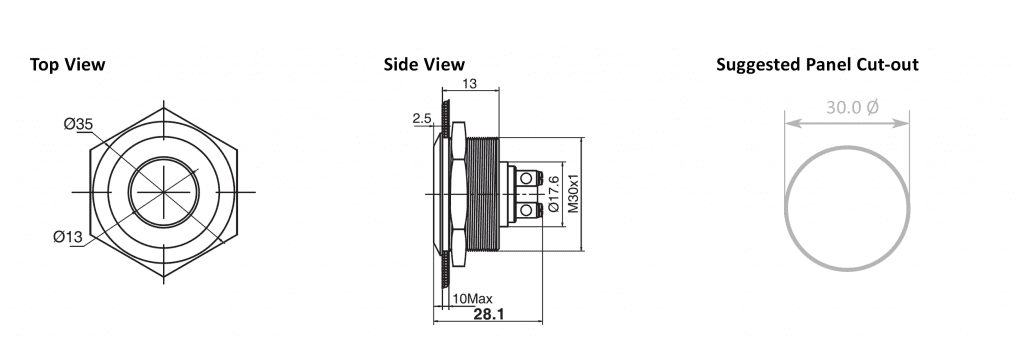

Drawing of RJS01-30I-150A~67J 30mm concave face led illuminated metal indicator, RJS Electronics LTD
