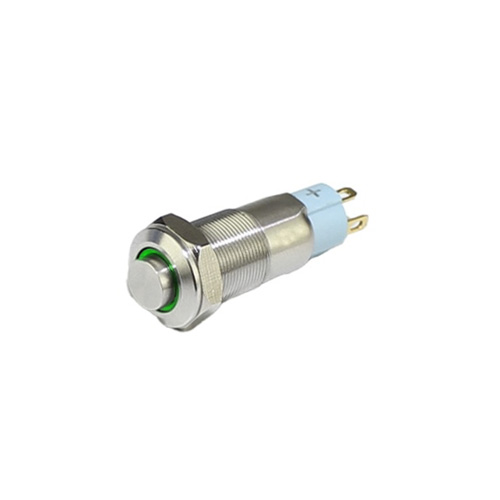

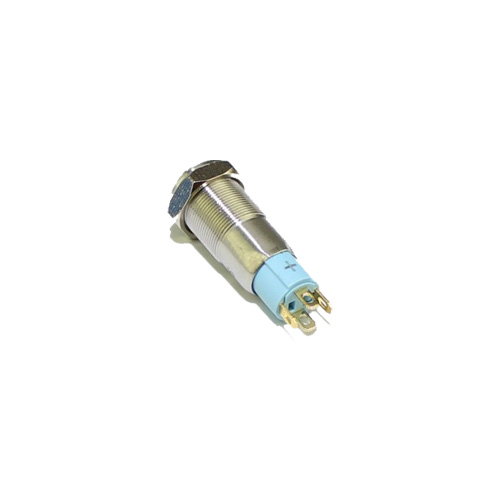

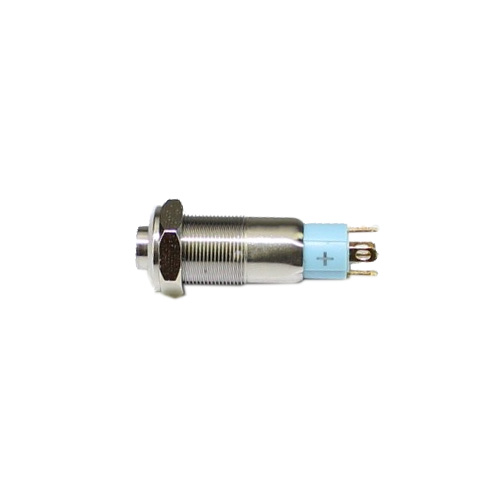

Metal push button switch with 10mm⌀ panel cut out, featuring ring LED illumination. Equipped with IP67 rating from the front.
Key Features:
| Product Series | |
|---|---|
| Terminal Options | |
| IP Rating | |
| Illumination | |
| Cap / Actuator Shape | |
| Function | |
| Panel Cut-Out Diameter |
| Function | Momentary/Latching with ring LED |
| Contact Rating | 3A/250V AC |
| Contact Resistance | 3V DC, 50mΩ Max |
| Insulation Resistance | 500V DC, 100MΩ min |
| Dielectric Strength | 2,000V RMS 50~60Hz |
| Operating Temperature | -20℃~+85℃ |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| IP Class | IP67, IK10 |
| Torque | 5~14Nm.Max. applied to nut |
| Operating Force | 3-6N max |
