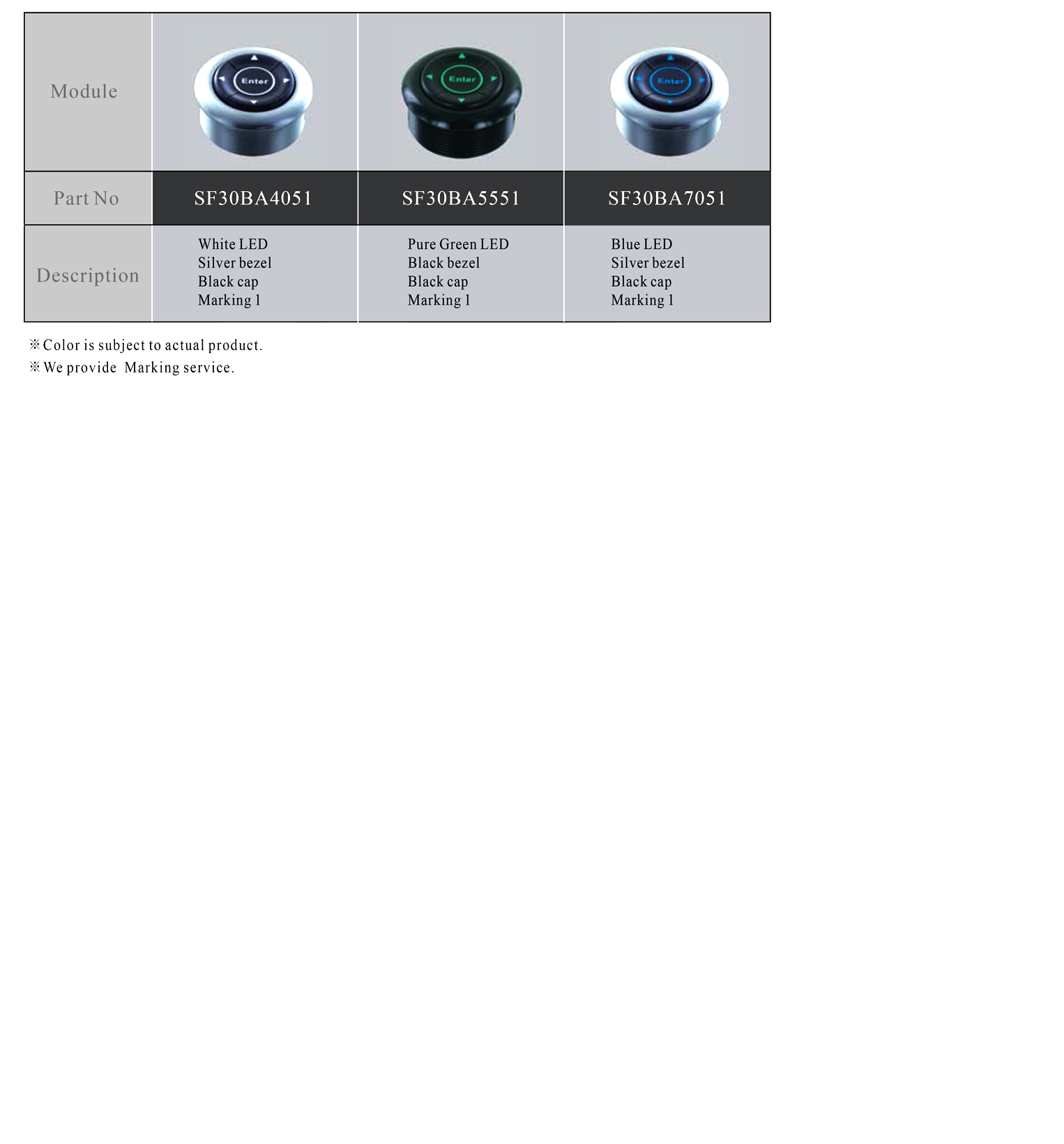

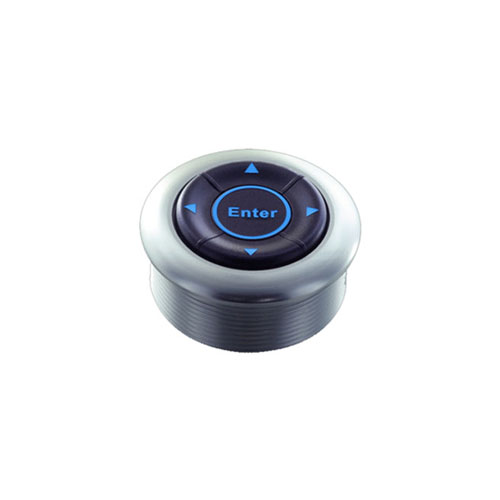

This Navigation Switch features 5 Key Navigation Switches and LED illumination. The housing and cap are available in silver or black, and custom markings can be added. This switch is IP65 rated (from the front).
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| IP Rating | |
| Configuration | |
| Panel Cut-Out Diameter |
|

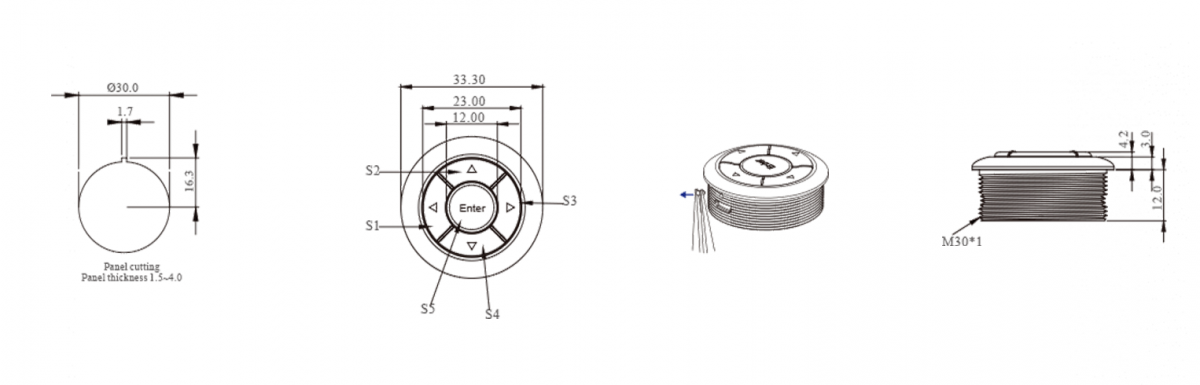

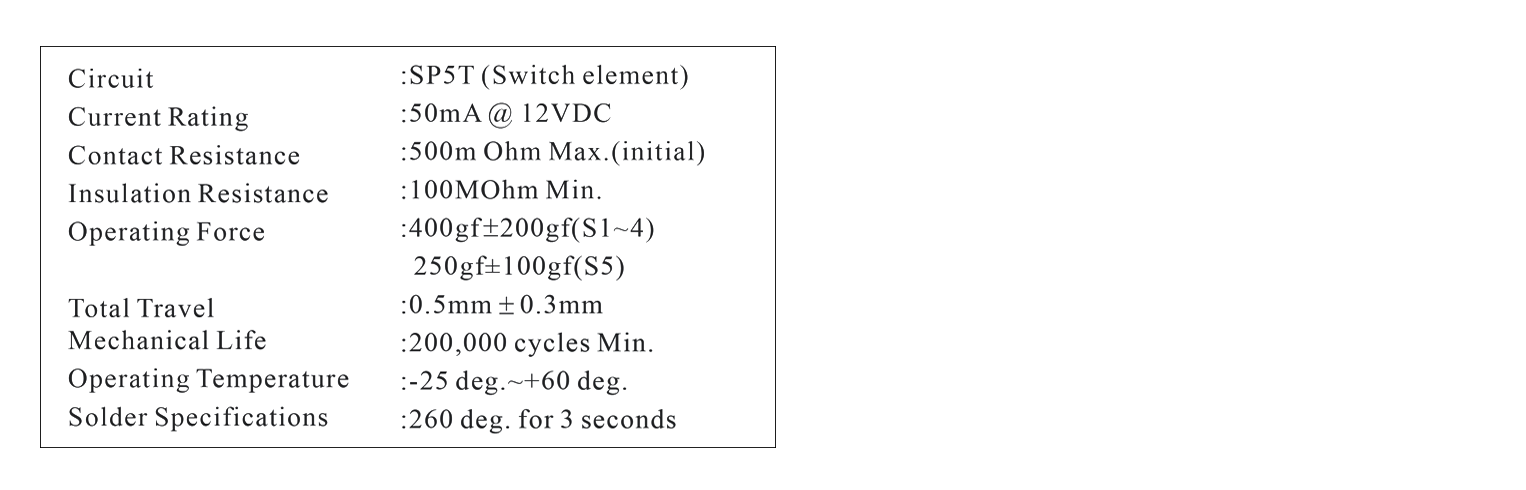

SF30BA-Z Series Specification
|
|
| Circuit | SP5T (switch element) |
| Current rating | 50mA @12VDC |
| Contact resistance | 500mOhm max(initial) |
| Insulation resistance | 100Mohm min |
| Operating force | 400gf+200gf(S1~4)
250gf+100gf(S5) |
| Total travel | 0.5mm+0.3mm |
| Mechanical life | 200,000 cycles min |
| Operating temperature | -25deg~+60deg |
| Solder specifications | 260deg for 3 seconds |
|

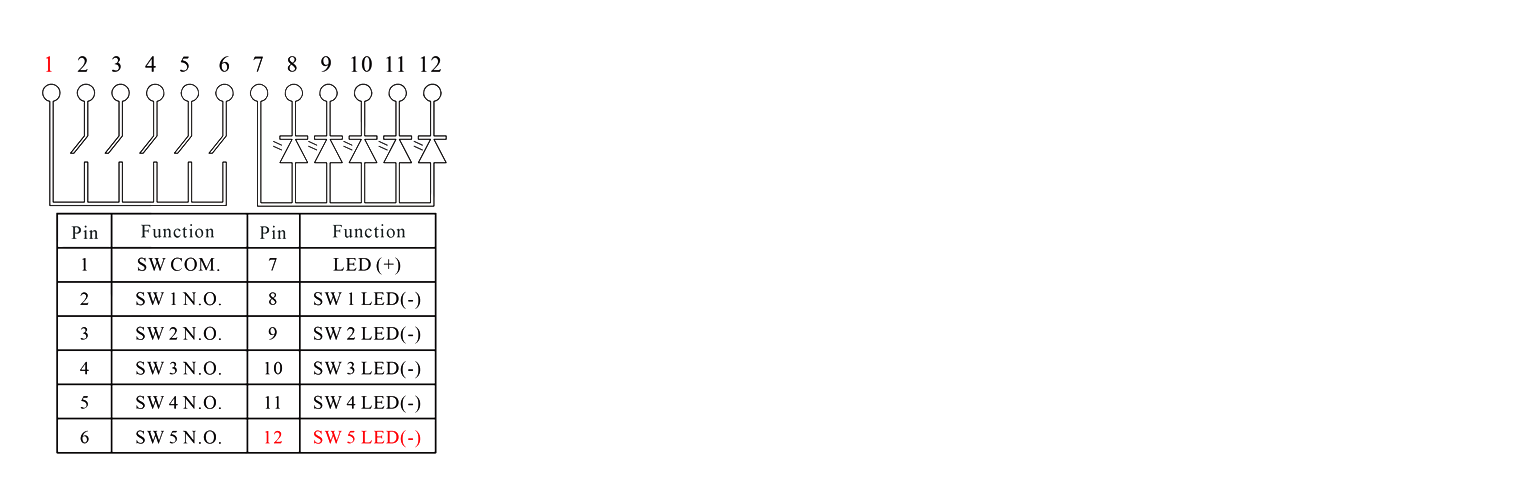

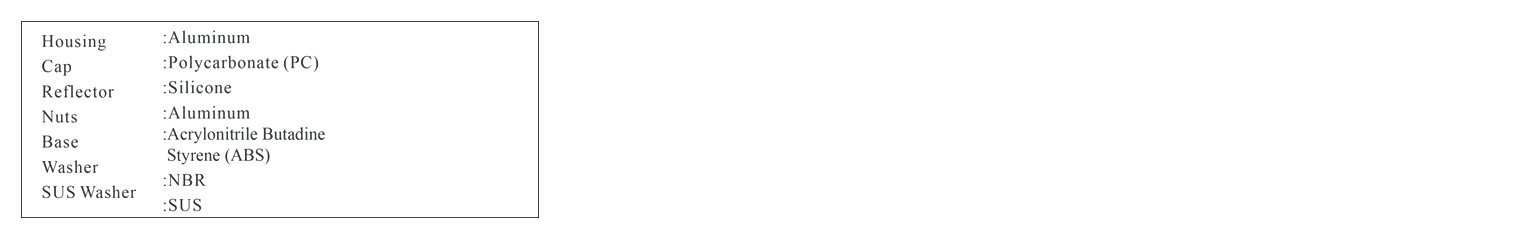

SF30BA-Z Series Materials
|
|
| Housing | Aluminium |
| Cap | Polycarbonate (PC) |
| Reflector | Silicone |
| Nuts | Polyamide (PA) |
| Base | Acrylonitrile butadine styrene (ABS) |
| Washer | NBR |
| SUS washer | SUS |
