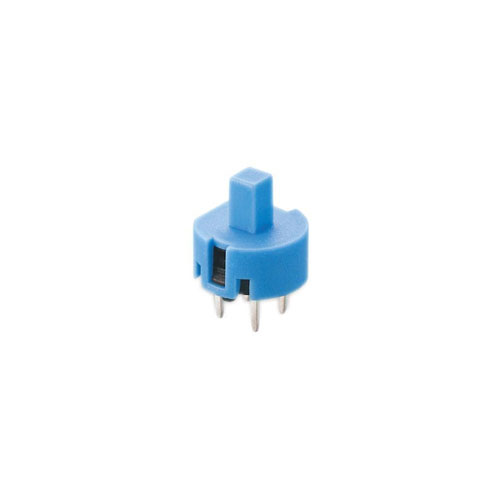

KS01-D plastic push button pcb tact switch, non-illuminated, tactile switch, RJS Electronics Ltd

KS01-D - Image 2

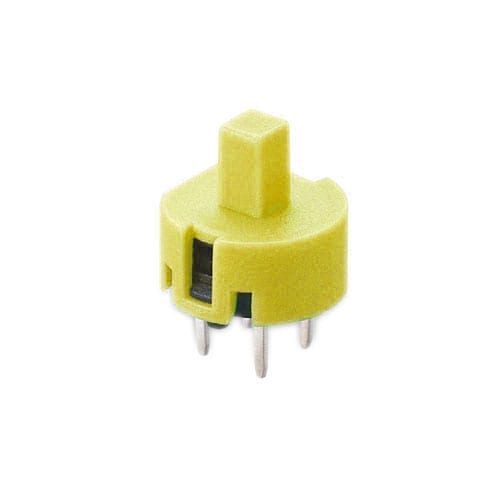

KS01-D - Image 3

Tact switch, tactile push, PCB push button, RJS Electronics LTD.

KS01-D

Push button switch with momentary function. No illumination (LED types available), suitable for use in digital circuits of many electronic devices.

Key Features:

Through hole push button switch
Non-illuminated
Momentary function
Long operating life

Illumination	non-illuminated
Single LED options	Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow
Terminal Options	PCB Terminals (THT)
Orientation	Straight (Vertical)
Function	Push Button Switch, Tact Switch
Product Series	KS01 SERIES

Rating	10mA 35VDC
Insulation Resistance	100MΩ Min at 250 VDC
Dielectric Strength	AC 250V (50/60 Hz for 1 minute)
Contact Resistance	30mΩ Max. (initial)
Electrically Life	V:130gf 100,000 Cycles Min M:250gf 30,000 Cycles Min
Ambient Temperature	-20°C~ +60°C
Operating Force	V: 130 + 50gf M: 250 + 50gf
Travel	1.0 + 0.2 mm

Color	VR	IF	Recommended Operating Current	VF Nor	VF Max
Red	DC 5V	20mA	20mA	1.7V	2.4V
Green	DC 5V	20mA	20mA	1.9V	2.4V
Yellow	DC 5V	20mA	20mA	1.9V	2.4V
Blue	DC 5V	20mA	20mA	3.0V	3.6V
White	DC 5V	20mA	20mA	3.0V	3.6V
