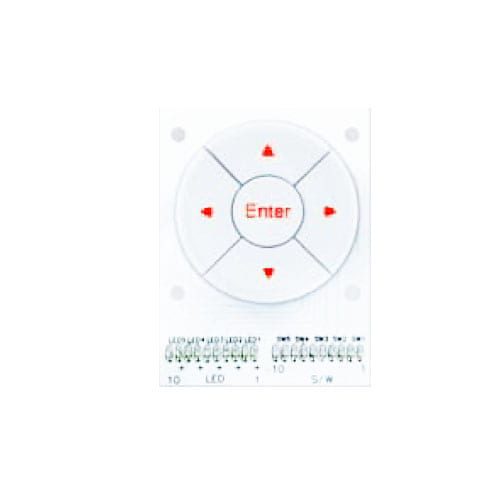

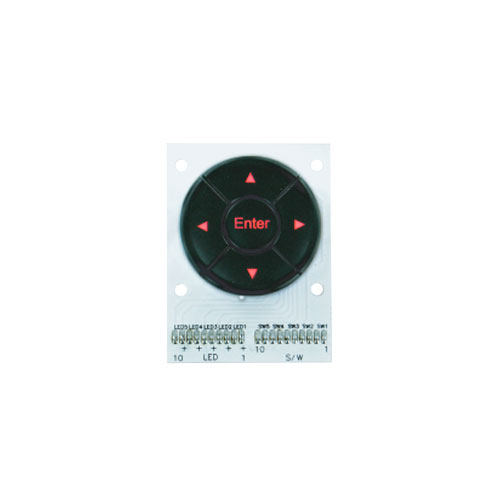

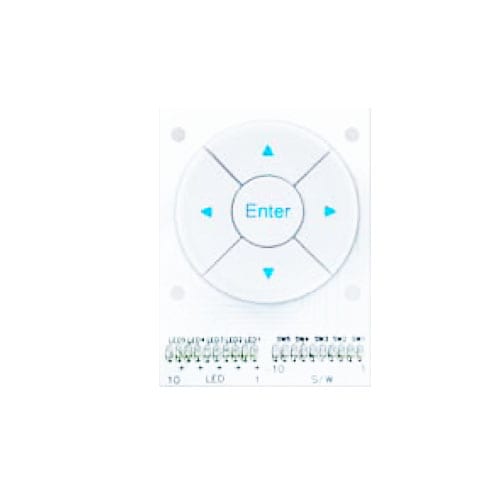

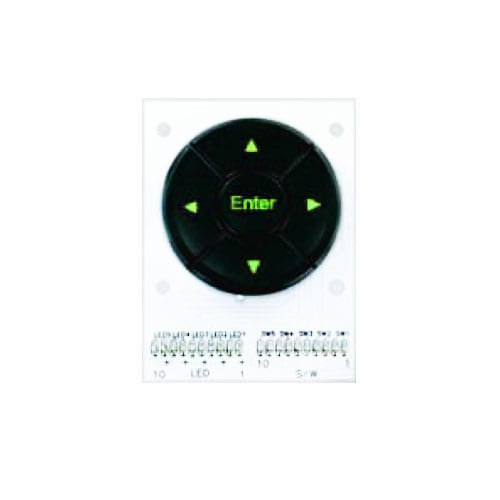

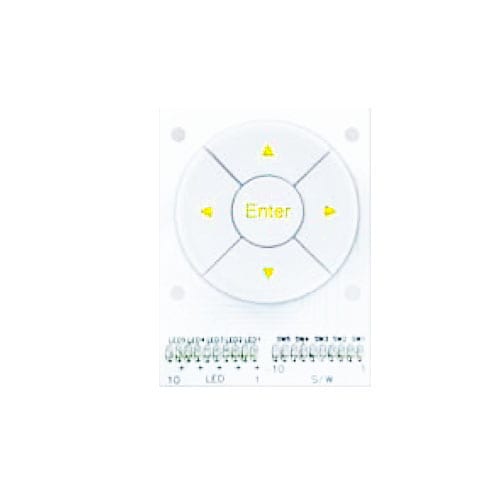

This PCB mount Navigation Module features 5 SPD tactile push button switches with a momentary function and connector quick assemble. Available with black or white caps, LED illumination and custom laser markings.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Single LED options | |
| Cap / Actuator Shape | |
| Switch Circuit |
|
SPD5K Series Specification
|
|

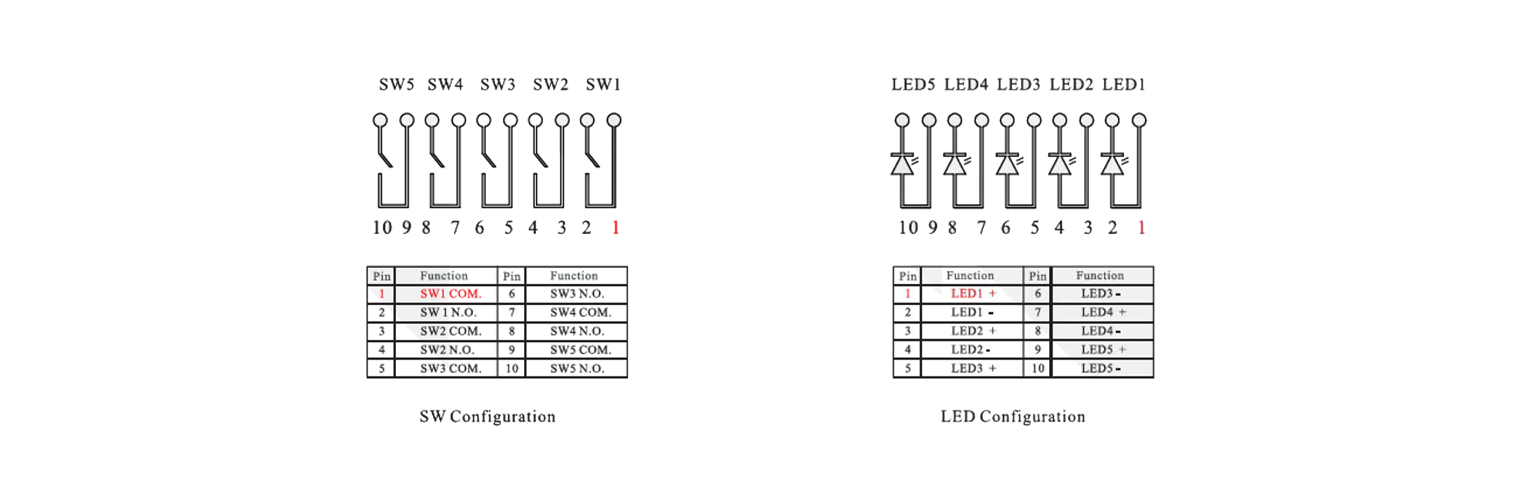

| Circuit | SP5T |
| Current rating | 50mA @ 12VDC |
| Contact resistance | 100mOhm max(initial) |
| Insulation resistance | 100Mohm min |
| Operating force | 220gf+50gf |
| Total travel | 0.3mm+0.1mm |
| Mechanical life | 1,000,000 cycles min |
| Operating temperature | -10deg~+60deg |
|

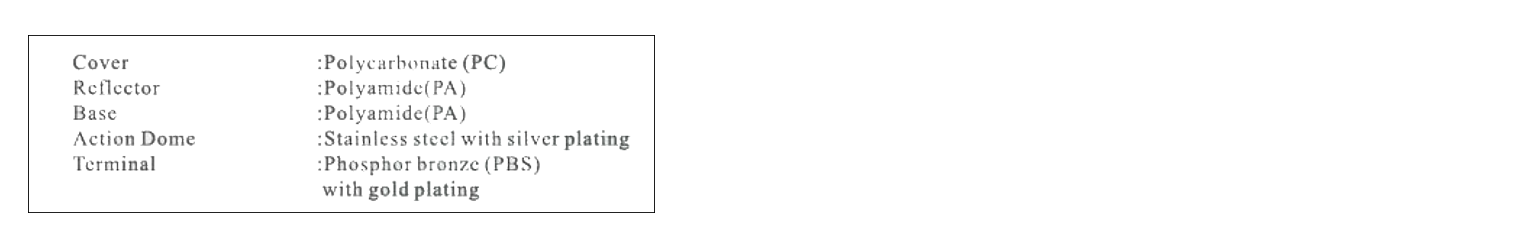

SPD5K Series Materials
|
|
| Cover | Polycarbonate (PC) |
| Reflector | Polyamide (PA) |
| Base | Polyamide (PA) |
| Action dome | Stainless steel with silver plating |
| Terminal | Phosphor bronze (PBS) with gold plating |
