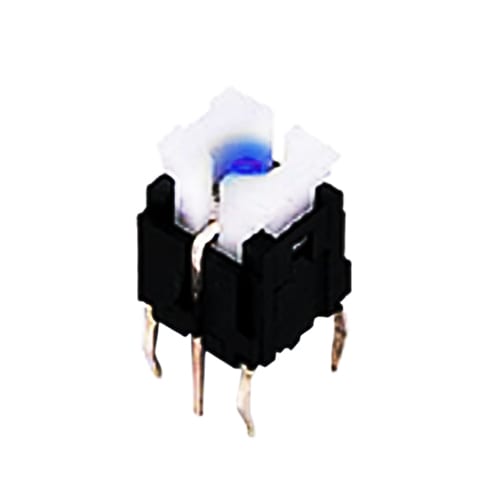

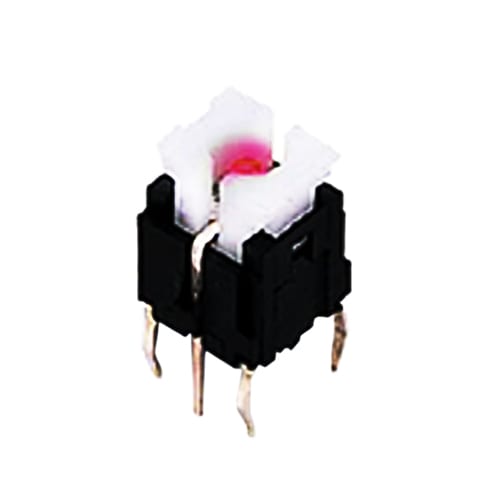

TP6141

Momentary function tactile switch, perfect for any application that requires a simple on/off function. This switch features both single and bi-colour LED illumination, providing visual feedback to users. With a rating of 50mA and 12VDC, this switch is suitable for a wide range of electronic devices.

Key Features:

  • Switch only
  • Momentary function
  • Single / bi-colour LED illumination
  • Tactile switch
  • Rating: 50mA 12VDC
Illumination

Single LED options

, , , , , , , , ,

Terminal Options

Orientation

Function

,



TP6141 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -20°c~ +70°c
Operating force 160 + 50gf (Momentary)



Travel 0.25 + 0.1mm

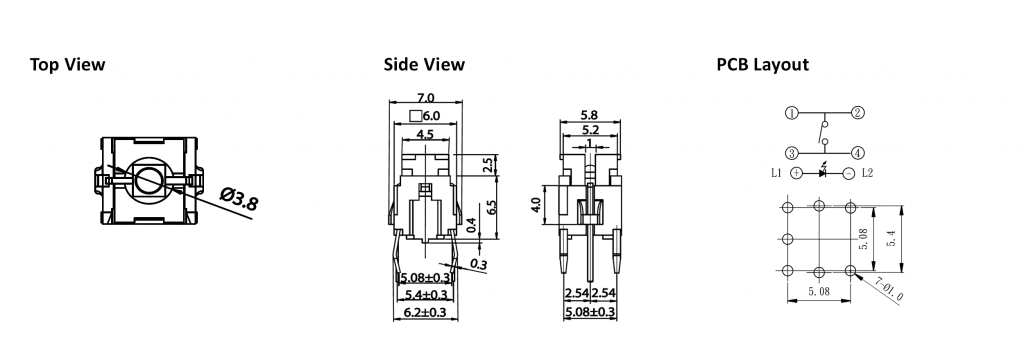

pcb switch with led illumination drawing, rjs electronics ltd
