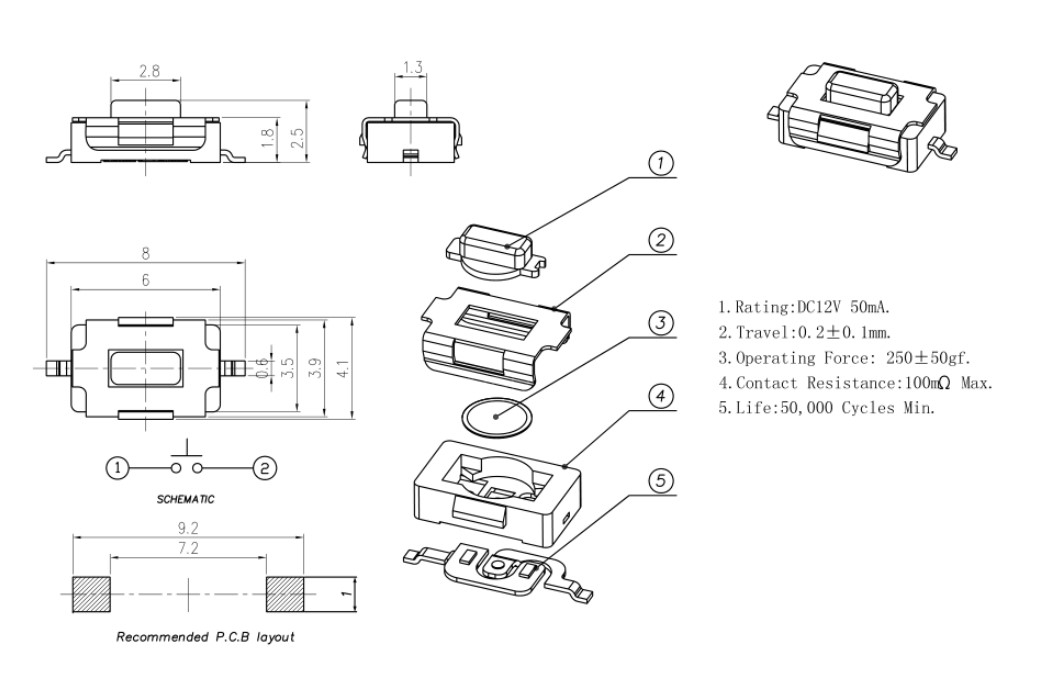

On/off SMD tactile push button switch featuring a total travel of 0.25mm. Equipped with momentary function.
Key Features:
| Configuration | |
|---|---|
| Illumination | |
| Orientation | |
| Function | |
| Product Series |
| Type: | Snap-in | Operating force: | 250±50gf |
| Operating Direction: | Top Push | Travel: | 0.25mm |
| Operating Life: | Over 50,000 cycles | Initial contact resistance: | 100mΩ max. |
| Stem color: | Silver | Operating Temperature: | -25℃~+105℃ |
| Stem height: | H=2.5mm | Series type: | SMD type |
| Rating (max.): | 50mA 12V DC | Rating (min.): | 10µA 1V DC |
| SPQ: | 1,000pcs | OEM or ODM: | Available |
