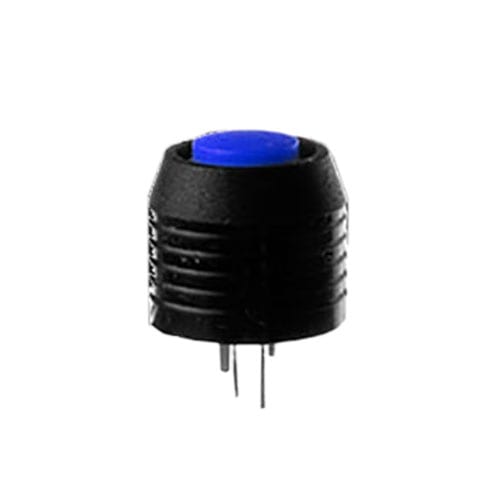

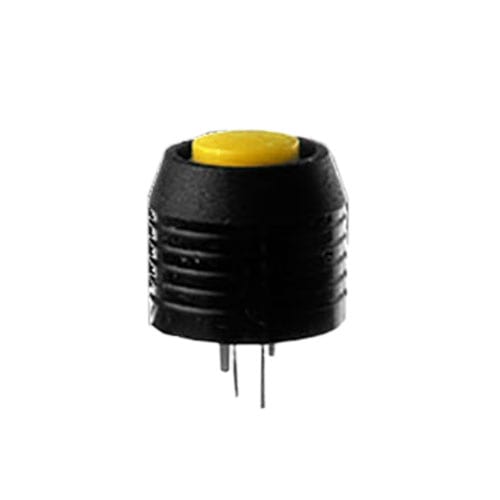

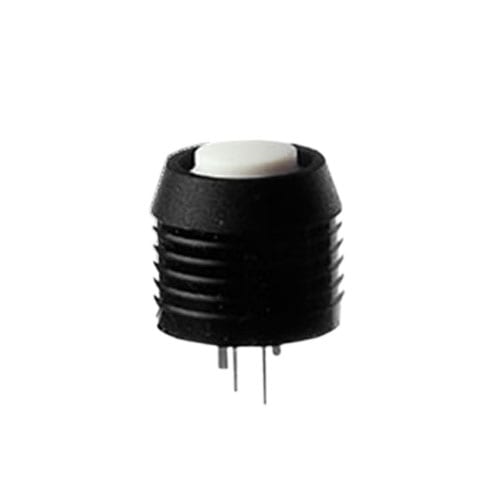

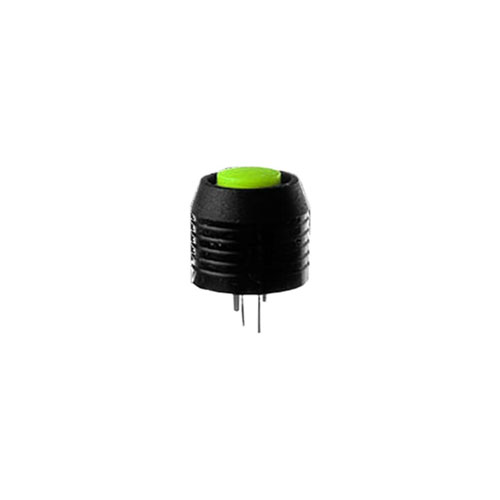

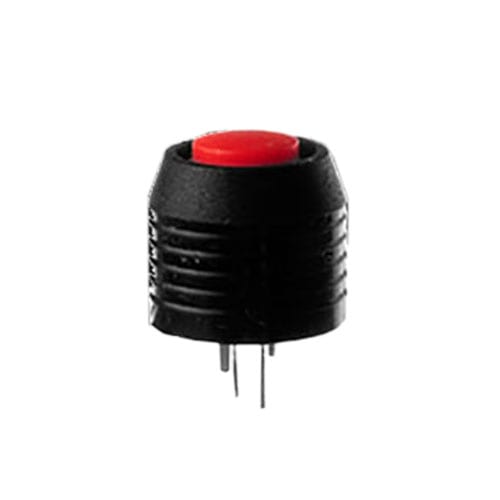

This PCB Tactile Push Button Switch has a rubberised cap and body. It features single, bi-colour or RGB LED illumination options, momentary function and an IP67 rating. This switch has high brightness and is durable.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Configuration | |
| Multi-Colour LED Options | |
| IP Rating | |
| Product Material Options | |
| Single LED options |
|
SPK-Z Series Specification
|
|
| Current rating | 50mA |
| Voltage rating | 12 VDC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 550gf + 100gf (S1~4) |
| Total travel | 1.0mm + 0.3mm |
| Mechanical life | 1,000,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Function | Momentary (SPST) |
| Operating temperature | -10deg~+60deg |
|
SPK-Z Series Materials
|
|
| Cap | Silicone |
| Base | Polyamide (PA) |
| Switch terminal | Bronze with gold plating |
| Action dome | SUS with silver plating |
