| Product Series | |
|---|---|
| Illumination | |
| Configuration | |
| Orientation | |
| Function |

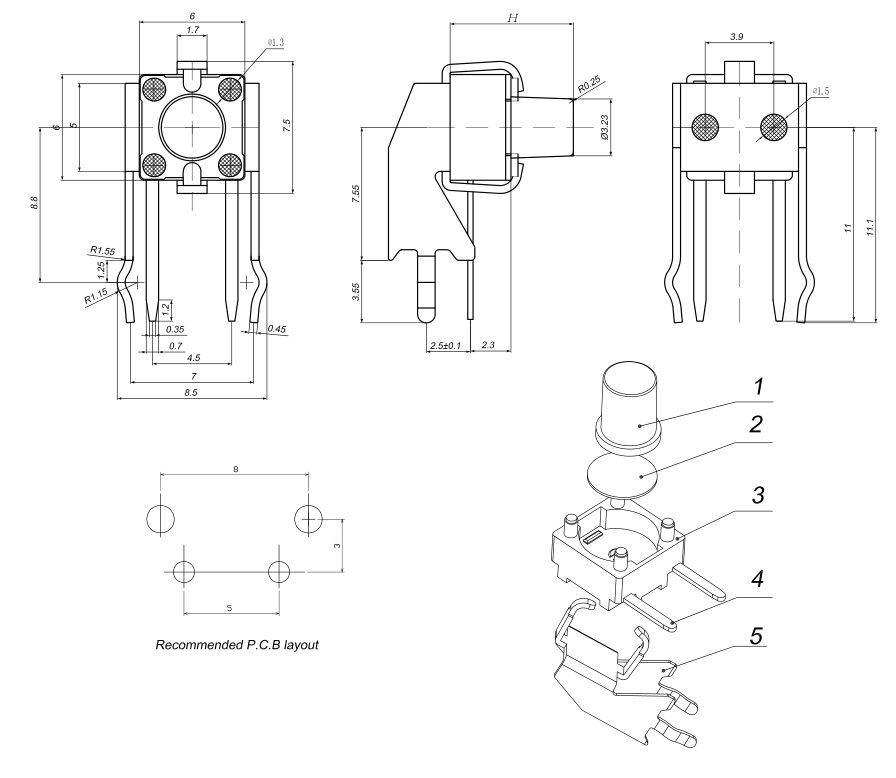

Non-Illuminated PCB tact Switch with momentary function. Suitable for a wide range of applications.
| Product Series | |
|---|---|
| Illumination | |
| Configuration | |
| Orientation | |
| Function |
| Type: | Snap-in | Operating force: | 0.98N |
| Operating Direction: | Top Push | Travel: | 0.25mm |
| Operating Life: | Over 100,000 cycles | Initial contact resistance: | 100mΩ max. |
| Stem colour: | Black | Operating Temperature: | -40℃~+90℃ |
| Stem height: | H=4.3-13mm | Series type: | right angle type |
| Rating (max.): | 50mA 12V DC | Rating (min.): | 10µA 1V DC |
| SPQ: | 1,000pcs | OEM or ODM: | Available |
