| Function | |
|---|---|
| Product Series | |
| Rating | 50 mA 12VDC |
| Insulation Resistance | 100 mΩ min (500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1min) |
| Contact Resistance | 30 mΩ max |
| Electrical Operations |

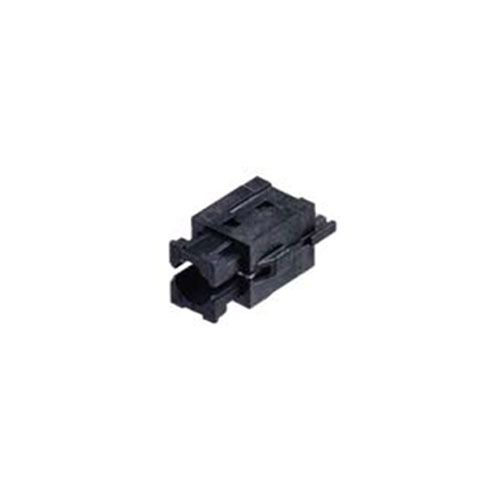

PCB push button switch, adequate for cable soldering. Available in several LED colours, including single or bi-colour options. Operating switches in all types of electronic equipment such as audio, office equipment, communications and more.
Key Features:
| Function | |
|---|---|
| Product Series | |
| Rating | 50 mA 12VDC |
| Insulation Resistance | 100 mΩ min (500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1min) |
| Contact Resistance | 30 mΩ max |
| Electrical Operations |
| Item | Standard |
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 30mΩ Max. (Initial) |
| Electrically Life | 300,000 Cycles Min |
| Ambient Temperature | -25°C~ +70°C |
| Operating Force | 160 ± 50gf |
| Travel | 0.25 ± 0.1mm |
