| Configuration | |
|---|---|
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |
THT push button switch, without LED illumination – supports custom caps. Ideal for a range of applications including Audio & Broadcast electronic devices.
Key Features:
| Configuration | |
|---|---|
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |
|

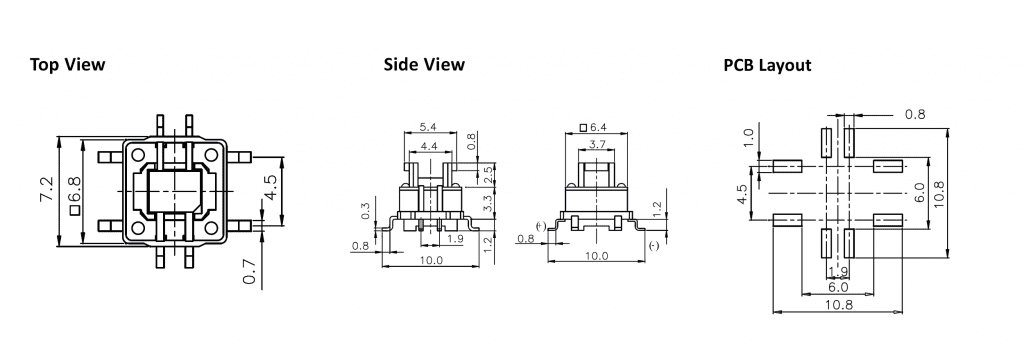

TP6151 Series Specification
|
|
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500VCD) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrical Life | 300,000 Cycles Min |
| Ambient Temperature | -25°c~ +70°c |
| Operating force | 160 + 50gf
|
