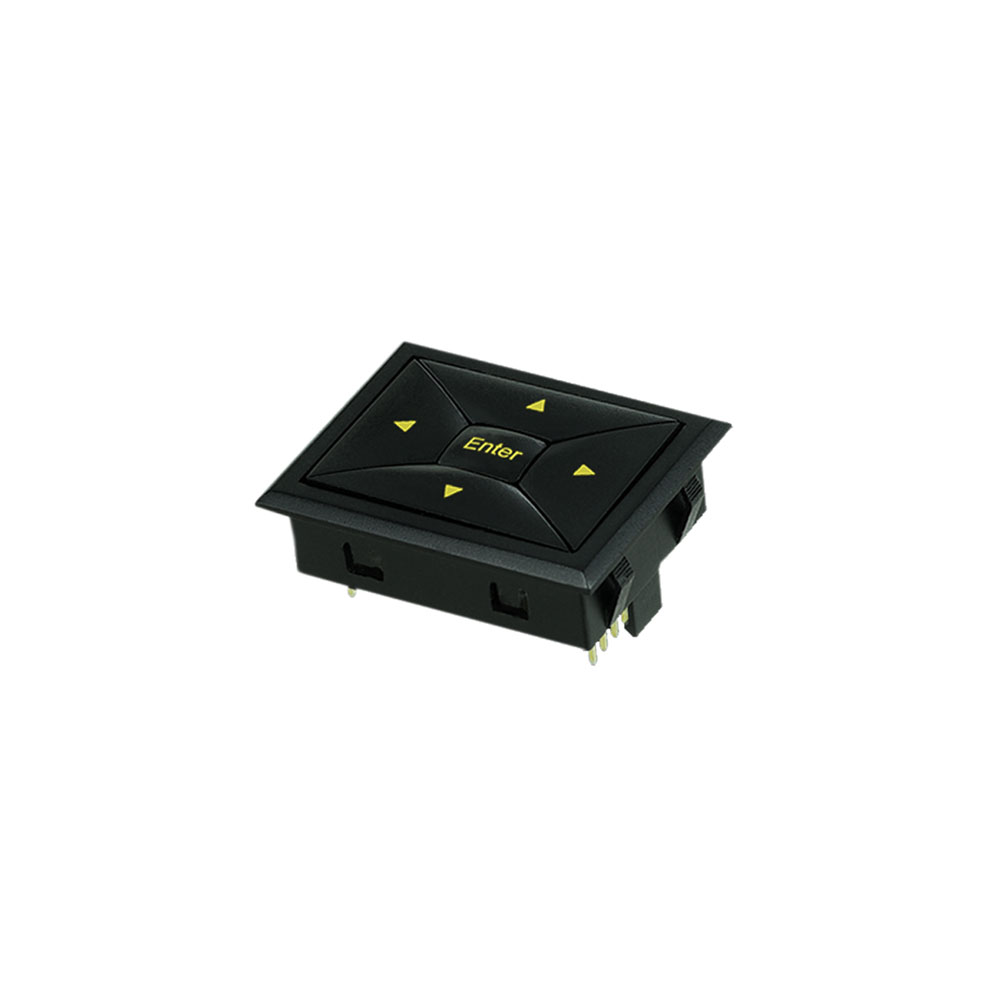

Navigation Switch: SNA4

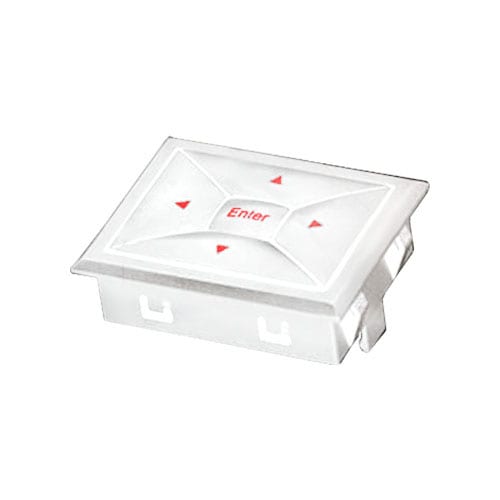

This rectangular Navigation Switch features a 5-way tactile push button function and LED illumination. The housing and cap is available in black, grey or white, and custom markings can also be added.

Key Features:

  • 5-way Navigation Switch with tactile momentary push button function.
  • Momentary function
  • Full LED illumination
  • 50 mA @ 12VDC

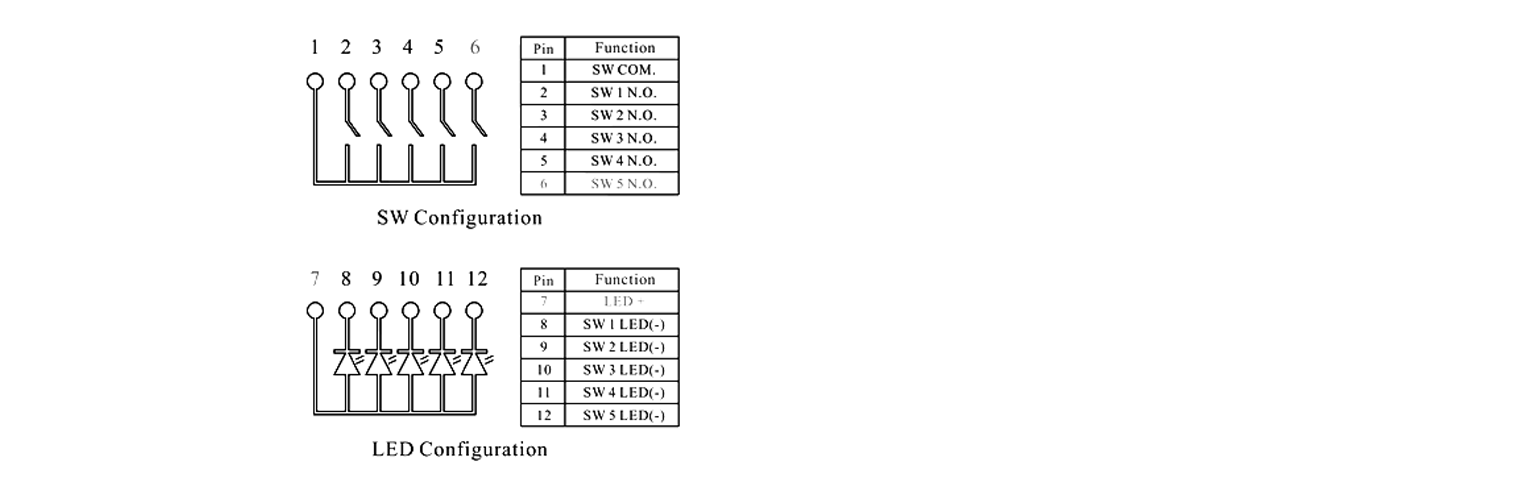

  • SP5T/ Common Bus terminal pinout
  • Custom markings available

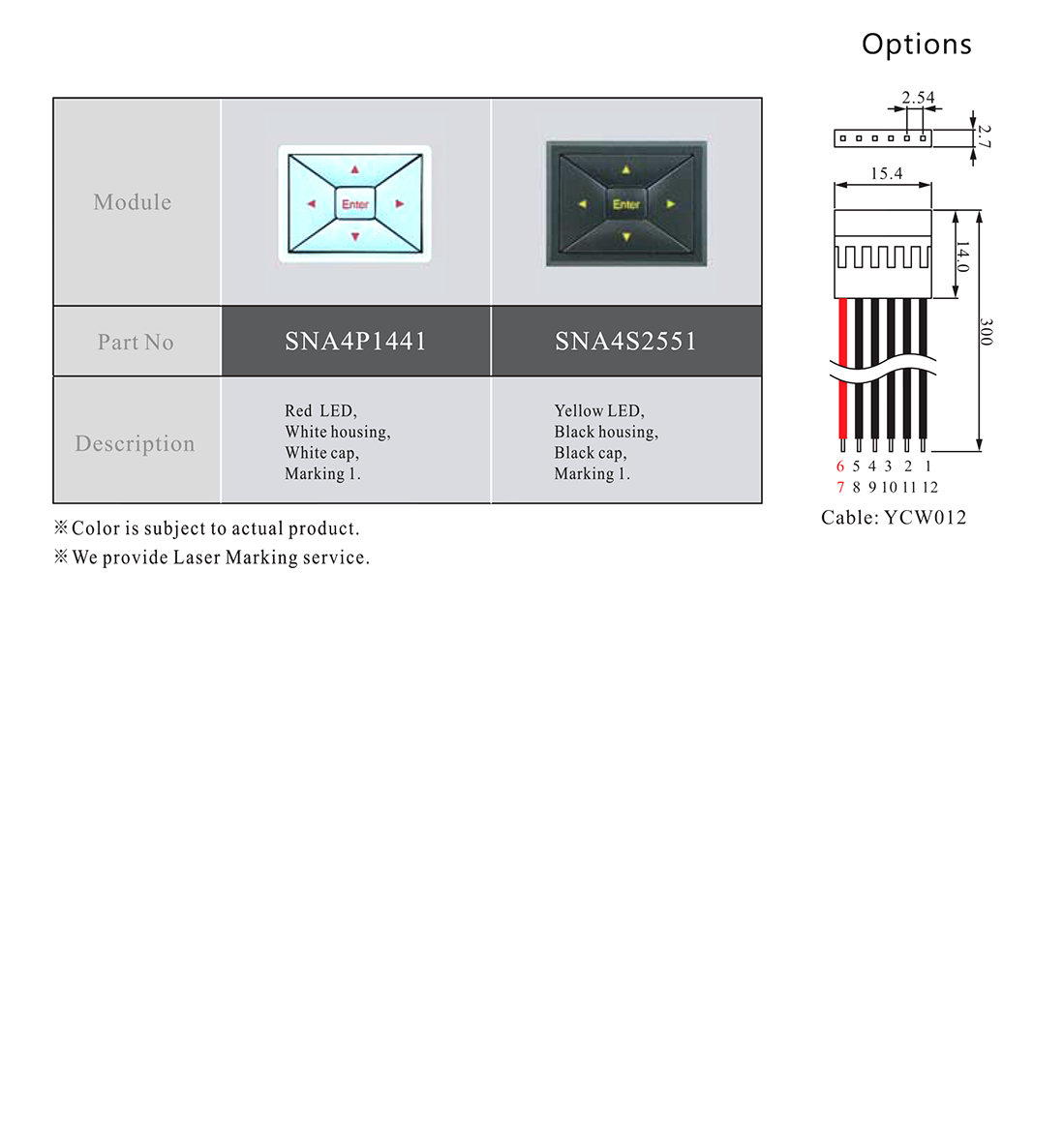

Product Series

Configuration

Function

Cap / Actuator Shape

Illumination

,

Terminal Options

Switch Travel

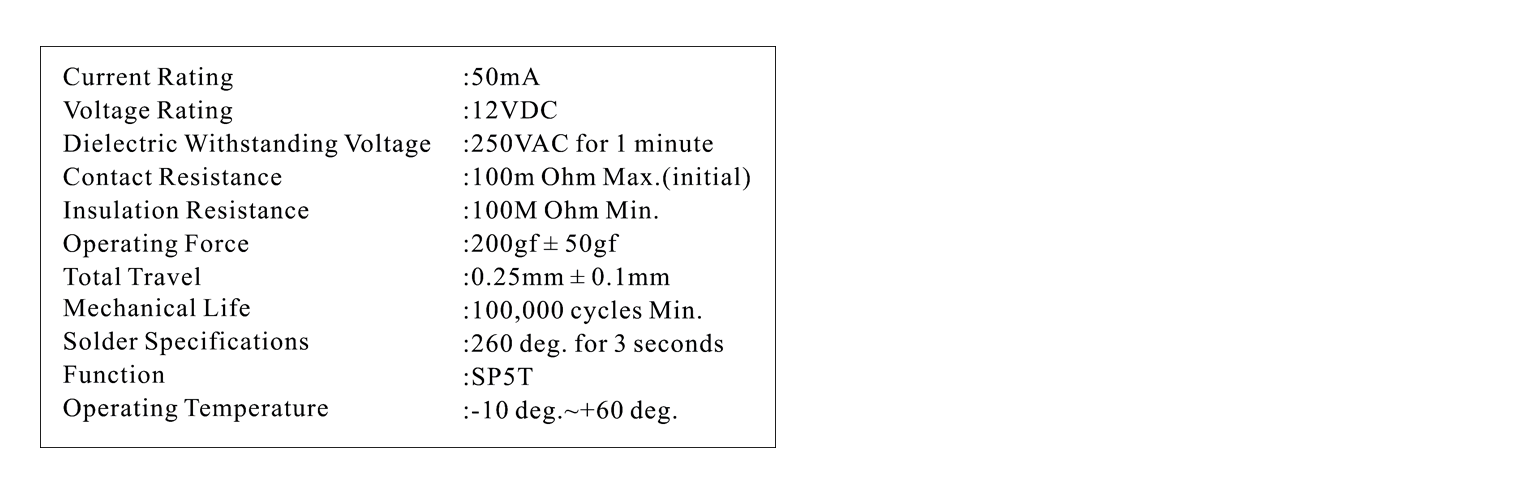

SNA-Z Series Specification



Current rating 50mA
Voltage rating 12 VDC
Dielectric withstanding voltage 250VAC for 1 minute
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 230gf + 50gf (tactile)/

60gf + 40gf (noisless)

Total travel (tactile) 0.4mm + 0.2mm
Total travel (noiseless) 1.0mm + 0.3mm
Mechanical life 1,000,000 cycles min
Solder specifications 260 deg for 3 seconds
Function Momentary (SPST)
Operating temperature -10deg~+60deg


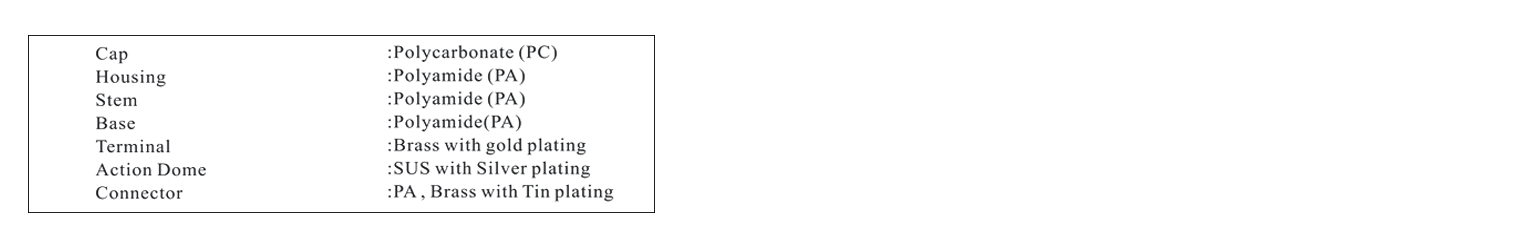

SNA-Z Series Materials



Cap Polycarbonate (PC)
Base Polyamide (PA)
Reflector Polycarbonate (PC)
Switch terminal Bronze with gold plating
Housing Polyamide (PA)
Action dome Phosphor bronze with gold plating (noiseless)

Phosphor bronze with silver plating (tactile)

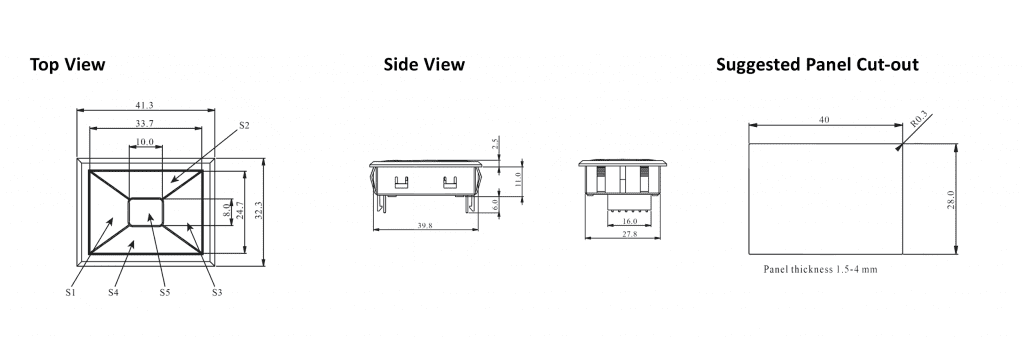

Drawing of Navigation Switch: SNA4, 5-way Navigation Switch with tactile momentary push button function, custom led illumination, rjs electronics ltd
