3MSeries - 3A - VS2 - VS3 -SPDT - Rocker Switches, Panel Mount switches. Panel Mount, momentary functioning Rocker switches by RJS Electronics Ltd, Rocker Switches, on off switch, plastic, metal, PCB, panel mount switch, available with and without LED illumination, IP rated, miniature sealed rocker and paddle switch, SPDT – 3PDT. RJS Electronics Ltd.

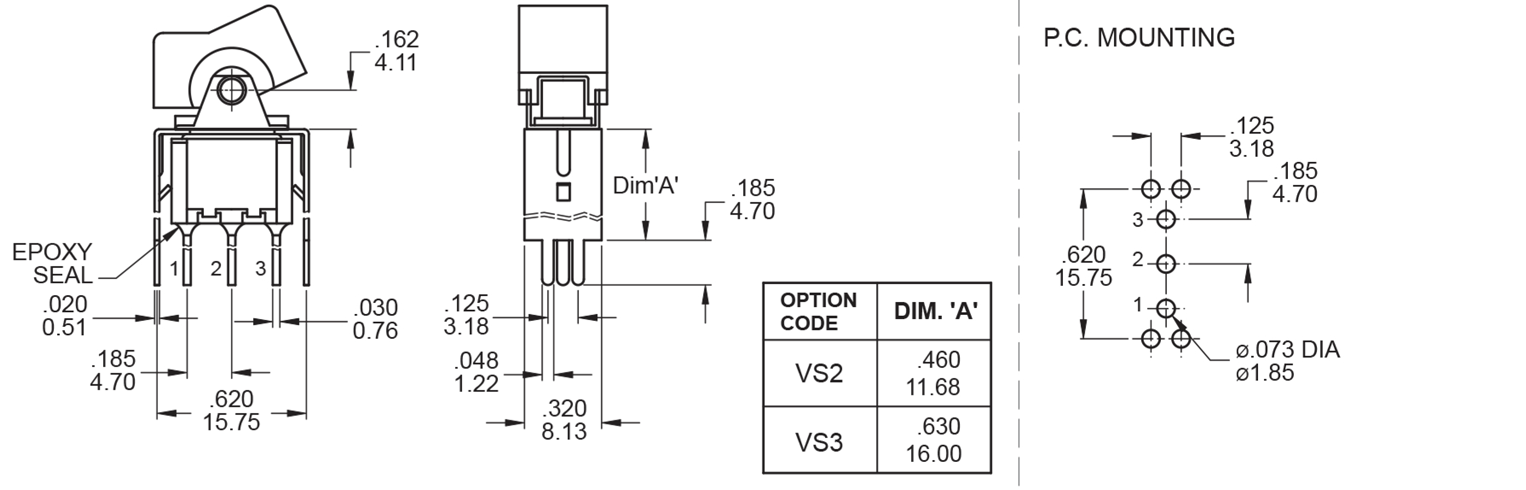

Rocker Switch: 3M-VS2-VS3-SPDT - Image 2
Rocker Switch: 3M-VS2-VS3-SPDT - Image 3
Rocker Switch: 3M-VS2-VS3-SPDT - Image 4

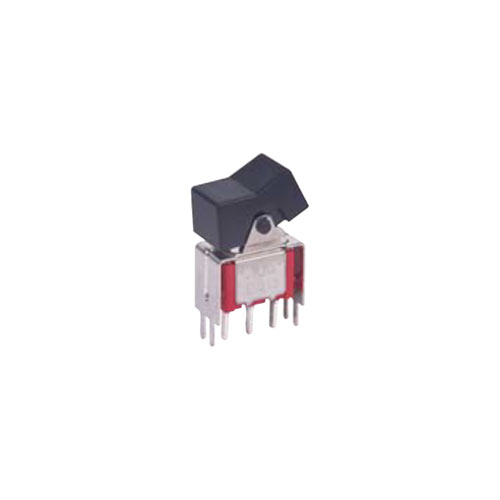

Rocker Switch: 3M-VS2-VS3-SPDT

This PCB Rocker Switch features vertical bracket mounting and an SPDT configuration. You can select switches with a momentary or latching function and 2 or 3 positions.

Key Features:

  • Rocker switch
  • Vertical bracket mount
  • 2 or 3 positions
  • Momentary or latching
  • SPDT
  • Contact rating up to 5A
  • Full 3M series
Data Sheet
Function

Illumination

Mechanical Operations

Product Series

Contact Resistance:

10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts.
Dielectric Strength:

1,000 Vrms min.@sea level.
Insulation Resistance:

1,000 MΩ min.
