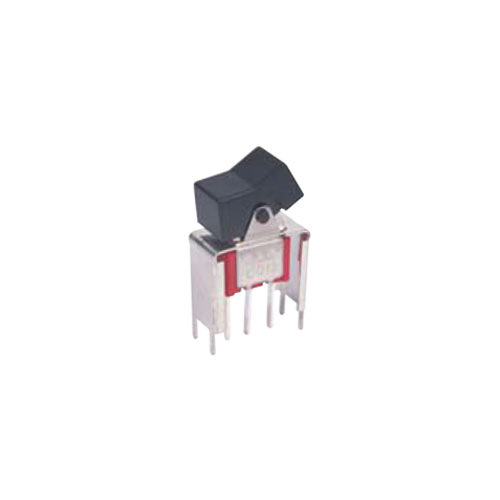

Rocker Switch: 3M-VS4-VS5-SPDT

This PCB Rocker Switch features an SPDT configuration and vertical bracket mounting. It is available with a momentary or latching function and 2 or 3 positions.

Key Features:

  • Rocker switch
  • Vertical bracket mount
  • 2 or 3 positions
  • Momentary or latching
  • SPDT
  • Contact rating up to 5A
  • Full 3M series
Data Sheet
Function

Illumination

Mechanical Operations

Product Series

Insulation Resistance:

1,000 MΩ min.
Dielectric Strength:

1,000 Vrms min.@sea level.
Contact Resistance:

10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts.
