PB6136F

Dot LED illuminated PCB button – single or bi-colour available. Choose from momentary or latching function.

Key Features:

  • PCB mounting – THT
  • Switch circuit – DPDT (8 pin)
  • Momentary function / latching function
  • Illuminated & non-illuminated options
  • Round button with frame
Product Series

Configuration

Illumination

Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Function

,

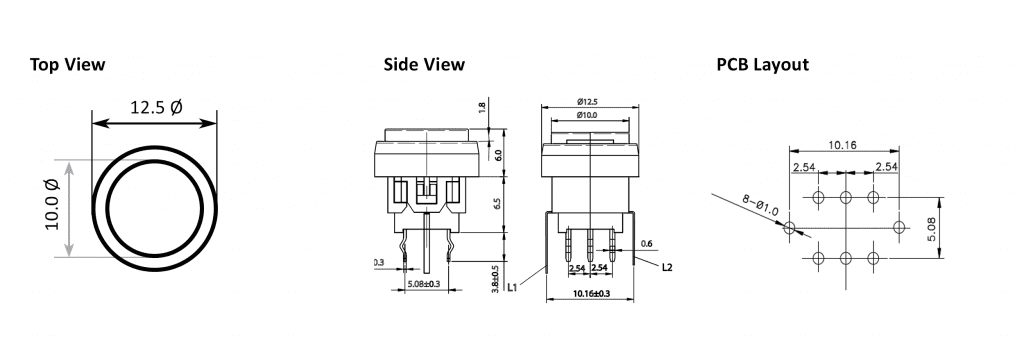

PB6136F - drawing - PCB, push button switch, switch with LED Illumination, latching and momentary push button function, IP RATING, single or bi-colour LED illumination. RJS Electronics Ltd.



PB613 Series Specification



Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)
