PB61416FL

PCB push button switch with a tactile ‘clicky feel’. Rated at 50mA 12VDC, choose from single or bi-colour LED illumination.

Key Features:

  • PCB push button
  • Round cap
  • Momentary function
  • Single/bi-colour LED
  • Rating: 50mA 12VDC
  • Tactile switch

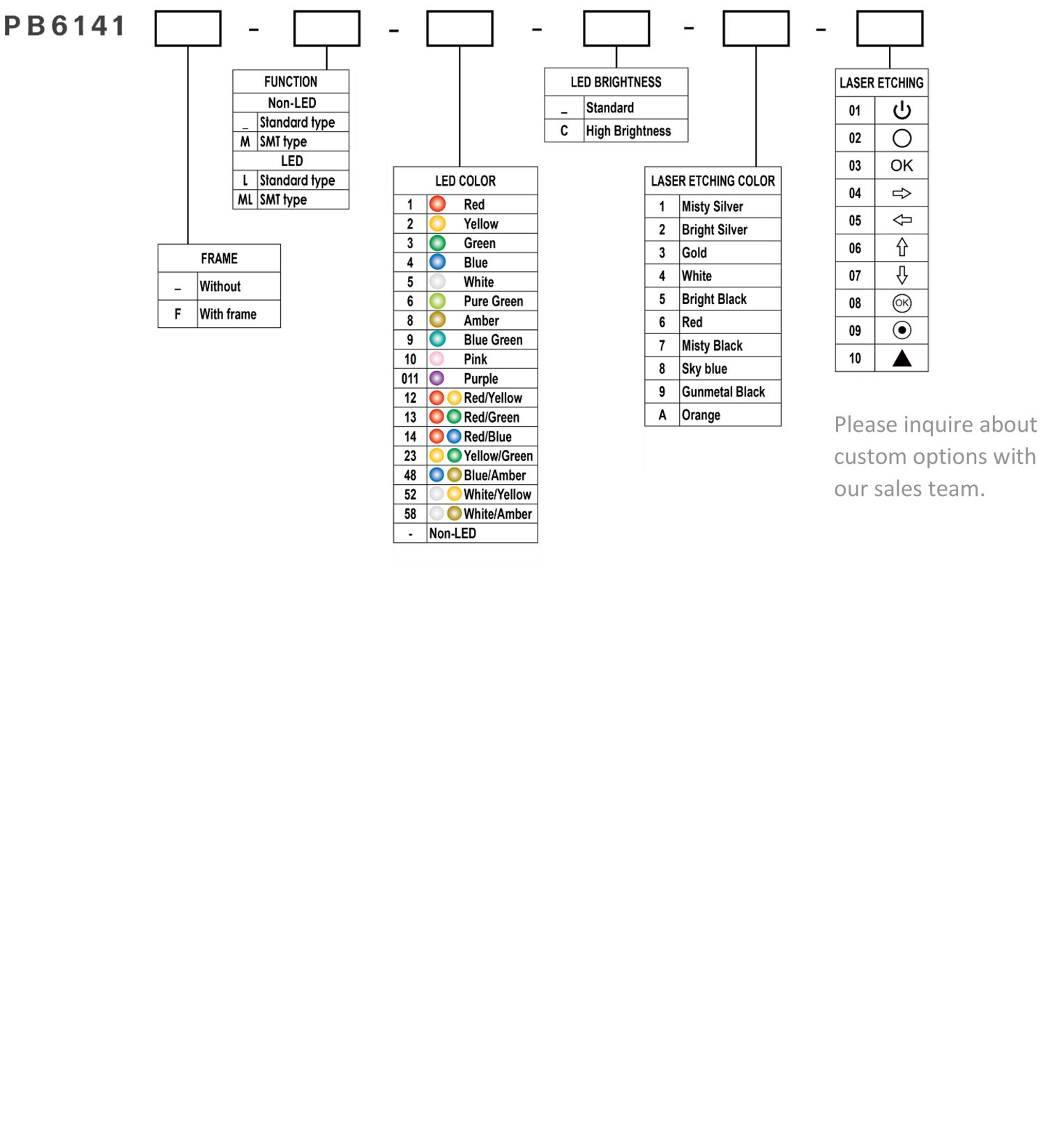

Configuration

Illumination

Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Cap / Actuator Shape

Terminal Options

Orientation

Function

,

Product Series

,

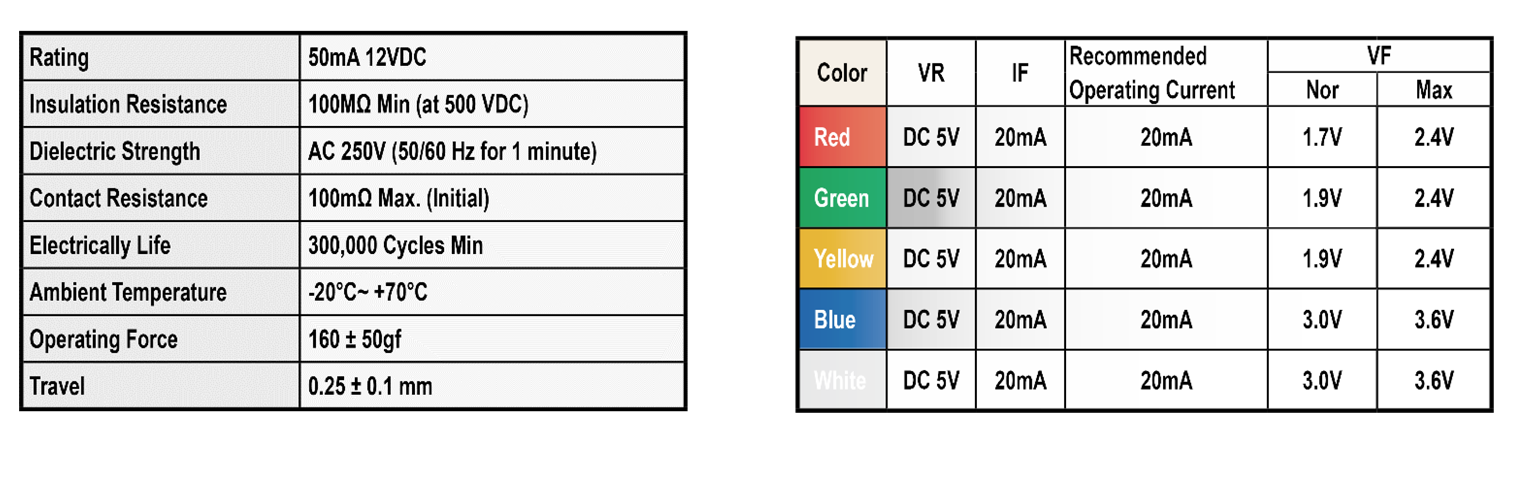

PB614 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -20°c~ +70°c
Operating force 160 + 50gf
Travel 0.25 + 0.1mm
