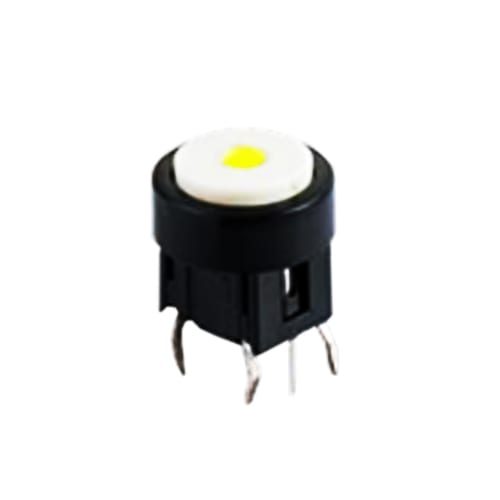

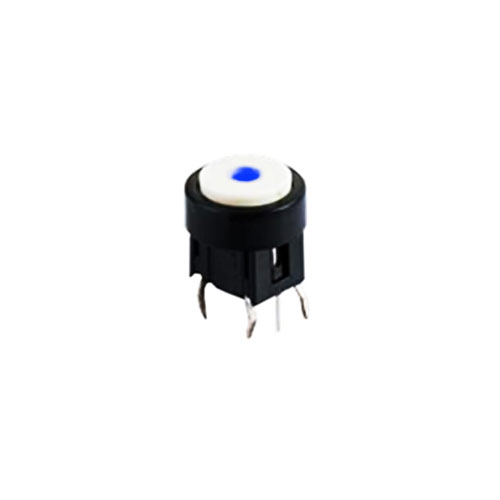

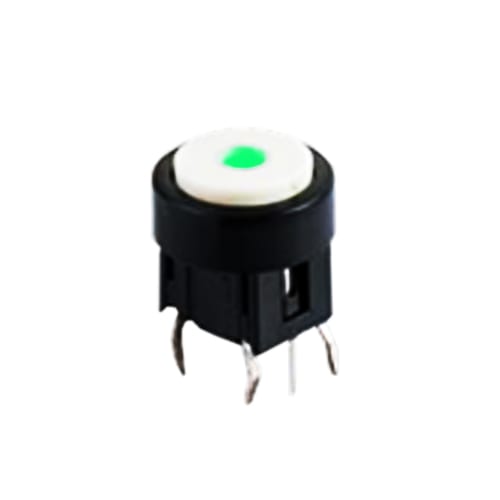

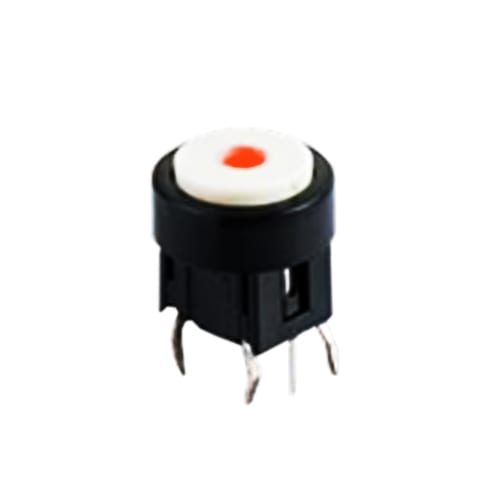

PB6142F

Illuminated PCB Push Button switch

LED Illuminated Push Button Switch
Momentary function
Single/Bi-colour LED illumination
Tactile switch

Applications

Audio & Broadcast
Boatbuilding & Marine
Home Automation
Industrial Controls

Configuration	1NO (SPST) [push to make]
Illumination	Custom symbol
Single LED options	Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow
Cap Dimensions (mm)	7.5
Cap / Actuator Shape	Round, With Frame
Terminal Options	PCB Terminals (THT)
Orientation	Straight (Vertical)
Function	Tact Switch
Product Series	PB614, PB614 / TP614

PB614 Series Specification
Rating	50mA 12VDC
Insulation Resistance	100MΩ Min (at 500VDC)
Dielectric Strength	AC 250V (50/60 Hz for 1 minute)
Contact Resistance	50mΩ Max. (Initial)
Electrical Life	300,000 Cycles Min
Ambient Temperature	-20°c~ +70°c
Operating force	160 + 50gf
Travel	0.25 + 0.1mm
