PB6143F

The PB614 Series is a set of push button tact switches designed for use in Audio, Broadcasting and other industries. Featuring LED illumination and a momentary tactile click.

Key Features:

  • LED Illuminated Push Button Switch
  • Momentary function
  • Square cap
  • Single/ bi-colour LED illumination
  • Rating: 50mA 12VDC
  • Tactile switch

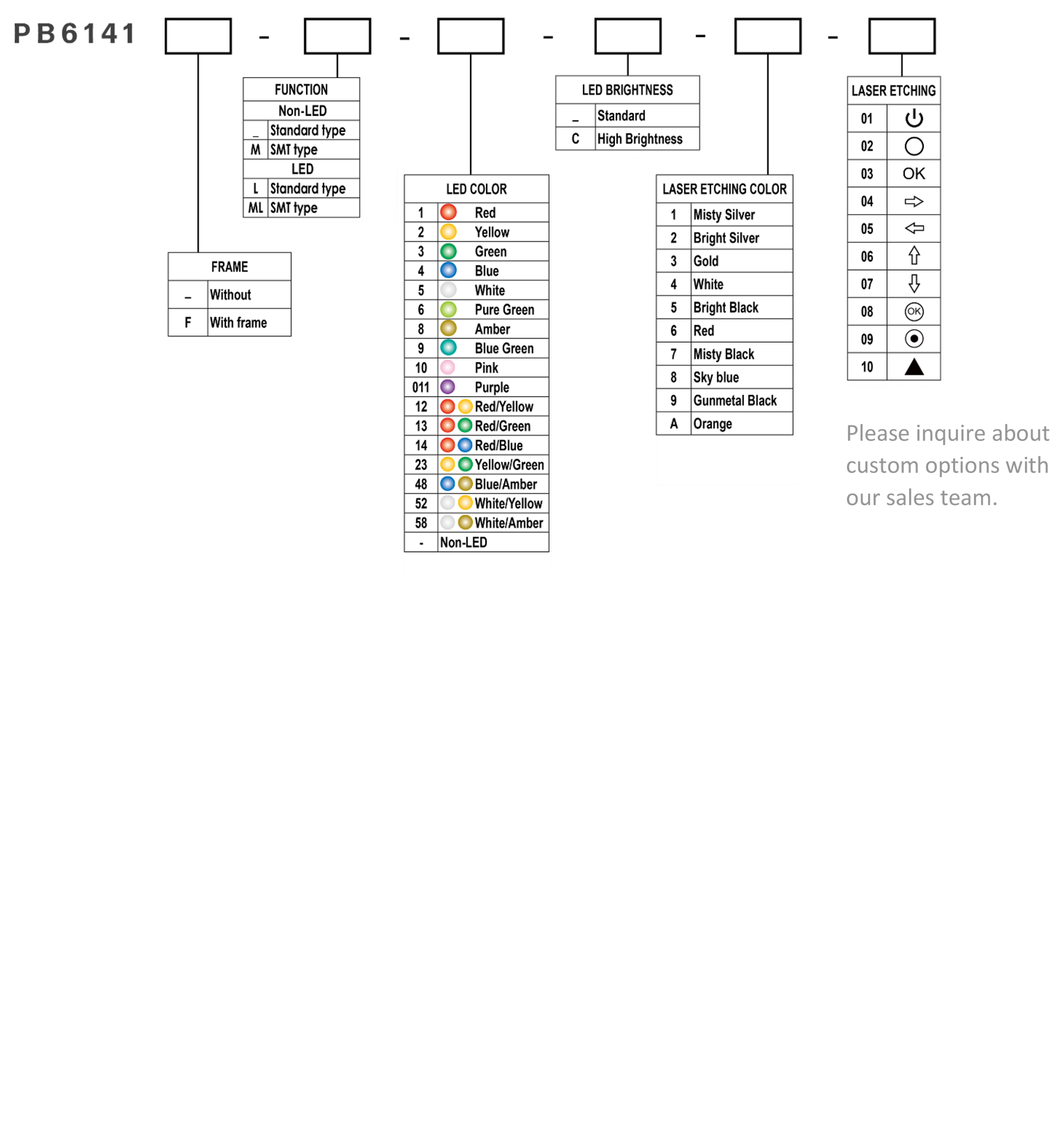

Configuration

Illumination

Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Cap / Actuator Shape

,

Terminal Options

Orientation

Function

Product Series

,



PB614 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -20°c~ +70°c
Operating force 160 + 50gf
Travel 0.25 + 0.1mm
