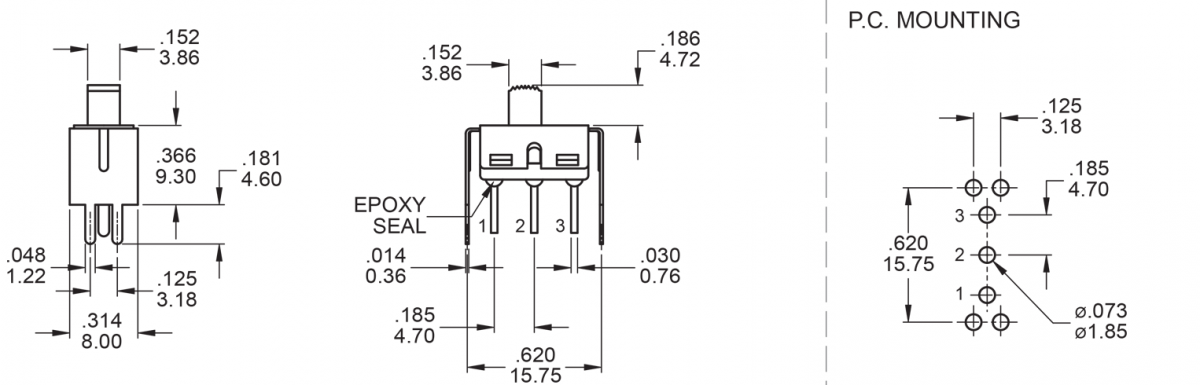

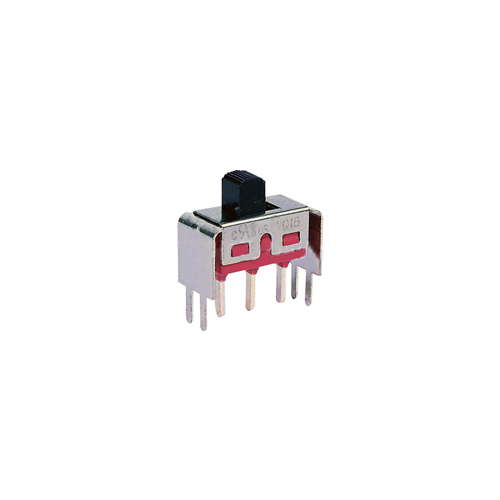

This Slide Switch has an SPDT configuration and vertical bracket PCB mounting. Available with 2 or 3 position function and a contact rating up to 5A.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Configuration | |
| Mechanical Operations | |
| Product Series |
| Mechanical life | 30,000 make-and-break cycles |
| Contact resistance | 10mΩ max. initial @ 2-4VDC
100mA for both silver and gold plated contacts |
| Insulation resistance | 1000MΩ min |
| Dielectric strength | 1000 Vms min. @sea level |
| Operating temperature | -30°C to 85°C |
