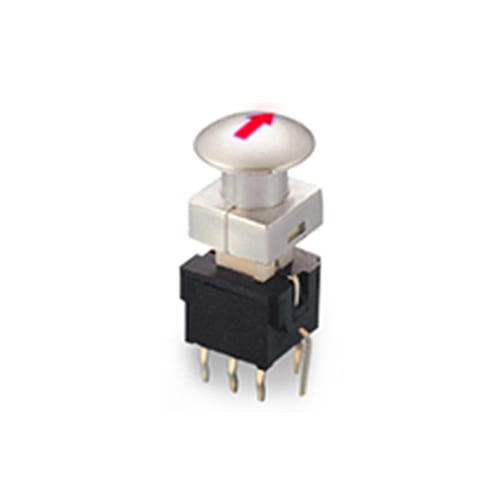

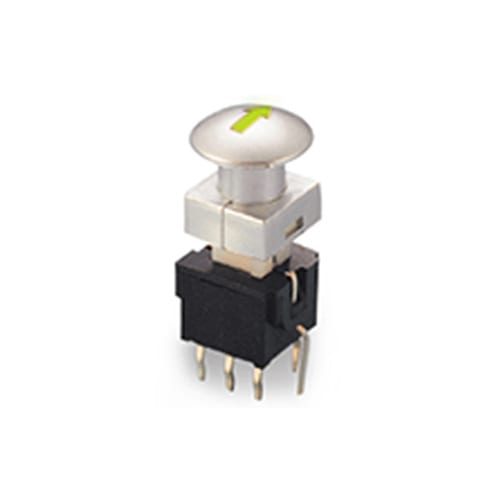

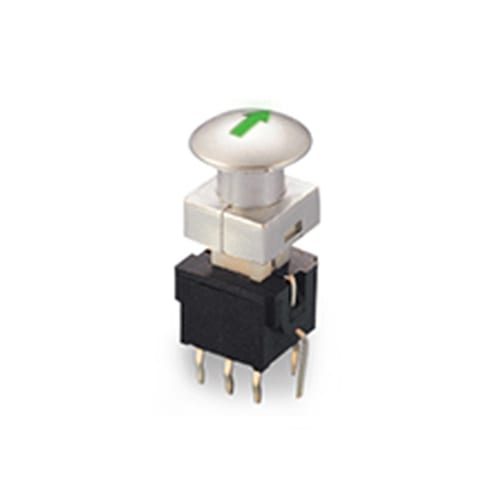

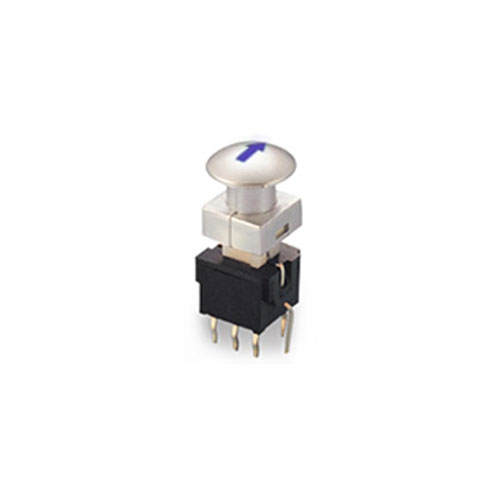

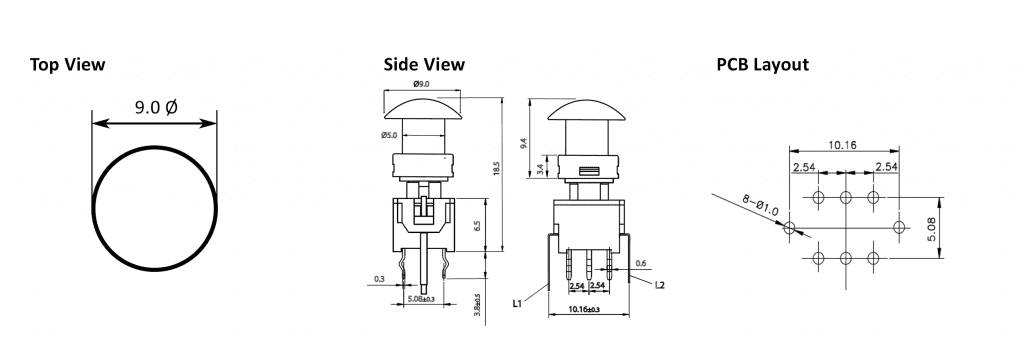

PB61305

Push button comes equipped with LED illumination – single or bi-colour available. Select from momentary or latching depending on your requirements.

Key Features:

Switch height – 18.5mm
PCB mounting – THT
Switch circuit – DPDT (8 pin)
Momentary function
Illuminated & non-illuminated options
Mushroom shaped cap
Cap legends available

Product Series	TP613 / PB613
Configuration	2NO2NC (DPDT)
Illumination	Full Illumination
Single LED options	Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow
Cap Dimensions (mm)	9
Cap / Actuator Shape	Mushroom, Round
Terminal Options	PCB Terminals (THT)
Orientation	Straight (Vertical)
# NC Contacts	1, 2
# NO Contacts	1, 2
Function	Push Button Switch

PB613 Series Specification
Rating	0.1A 30VDC
Insulation Resistance	100MΩ Min (at 500VDC)
Dielectric Strength	AC 500V (50/60 Hz for 1 minute)
Contact Resistance	50mΩ Max. (Initial)
Electrical Life	10,000 Cycles Min
Ambient Temperature	-10°c~ +80°c
Operating Force	150 + 100gf (Momentary)
	250 + 100gf (Alternate)
	200 + 100gf (Momentary with click)
