PB6136F

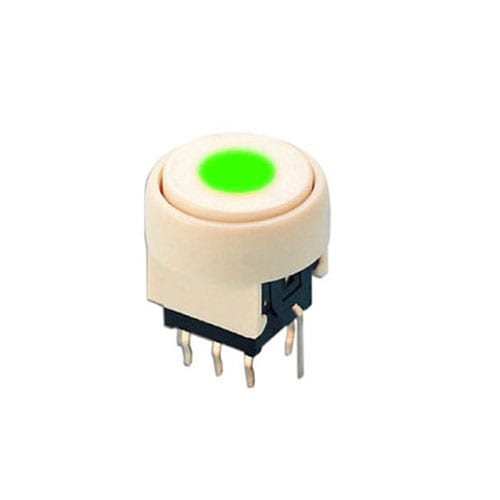

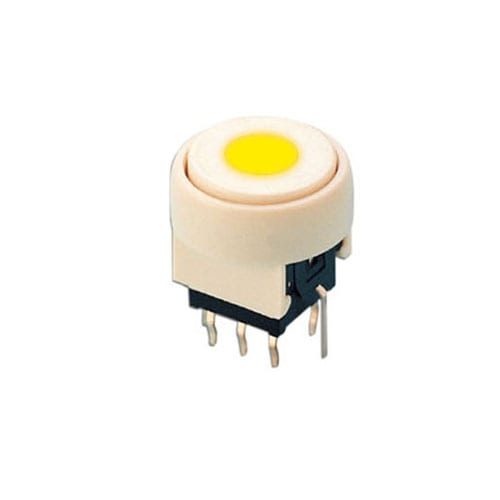

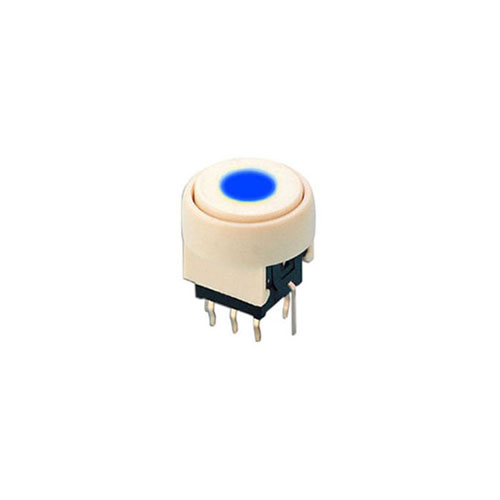

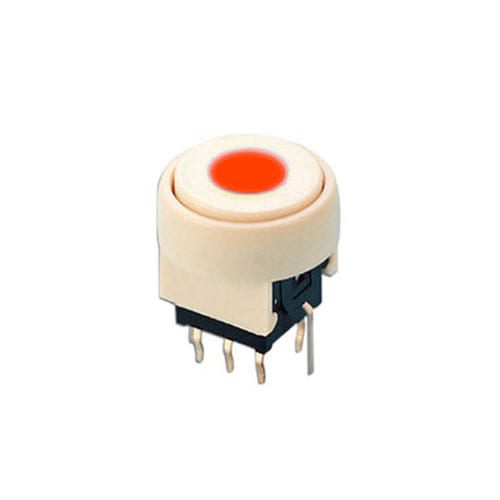

Dot LED illuminated PCB button – single or bi-colour available. Choose from momentary or latching function.

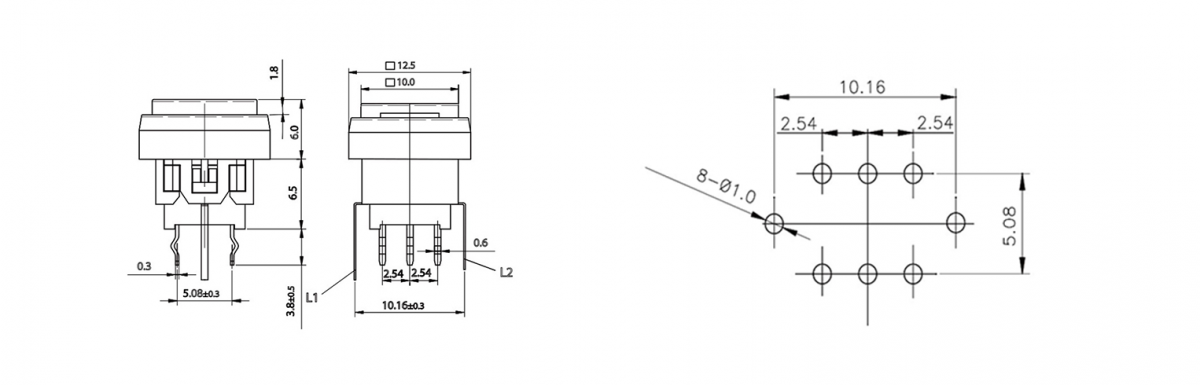

Key Features:

PCB mounting – THT
Switch circuit – DPDT (8 pin)
Momentary function / latching function
Illuminated & non-illuminated options
Round button with frame

Product Series	TP613 / PB613
Configuration	2NO2NC (DPDT)
Illumination	Full Illumination
Single LED options	Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow
Cap Dimensions (mm)	10
Function	Push Button Switch, Momentary Switch

PB613 Series Specification
Rating	0.1A 30VDC
Insulation Resistance	100MΩ Min (at 500VDC)
Dielectric Strength	AC 500V (50/60 Hz for 1 minute)
Contact Resistance	50mΩ Max. (Initial)
Electrical Life	10,000 Cycles Min
Ambient Temperature	-10°c~ +80°c
Operating Force	150 + 100gf (Momentary)
	250 + 100gf (Alternate)
	200 + 100gf (Momentary with click)
